Rugged Aluminum Utility Trailer | R1016 – 6′ x 10′

Starting at $3,765

Experience the R1016 – 6’x10′ all-aluminum utility trailer, designed for those who demand more. With a GVWR of 2,990# and a 3,500# GAWR per axle, it provides the perfect blend of durability and versatility. The R1016 boasts 10″x32″ smooth aluminum fenders, a 3,500# EZ Lube Axle, and the option to customize with 13″ or 21″ side rails, aluminum tread plate or expanded metal walls, and a bi-fold ramp, non-bifold, or tailgate. Tailor your trailer further by selecting from our range of accessories and upfits.
Priced at just $3,765, the R1016 is not only a rugged companion but also an exceptional investment. And with our RuggedDirect delivery service, you receive your tailor-made trailer directly, no hassle involved. Choose the R1016, and discover a trailer that truly meets your needs. With Rugged Trailers, you’re not only getting the best trailer and value for your dollar, but you are getting the exact trailer you want and need.
Standard Size GVWR Rating Trailer Weight Trailer Payload
6′ x 10′ 2,990# 716# 2,274#

Key Features:

  • All Aluminum Construction
  • Heavy Duty 4”x2”x3/16” Tubular Frame
  • 15” Aluminum Tires / Radial Tires
  • Aluminum Decking Standard
  • Dexter TourFlex Axles
  • Optronics L.E.D. Lights.
  • Sold Manufacturer Direct
Build Your Trailer
SPECIFICATIONS
FEATURES
VIDEO
INSTANT QUOTE

SPECIFICATIONS

G.V.W.R. 2,990#
G.A.W.R. (Ea. Axle) 3,500#
Coupler 2″ A-Frame
Safety Chains Curt Single Hook Cable (2 ea)
Jacks 1,200# Top Wind
Tongue 4″ x 2″ x 3/16″ Tubular
Frame 4″ x 2″ x 3/16″ Tubular
Crossmembers 4″ x 2″ x 3/16″ Tubular
Fenders 10″ x 32″ Smooth Aluminum
Axles Single 3,500# EZ Lube Axle
Suspension Torsion / Torflex
Tire ST205/75R-15 Belted Radial
Wheel 15″ x 5″ Aluminum 5-Star
Floor Custom Aluminum Extrusion
Lights Optronics L.E.D.
Elec. Plug 4-Way Flat
Finish  Natural Aluminum
Brakes Optional
Request A Free Quote

FEATURES & OPTIONS

Standard Features ()
Tie Down ()
Ramp Options ()
Add Ons ()
Side Rail Options ()

Torsion Axles

Dexter Torflex (optional brakes)...

LED Lighting

Best in class Optronics LED...

Fender

Standard 10" Aluminum Fender...

Safety Cables

High-Quality Shielded Cable...

Aluminum Decking

Reinforce Box Beam...

Aluminum Wheels

15" Wheels & Radial Tires...

L Track

4ea. 24" Strips of Aircraft Style Tie Down...

Flush Mount

Recessed Into The Aluminum Decking...

Frame Extrusion Tie Down

Built Right Into Trailer Frame...

L Track Dot

Aircraft Style Single Point Tie Down...

48″ Ramp

Full Height AirFlow Ramp...

48″ Stow-Away

Slides Right Under the Trailer Decking...

Bi-Fold Ramp

48" Ramp with Unique Auto-Latch Feature...

Tailgate

Unique Auto-Latch Feature Included...

Stake Pockets

15″ Aluminum Spare Tire

Track & Cross Bar

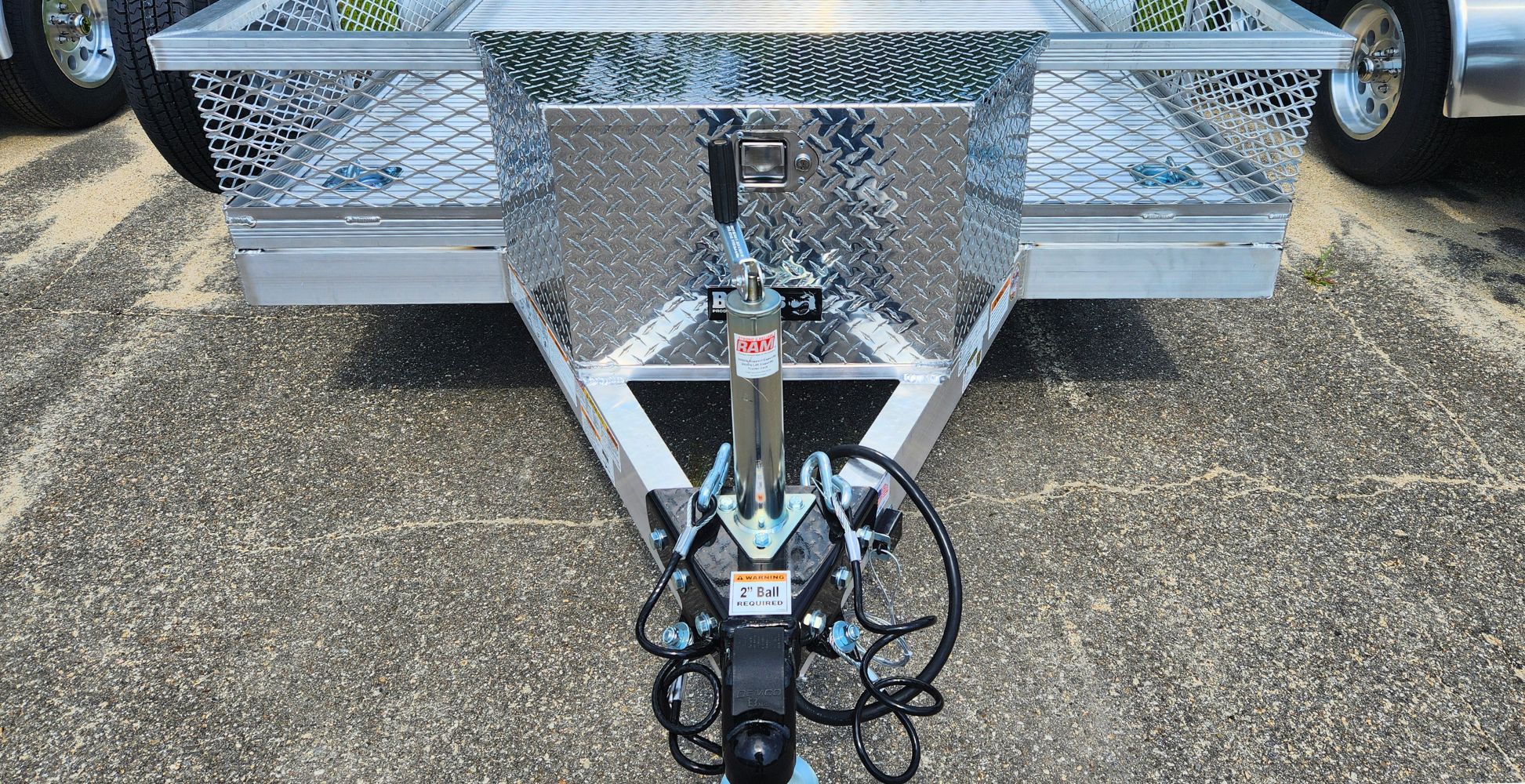

Tongue Box

Side Jack Upgrade

21″ Side Rail

Front Rail

21″ Side Rail w/ Aluminum Tread Plate

21″ Side Rail w/ Expanded Metal

13″ Side Rail w/ Expanded Metal

13″ Side Rail

VIDEO

BUILD YOUR TRAILER QUOTE

GET STARTED

0$

Thanks, we will contact you soon

Choose the Right Size for Your Trailer

5' x 8' - $3,375

5' X 10' - $3,530

6' X 10' - $3,765

6' X 12' - $3,940

6' X 14' - $4,115

6.5' X 12' - $4,115

6.5' X 14' - $4,310

6.5' X 12' (Tandem Axle) - $6,030

6.5' X 14' (Tandem Axle) - $6,310

6.5' X 16' (Tandem Axle) - $6,585

6.5' X 18' (Tandem Axle) - $6,885

You need to select an item to continue
NEXT STEP

5' x 8' Side Rail & Wall Options

13" Side Rail - $620

13" Side Rail w/ Expanded Metal - $1,075

13" Rails w/ Aluminum Tread Plate - $1,075

21" Side Rail - $650

21" Side Rail w/ Expanded Metal - $1,150

21" Rails w/ Aluminum Tread Plate - $1,150

Low Front Only - $230

Stone Guard - $490

No Side Rail - $0

You need to select an item to continue
NEXT STEP

5' Wide Trailer Ramp & Tailgate Options

48" Bi-Fold Ramp - $560

48" Non Bi-Fold - $365

Tailgate - $355

No Ramp - $0

You need to select an item to continue
NEXT STEP

Add Ons & Accessories

15" Matching Aluminum Spare & Mount - $279.00

- +
1

D-Ring Tie Down - $28.00 ea.

Frame Extrusion "Cut-In" Tie Downs - $240.00

Side Jack Upgrade - $63.00

Tongue Box - $535.00

Top Rail Track & Cross Bars - $640.00

Stake Pockets - $385.00

L Track Strip (4ea. @ 20") - $290.00

Tarp Kit with ATP Housing - $775.00

13" Matching Aluminum Spare & Mount - $249.00

Single Axle Brake Upgrade - $540.00

You need to select an item to continue
NEXT STEP

5' x 10' Side Rail & Wall Options

13" Side Rail - $635

13" Side Rail with Expanded Metal - $1,100

13" Rails w/ Aluminum Tread Plate - $1,100

21" Side Rail - $665

21" Side Rail w/ Expanded - $1,175

21" Rails w/ Aluminum Tread Plate - $1,175

Low Front Only - $230

No Side Rail - $0

Stone Guard - $490

You need to select an item to continue
NEXT STEP

6' x 10' Side Rail & Wall Options

13" Side Rail - $645

13" Side Rail w/ Expanded Metal - $1,100

13" Rails w/ Aluminum Tread Plate - $1,100

21" Side Rail - $675

21" Side Rail w/ Expanded Metal - $1,200

21" Rails w/ Aluminum Tread Plate - $1,200

Low Front Only - $260

No Side Rail - $0

Stone Guard - $590

You need to select an item to continue
NEXT STEP

6' x 12' Side Rail & Wall Options

13" Side Rail - $655

13" Side Rail w/ Expanded Metal - $1,125

13" Rails w/ Aluminum Tread Plate - $1,125

21" Side Rail - $685

21" Side Rail w/ Expanded Metal - $1,225

21" Rails w/ Aluminum Tread Plate - $1,225

Low Front Only - $260

No Side Rail - $0

Stone Guard - $590

You need to select an item to continue
NEXT STEP

6.5' x 12' Side Rail & Wall Options

13" Side Rail - $675

13" Side Rail w/ Expanded Metal - $1,150

13" Rails w/ Aluminum Tread Plate - $1,150

21" Side Rail - $705

21" Side Rail w/ Expanded Metal - $1,245

21" Rails w/ Aluminum Tread Plate - $1,245

Low Front Only - $285

No Side Rail - $0

Stone Guard - $690

You need to select an item to continue
NEXT STEP

6.5' x 14' Side Rail & Wall Options (Tandem Axle)

13" Side Rail - $685

13" Side Rail w/ Expanded Metal - $1,200

13" Rails w/ Aluminum Tread Plate - $1200

21" Side Rail - $715

21" Side Rail w/ Expanded Metal - $1,295

21" Rails w/ Aluminum Tread Plate - $1,295

Low Front Only - $285

No Side Rail - $0

Stone Guard - $690

You need to select an item to continue
NEXT STEP

6' Wide Trailer Ramp & Tailgate Options

48" Bi-Fold Ramp - $615

48" Non Bi-Fold - $385

Tailgate - $385

48" Stow-a-way Ramp - $770

No Ramp - $0

You need to select an item to continue
NEXT STEP

6.5' Wide Trailer Ramp & Tailgate Options

48" Bi-Fold Ramp - $645

48" Non Bi-Fold - $415

48" Stow-a-way Ramp - $800

Tailgate - $405

No Ramp - $0

You need to select an item to continue
NEXT STEP

6' x 14' Side Rail & Wall Options

13" Side Rail - $665

13" Side Rail w/ Expanded Metal - $1,150

13" Rails w/ Aluminum Tread Plate - $1,150

21" Side Rail - $695

21" Side Rail w/ Expanded Metal - $1,245

21" Rails w/ Aluminum Tread Plate - $1,245

Low Front Only - $260

No Side Rail - $0

Stone Guard - $590

You need to select an item to continue
NEXT STEP

6.5' x 16' Side Rail & Wall Options (Tandem Axle)

13" Side Rail - $695

13" Side Rail w/ Expanded Metal - $1,245

13" Rails w/ Aluminum Tread Plate - $1,245

21" Side Rail - $725

21" Side Rail w/ Expanded Metal - $1,345

21" Rails w/ Aluminum Tread Plate - $1,345

Low Front Only - $285

No Side Rail

Stone Guard - $690

You need to select an item to continue
NEXT STEP

Pick Up or Delivery

Deliver To My Driveway

Yes it really is that easy. Dropped right in your driveway for a reasonable destination fee.

Pick Up @ Factory

If you're in the Northeast, you are welcome to pick up at our facility - 11 Friars Drive - Hudson, NH

You need to select an item to continue
NEXT STEP

Delivery Address

We'll drop it right in your driveway. Yes, it's that easy!

Street, City, State

You need to select an item to continue
NEXT STEP

Contact Information

- +
550
You need to select an item to continue
NEXT STEP

Tell us a little about you.

You need to select an item to continue
NEXT STEP

6.5' x 14' Side Rail & Wall Options

13" Side Rail - $685

13" Side Rail w/ Expanded Metal - $1,200

13" Rails w/ Aluminum Tread Plate - $1,200

21" Side Rail - $715

21" Side Rail w/ Expanded Metal - $1,295

21" Rails w/ Aluminum Tread Plate - $1,295

Low Front Only - $285

No Side Rail - $0

Stone Guard - $690

You need to select an item to continue
NEXT STEP

6.5' x 12' Side Rail & Wall Options (Tandem Axle)

13" Side Rail - $675

13" Side Rail w/ Expanded Metal - $1,150

13" Rails w/ Aluminum Tread Plate - $1,150

21" Side Rail - $705

21" Side Rail w/ Expanded Metal - $1,245

21" Rails w/ Aluminum Tread Plate - $1,245

Low Front Only - $285

No Side Rail - $0

Stone Guard - $690

You need to select an item to continue
NEXT STEP

6.5' x 18' Side Rail & Wall Options (Tandem Axle)

13" Side Rail - $705

13" Side Rail w/ Expanded Metal - $1,300

13" Rails w/ Aluminum Tread Plate - $1,300

21" Side Rail - $735

21" Side Rail w/ Expanded Metal - $1,395

21" Rails w/ Aluminum Tread Plate - $1,395

Low Front Only - $285

No Side Rail

Stone Guard - $690

You need to select an item to continue
NEXT STEP

Trailer Price

Your all in trailer price is :

To proceed with your trailer purchase, please contact us at 603.324.7402 and provide a 25% deposit. For April 2024, the lead time for delivery is estimated to be 2 weeks from the deposit date.
