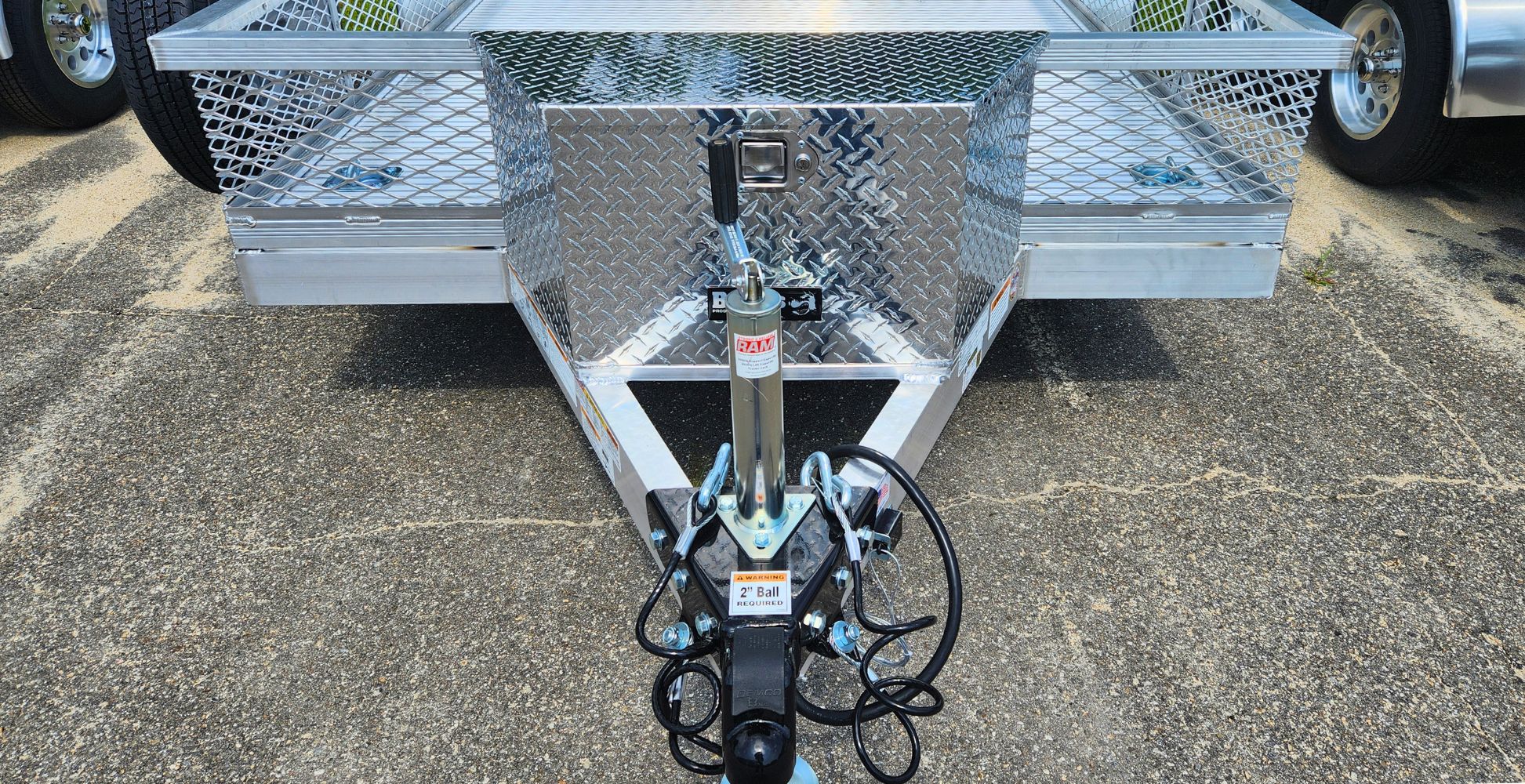

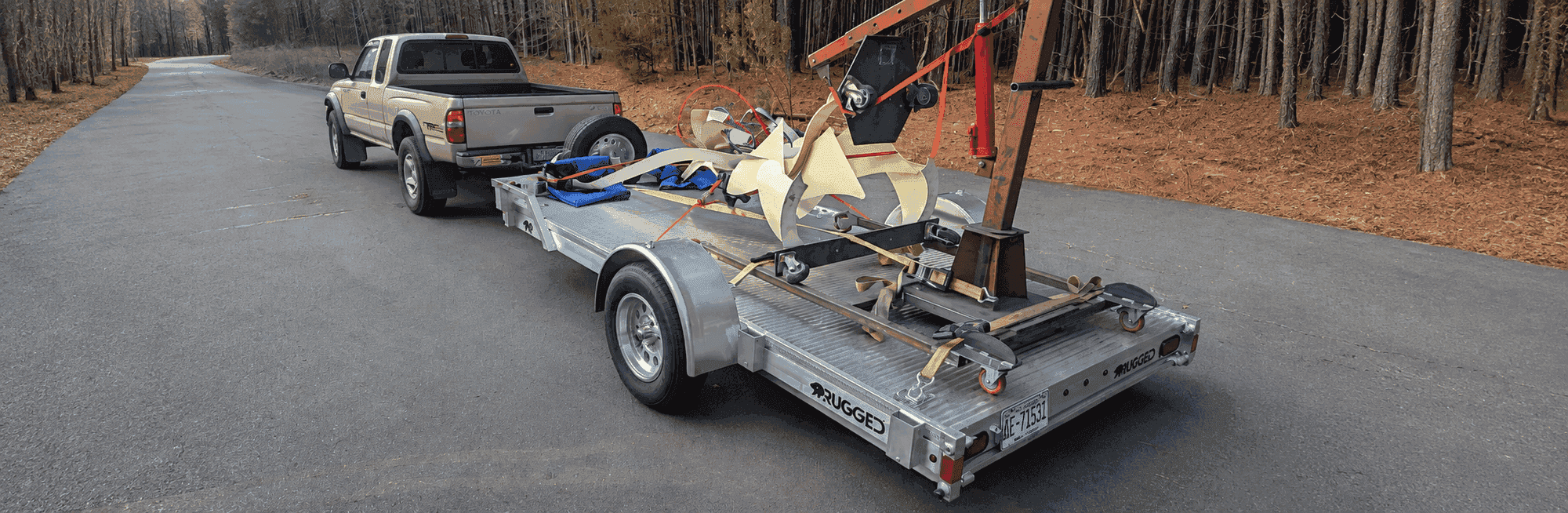

Jeff configured a 6'x12' Rugged with a 21-inch rail, tread-plate floor, ramp, and front box. The finished setup fit his needs, and he found both the buying process and build quality strong.
1 / 3
Real completed build. Options shown may vary.
6 × 12 Open Utility Trailer
Wide enough for a mower, short enough to park in a garage.
- Starting price
- $3,777
Before options and delivery.
Typically ready in about 3 weeks after final-order approval.
Deck size 6' x 12'
Check dimensions- Payload (est.)
- 2,320 lb
- GVWR
- 2,990 lb
Popular setup
$5,595Includes these options:
- 13" Perimeter Rail – 6' x 12'
- 48" Bi-Fold Ramp – Autolatch – 6' Wide
- Swivel D-Ring – Bolt-On (×4)
+ 2 more options in this setup
Before delivery. Every option is editable.
Customize this setup25% order deposit, refundable until you approve the final written Build Order. Full terms
Nothing enters production until you approve the final order.
Five-year structural warrantyNot sure what you need? Call 603.324.7402 or text us.
Have a factory specialist recommend the setup
Add electric brakes for 510 lb more capacity
Enter your ZIP — see your delivered price.
Location lookup by Google Maps. Privacy
Tax and registration: handled in your state — we don't collect them. Details
Built in Hudson, NH50 years in aluminum500+ real builds
Remote-buying confidence
See it before ordering.
Choose the proof you need before starting your order.
Construction
Engineering highlights
A closer look at the frame, deck, and available equipment.
Aluminum frame
A tubular aluminum frame supports the deck and rated running gear.
Weather-ready deck
Interlocking aluminum planks create a weather-resistant loading surface.
AutoLatch option
Available AutoLatch-equipped ramps and tailgates latch automatically when closed.
Independent suspension
Torsion suspension moves independently at each wheel, without leaf-spring hardware.
Accessible hardware
The jack, coupler, and safety cables stay accessible for inspection and service.
15-inch aluminum wheels
15-inch aluminum mod wheels with belted radial tires on 6-foot-and-wider open models.
Design notes & full-size photos

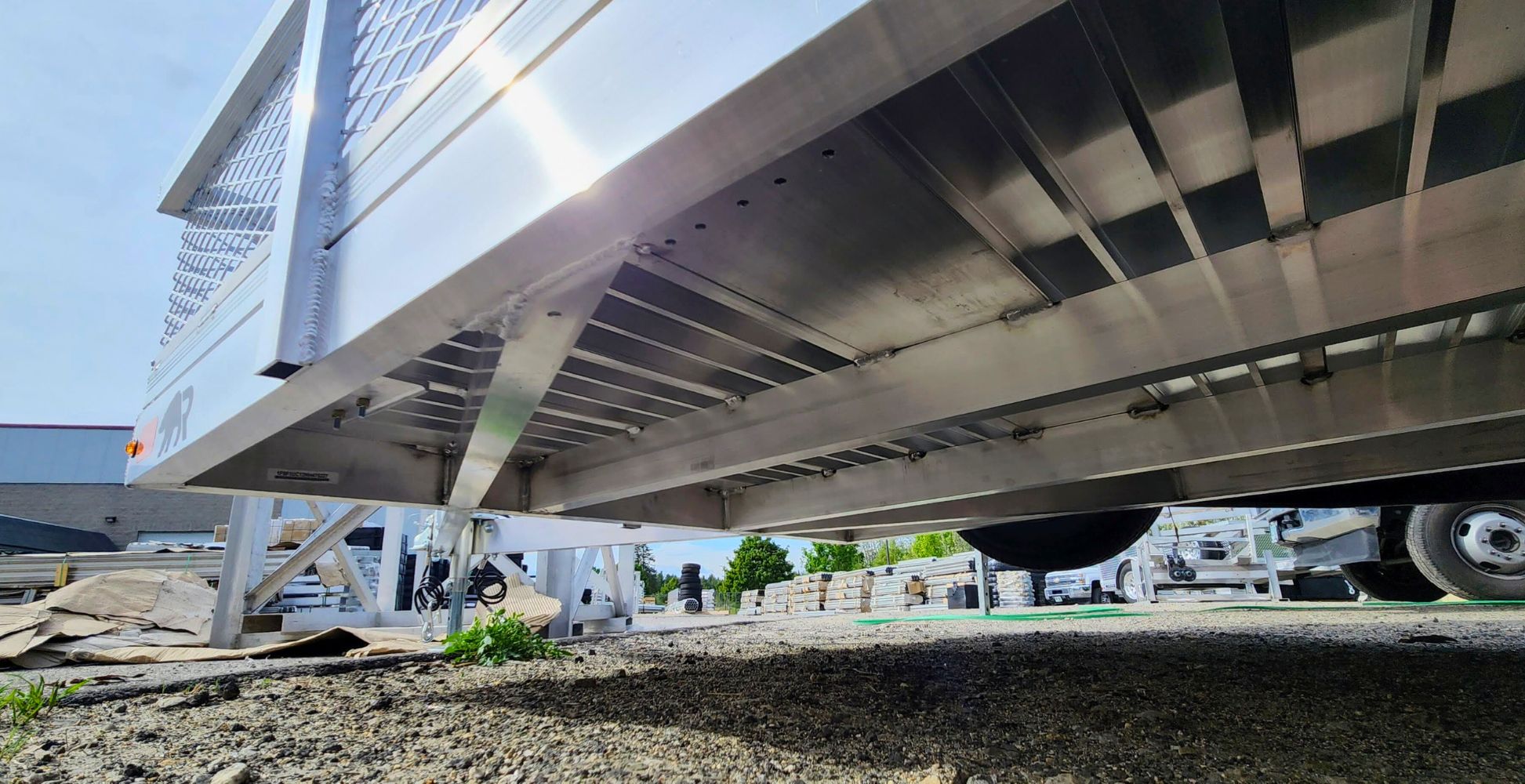

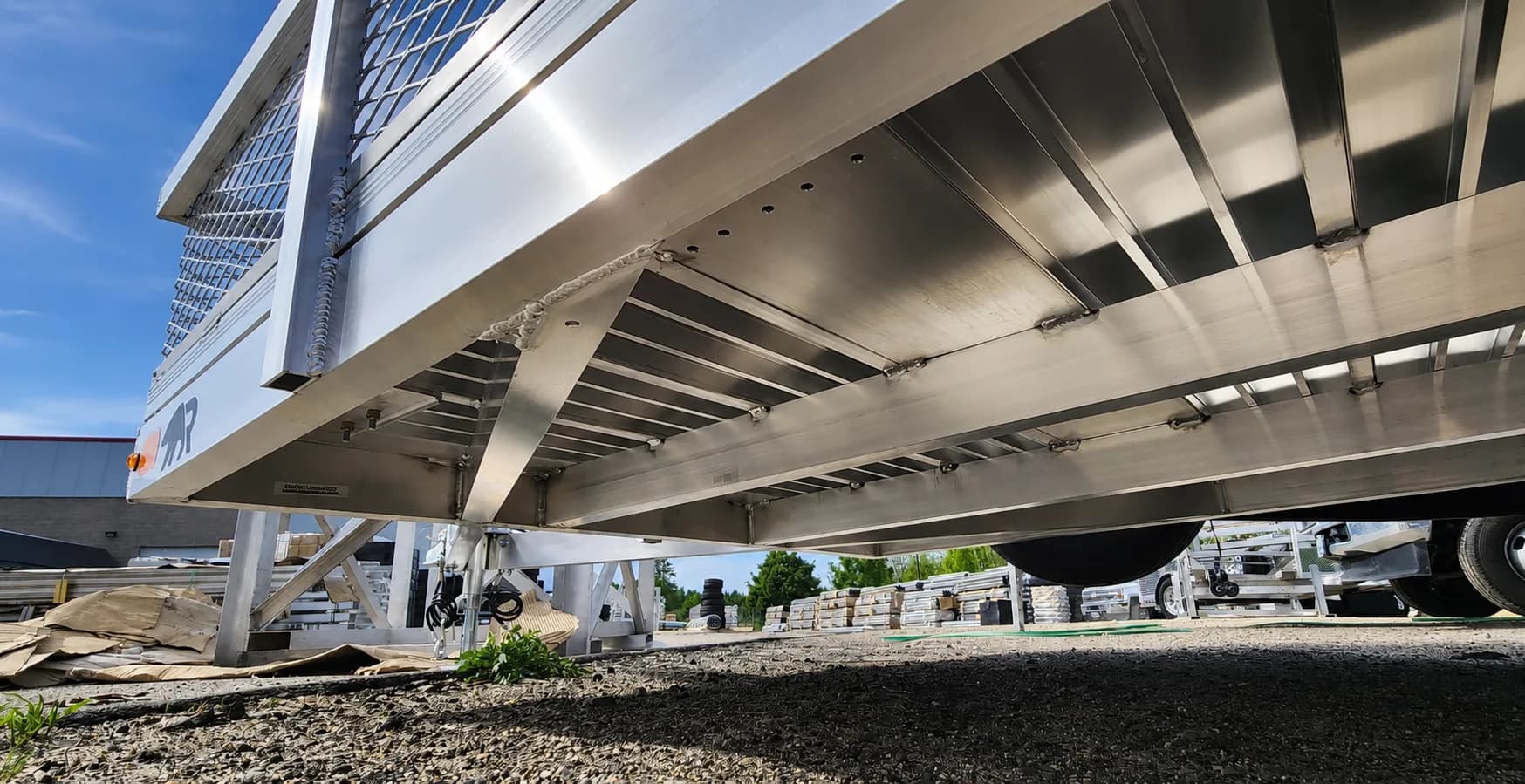

Structure without unnecessary weight
The tubular aluminum frame carries the deck and rated running gear without a painted steel chassis.
4 × 2 × 3/16-inch tubular aluminum

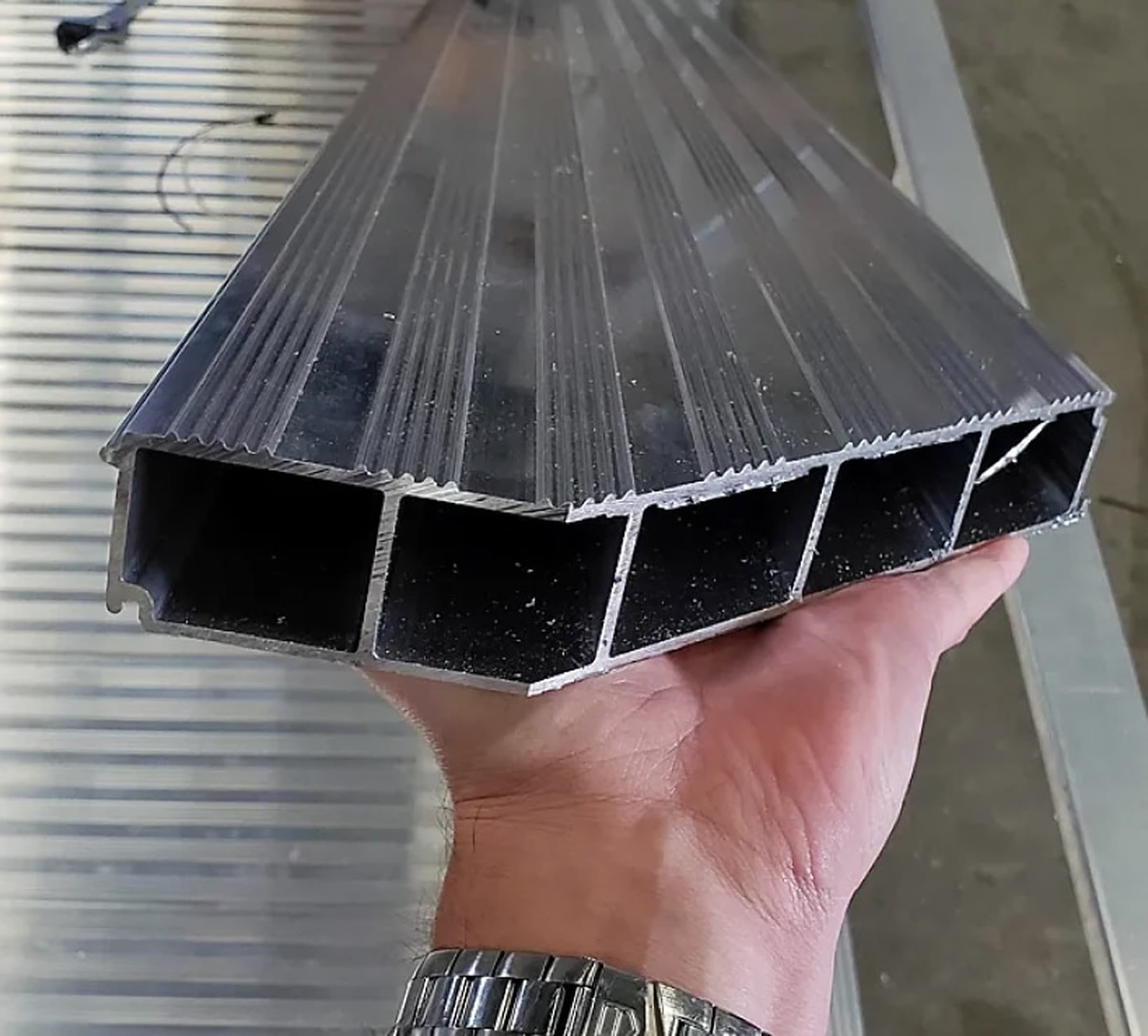

A deck made for the weather
Interlocking aluminum deck extrusions provide a weather-resistant loading surface without wood deck boards.
Custom aluminum extrusion

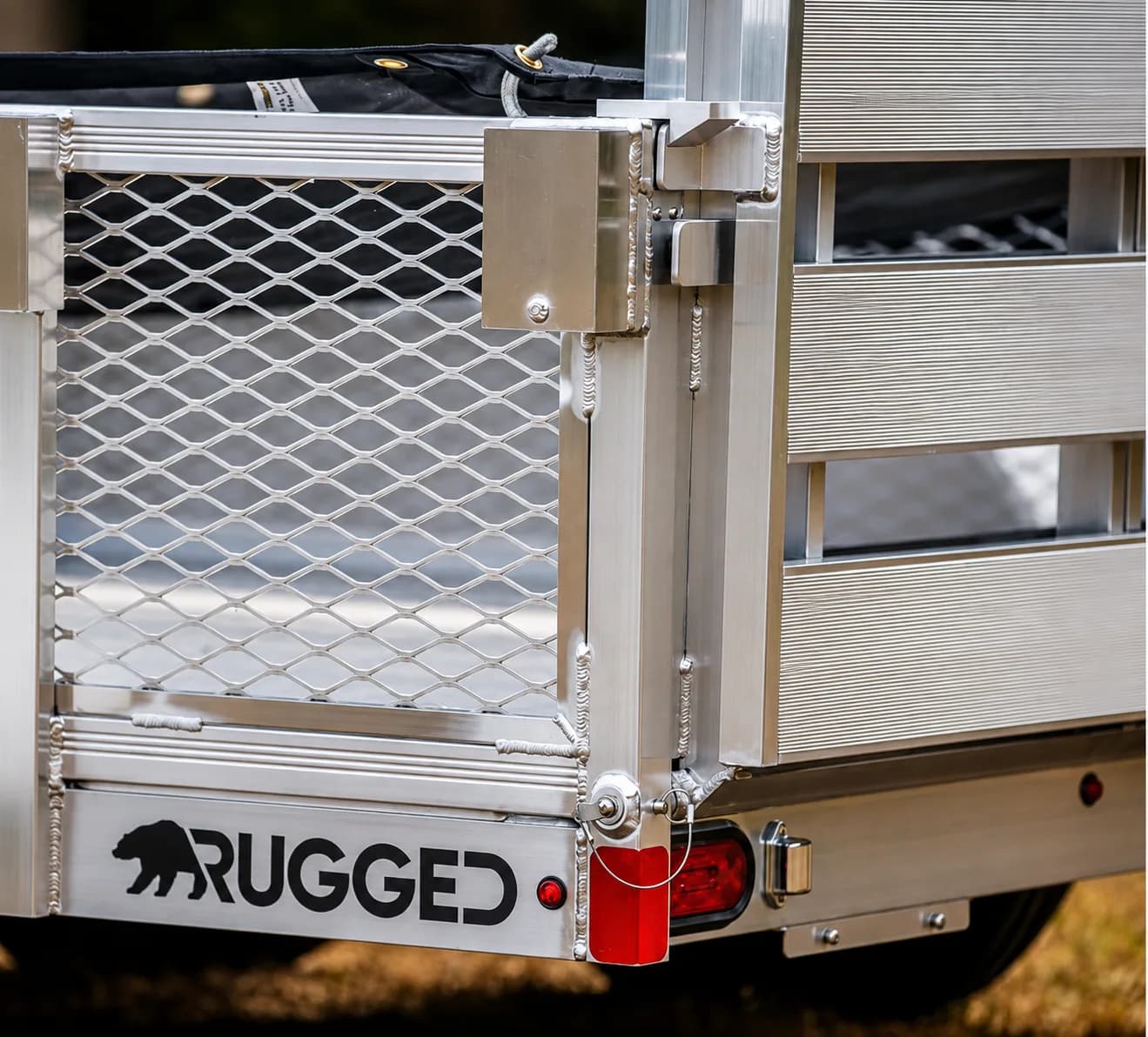

Latched the moment it closes
Available AutoLatch-equipped ramps and tailgates secure automatically on close — no cotter pins or clips to pull, drop, or lose.
Available AutoLatch ramp and tailgate system

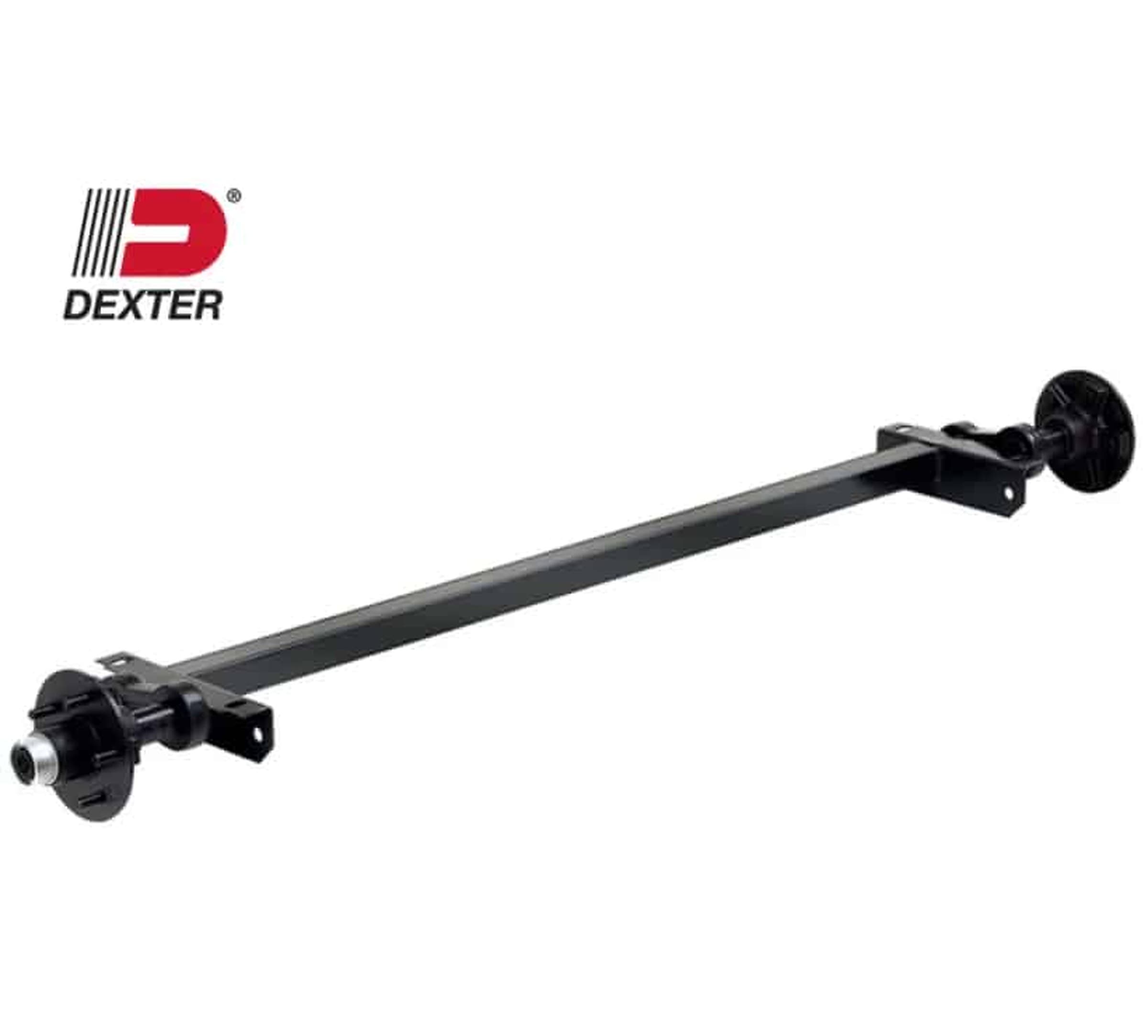

Independent ride control
Torsion suspension moves independently at each wheel and eliminates leaf-spring hardware beneath the deck.
3,500 lb EZ Lube axle · Torsion / Torflex

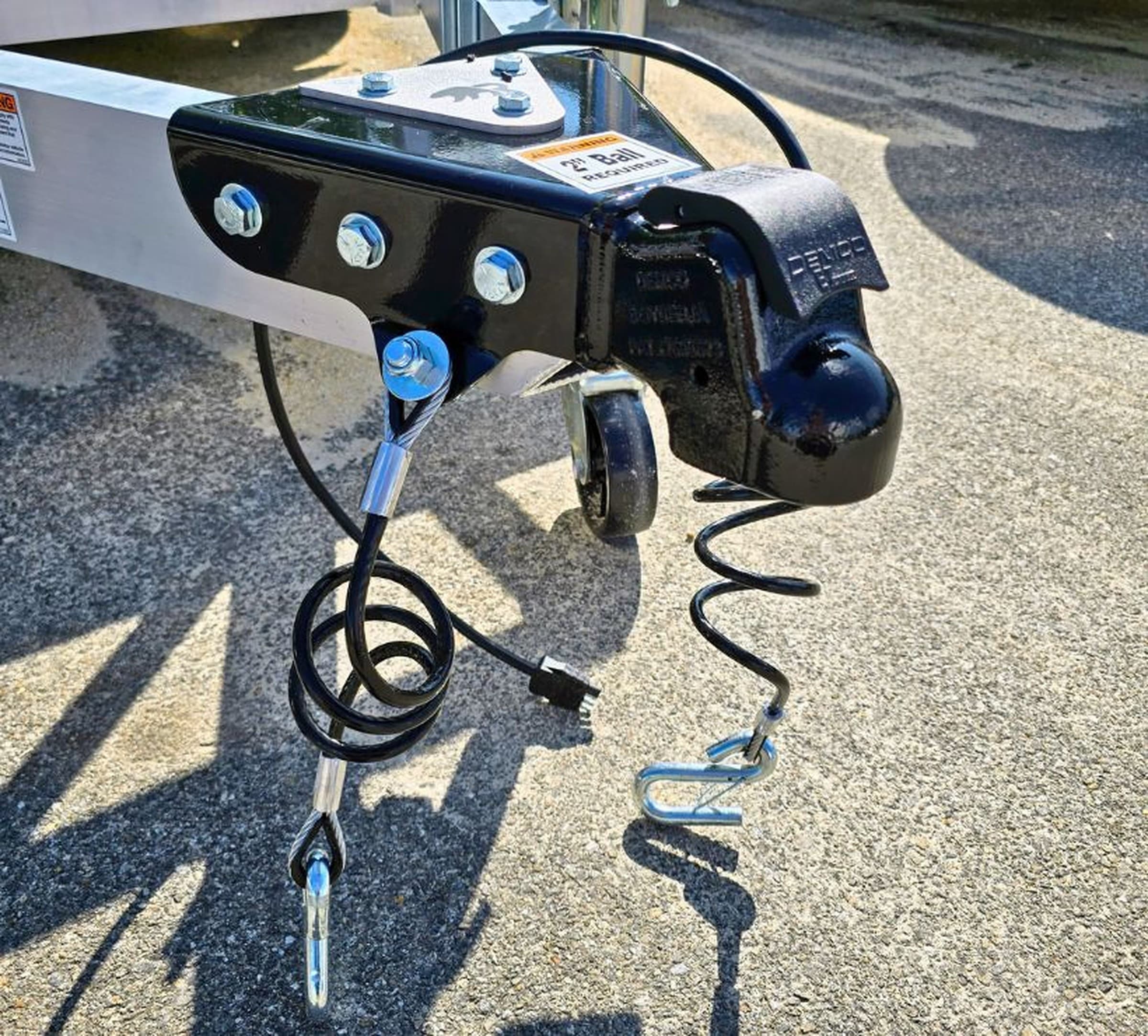

Serviceable where it matters
The bolted jack, standard coupler, and safety cables remain accessible for inspection and service.
3,000 lb top-wind jack · Curt safety cables

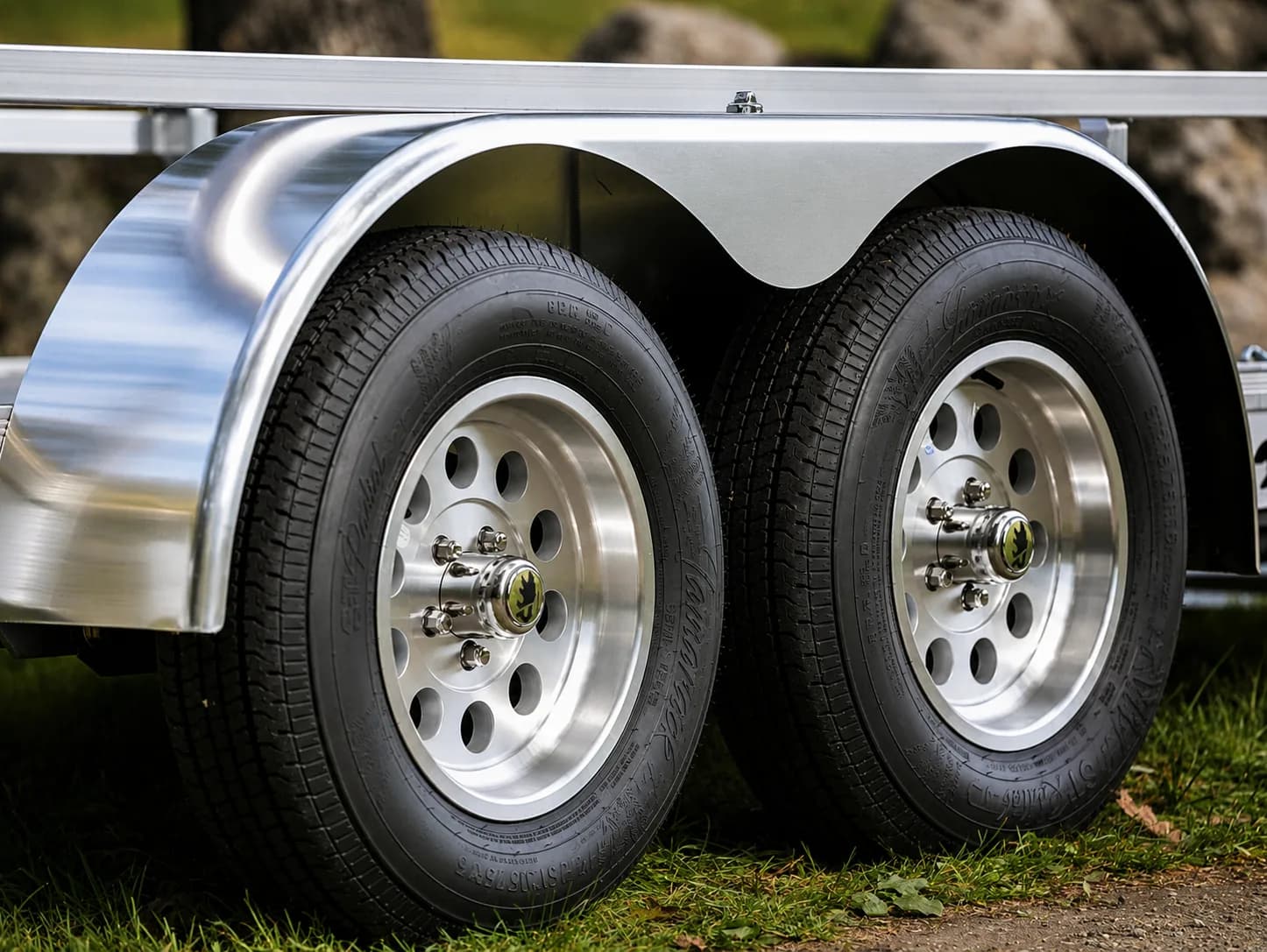

Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
15″ × 6″ aluminum mod wheel · ST205/75R-15
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.
Similar size, real build6.5 x 12 Tandem Axle Trailer
6.5x12 tandem — walk-around
Full walk-around of a completed 6.5x12 tandem-axle utility as it ships.
1:18 · October 2025
- Tandem axles
- All-aluminum frame and deck
Narrated · captions available in the player
All clips
1 of 4
Capacity and specifications
Check the fit
Compare the dimensions and capacity, then open the full specifications for construction and equipment details.
- 15′ 4″
- 94″
- 670 lb
- 2,990 lb
- 2,320 lb
Full specifications
Dimensions & Weight
- Standard Size
- 6' x 12' Single Axle Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 4″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 32″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Single 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- Optional
- Lights
- Optronics L.E.D.
- Electric Plug
- 4-Way Flat
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
2,990 lb GVWR minus 670 lb base trailer weight equals 2,320 lb estimated base payload.
Payload decreases as options are added.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real builds of this model
Three completed examples of this exact model.

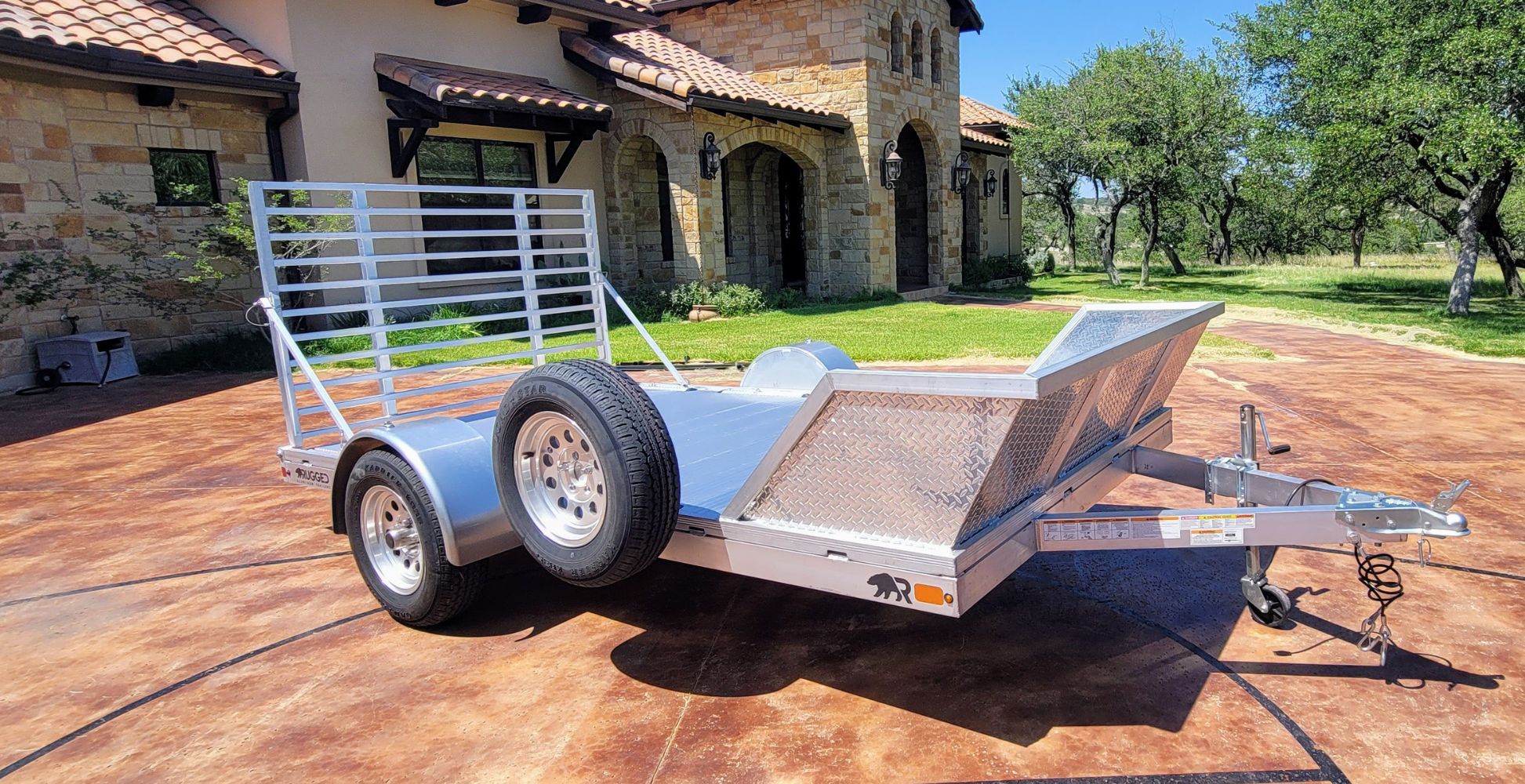

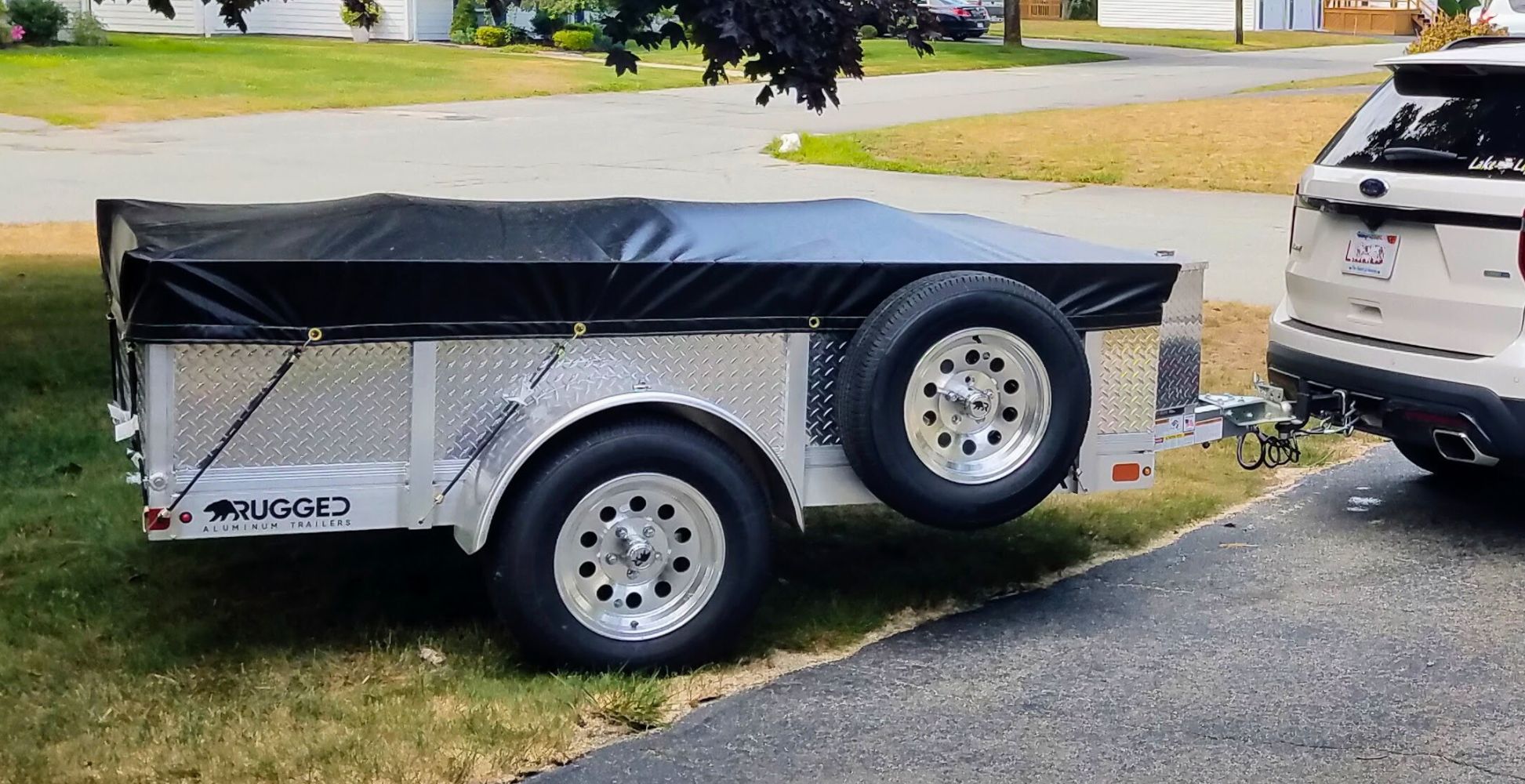

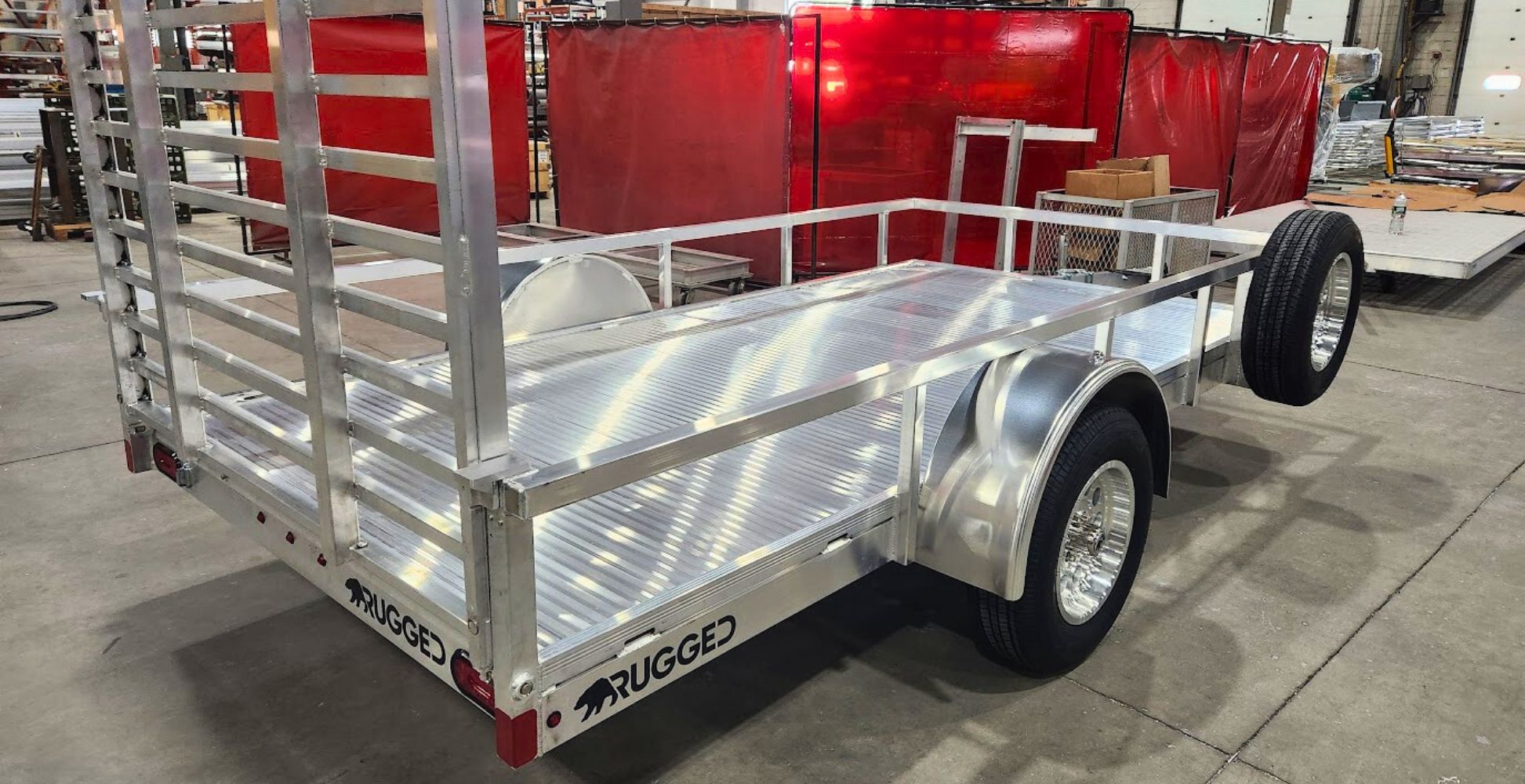

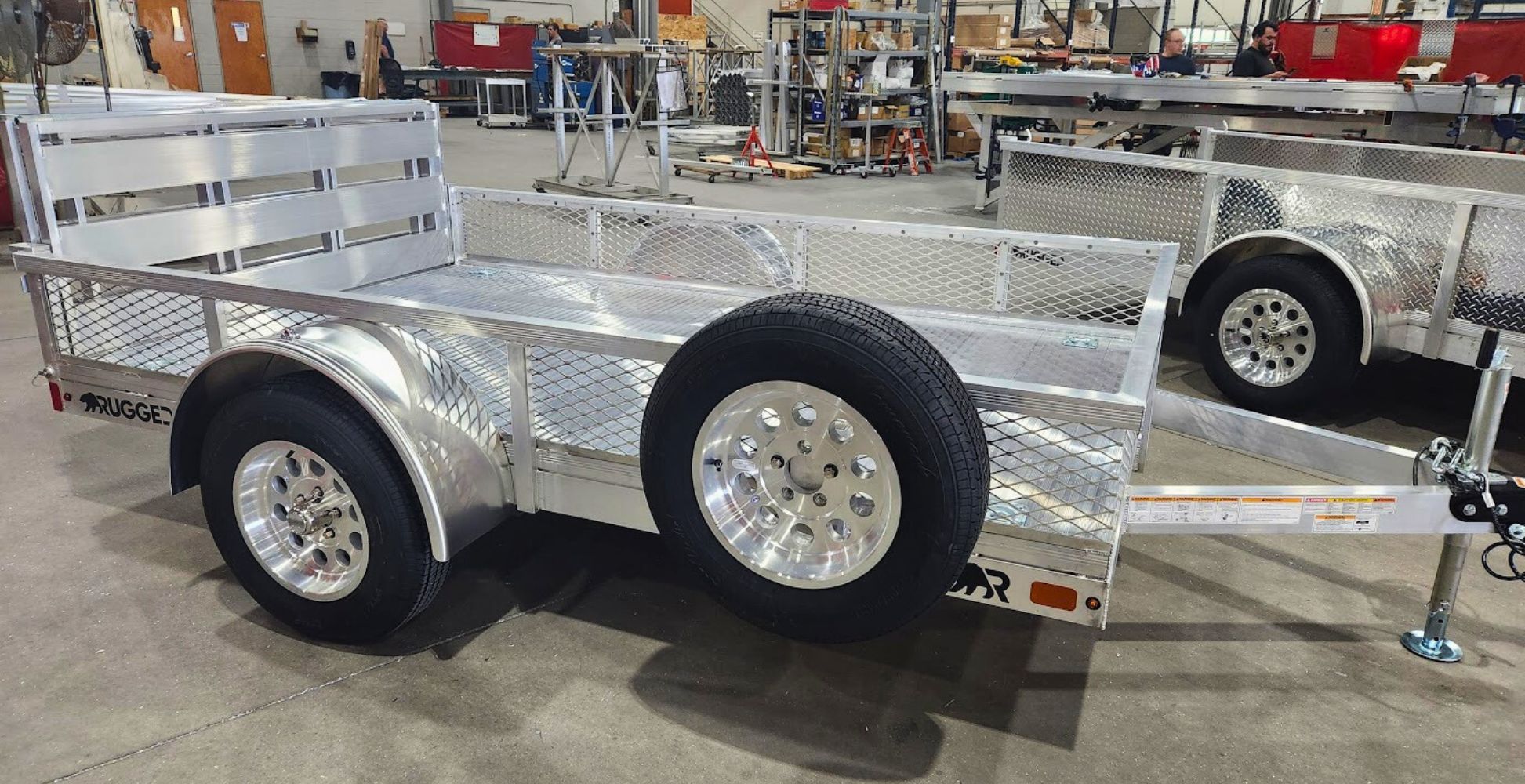

6' x 12' · Utility
6' x 12' Single axle Utility
Trailer & options$6,170Built to order · 25% refundable deposit
6' x 12' · Utility
6' x 12' Single axle Utility
Trailer & options$6,420Built to order · 25% refundable deposit
6' x 12' · Utility
6' x 12' Single axle Utility
Trailer & options$5,615Built to order · 25% refundable deposit
Customer experiences
What Rugged owners share.
Compare the family

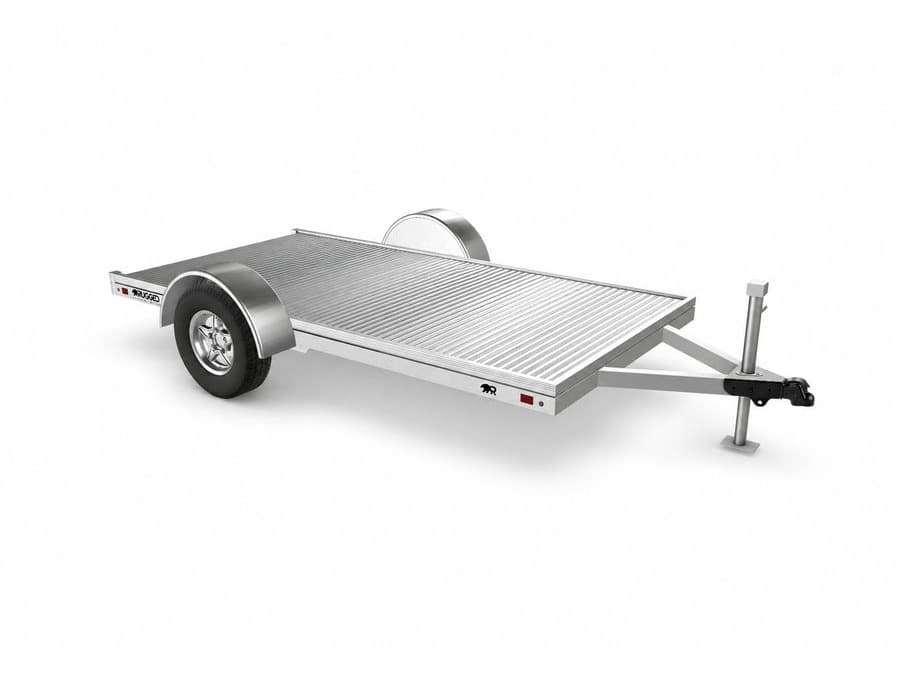

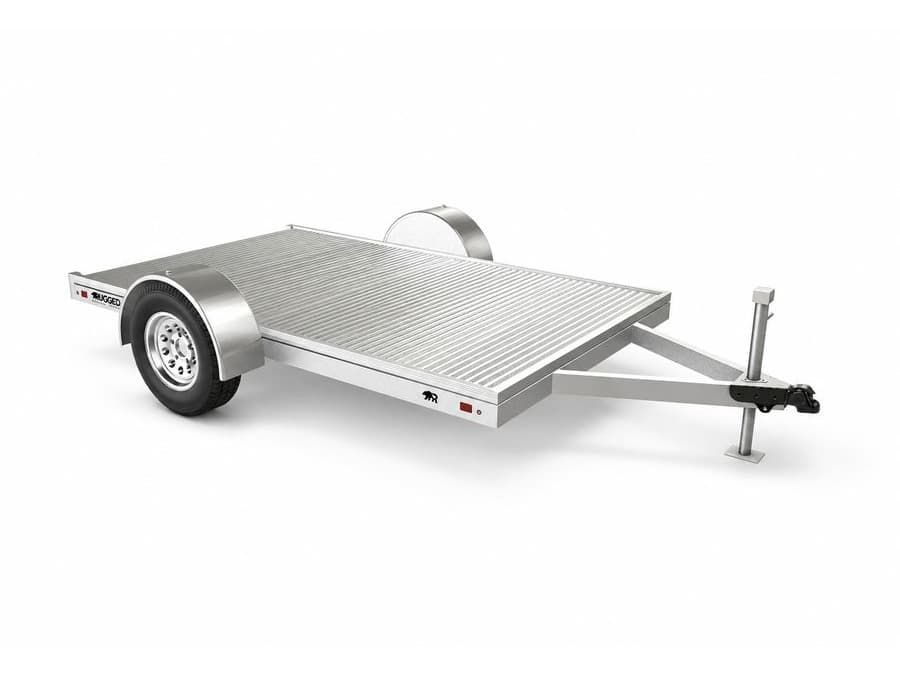

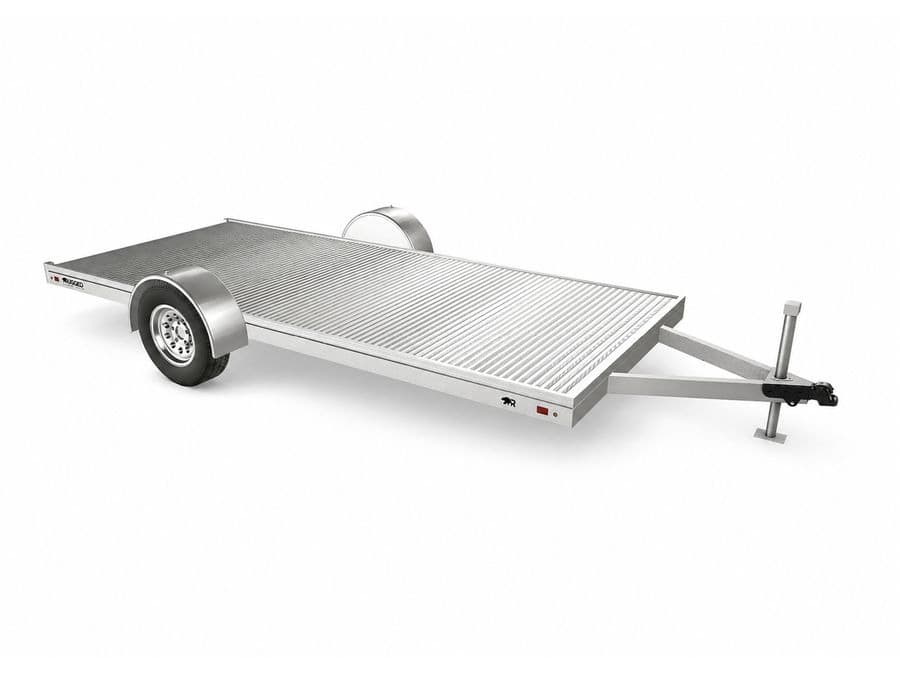

Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6 × 12 Open Utility Trailer
Choose a starting configuration, then adjust every available option and see the current price.
