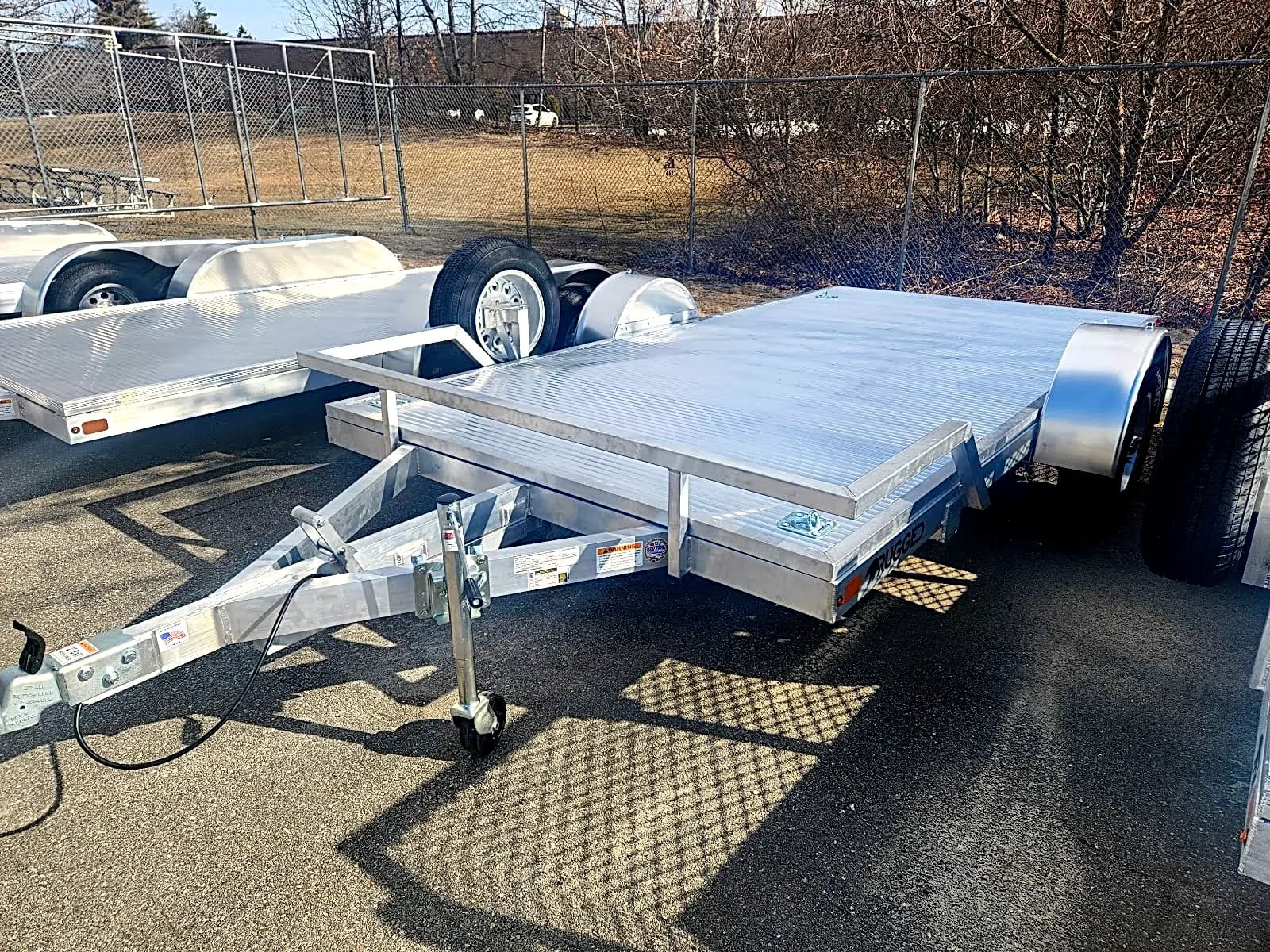

Real Rugged build: 6.5' x 13.5' — Front rail only

Tilt · 6.5' x 13.5' · Low-clearance loading

6.5' x 13.5' — Front rail only

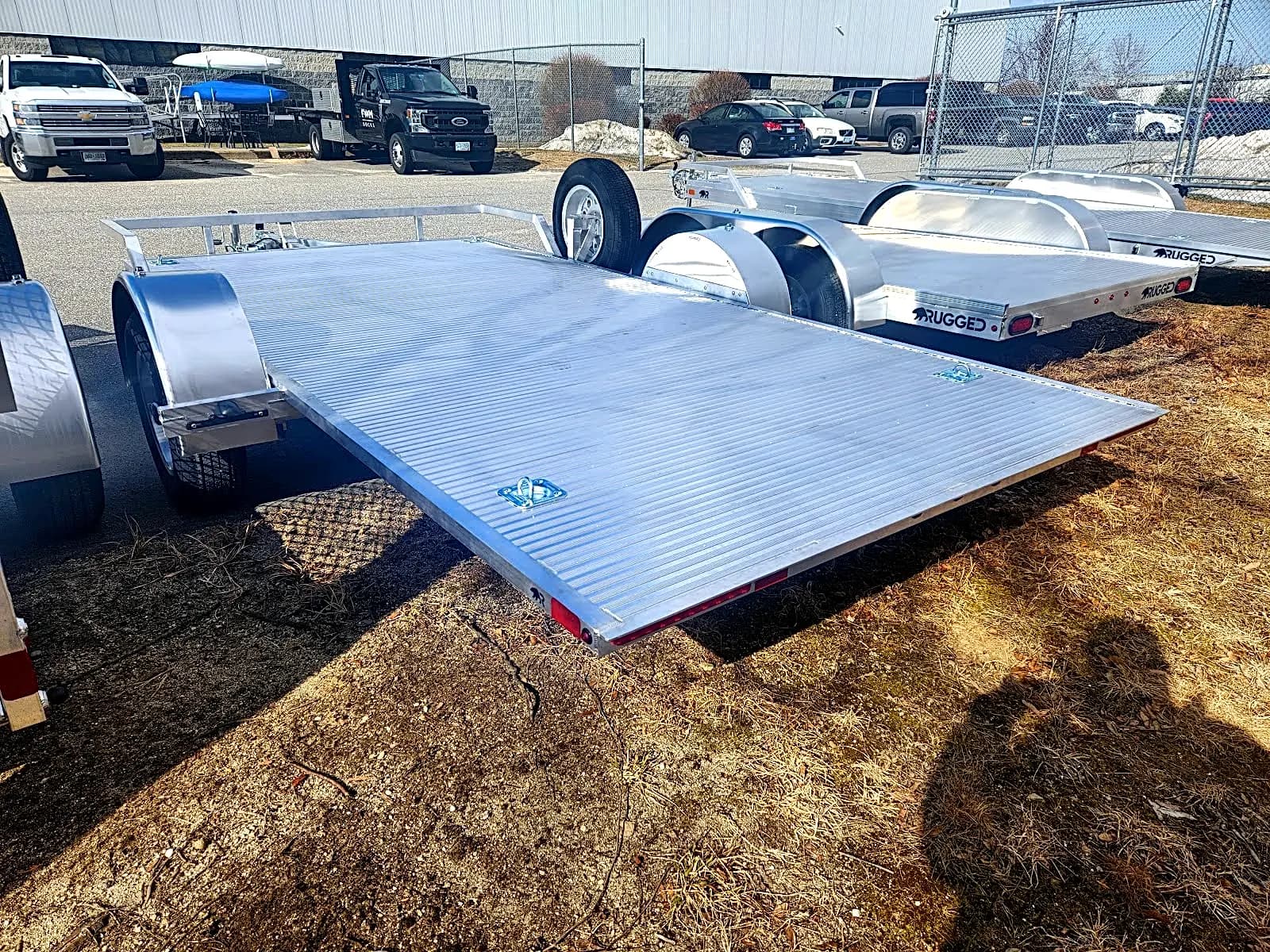

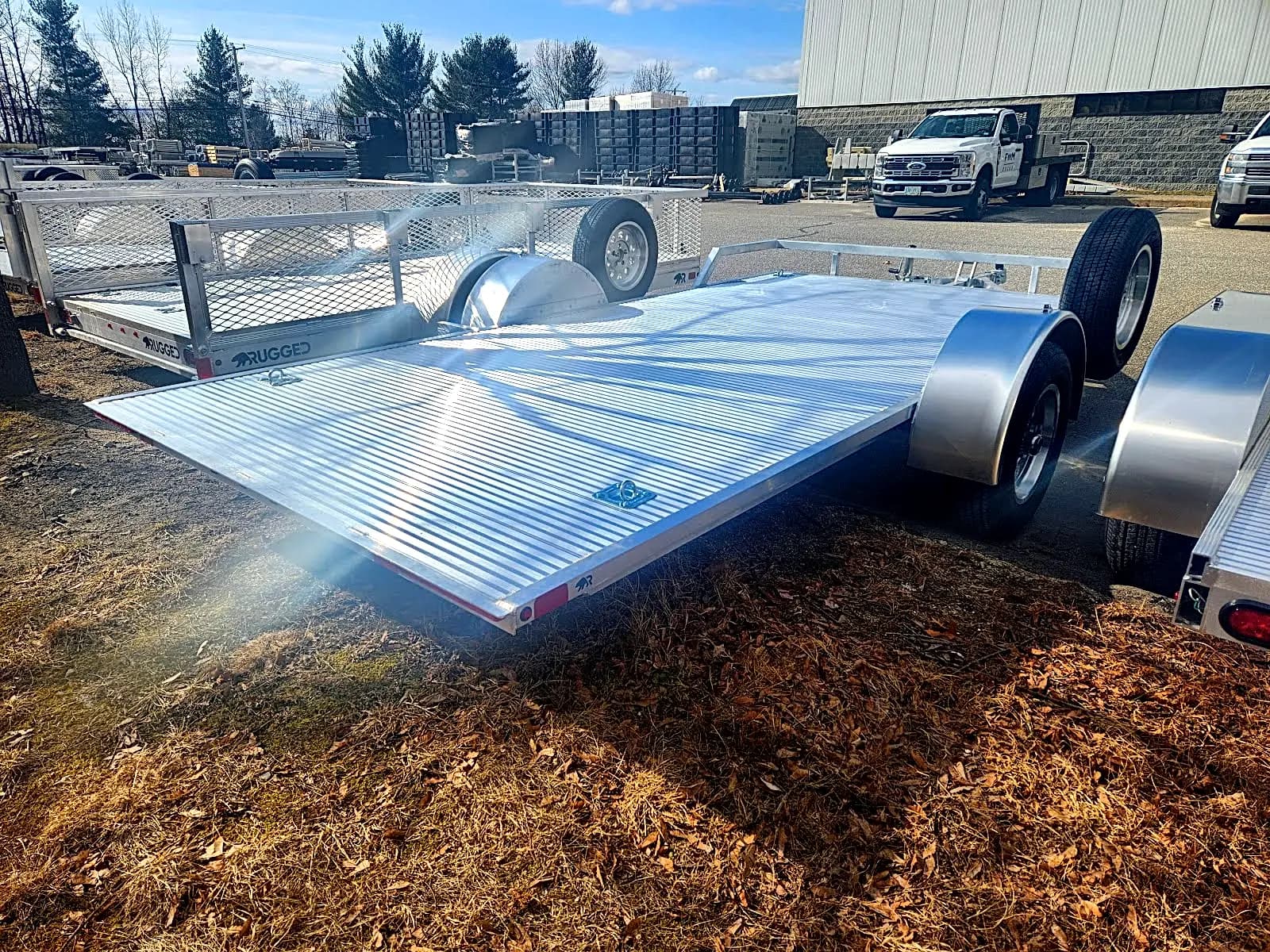

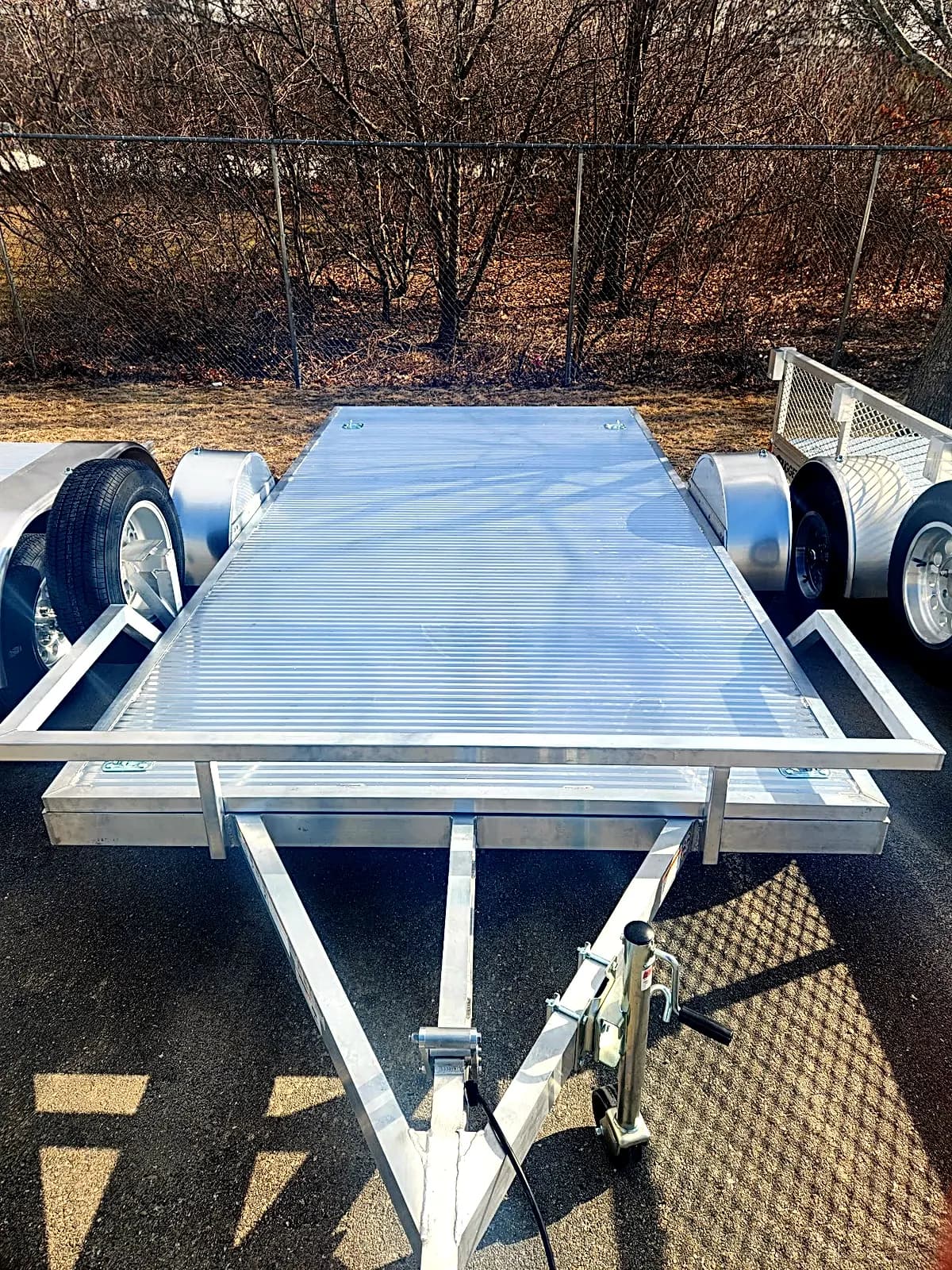

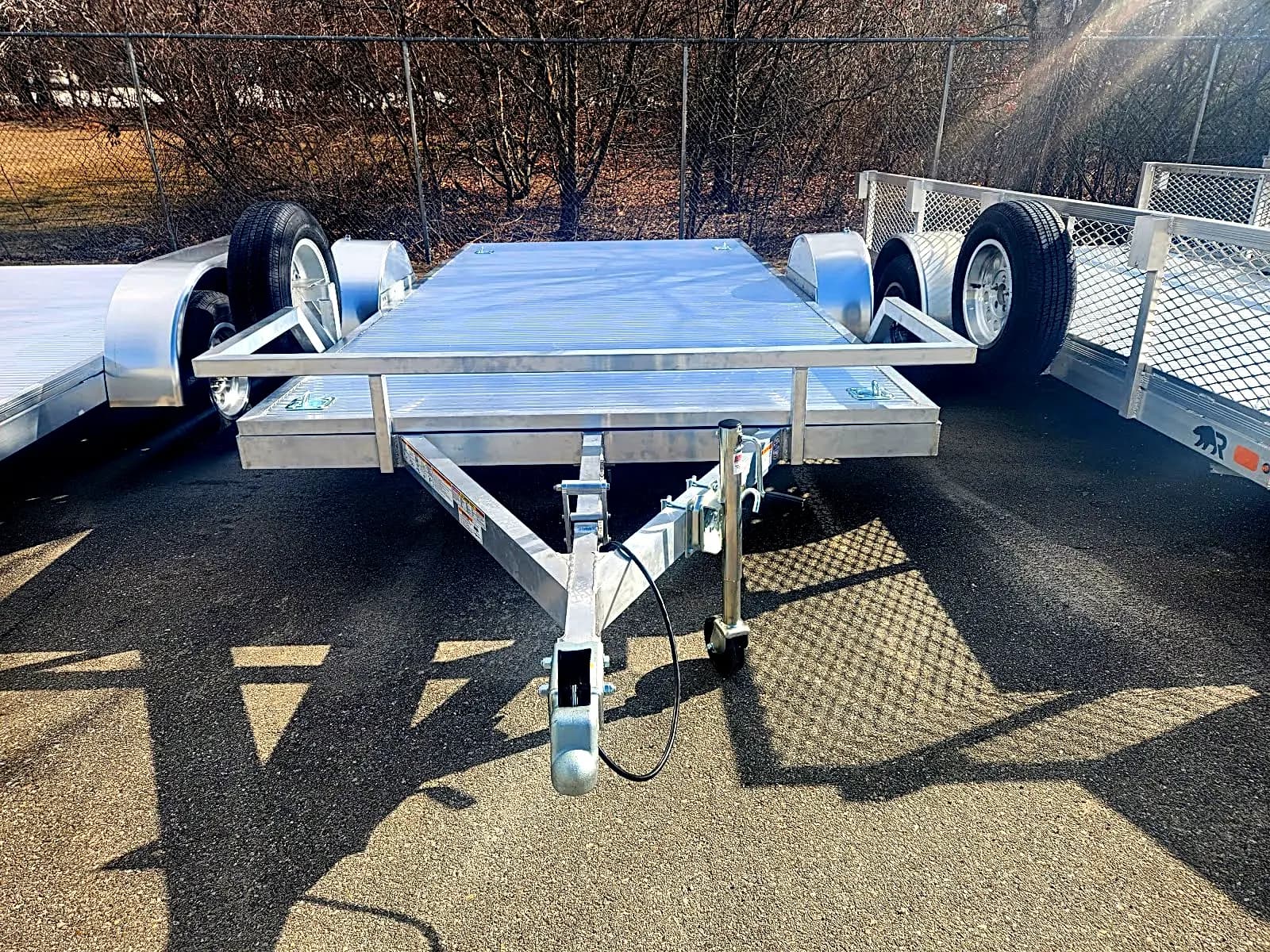

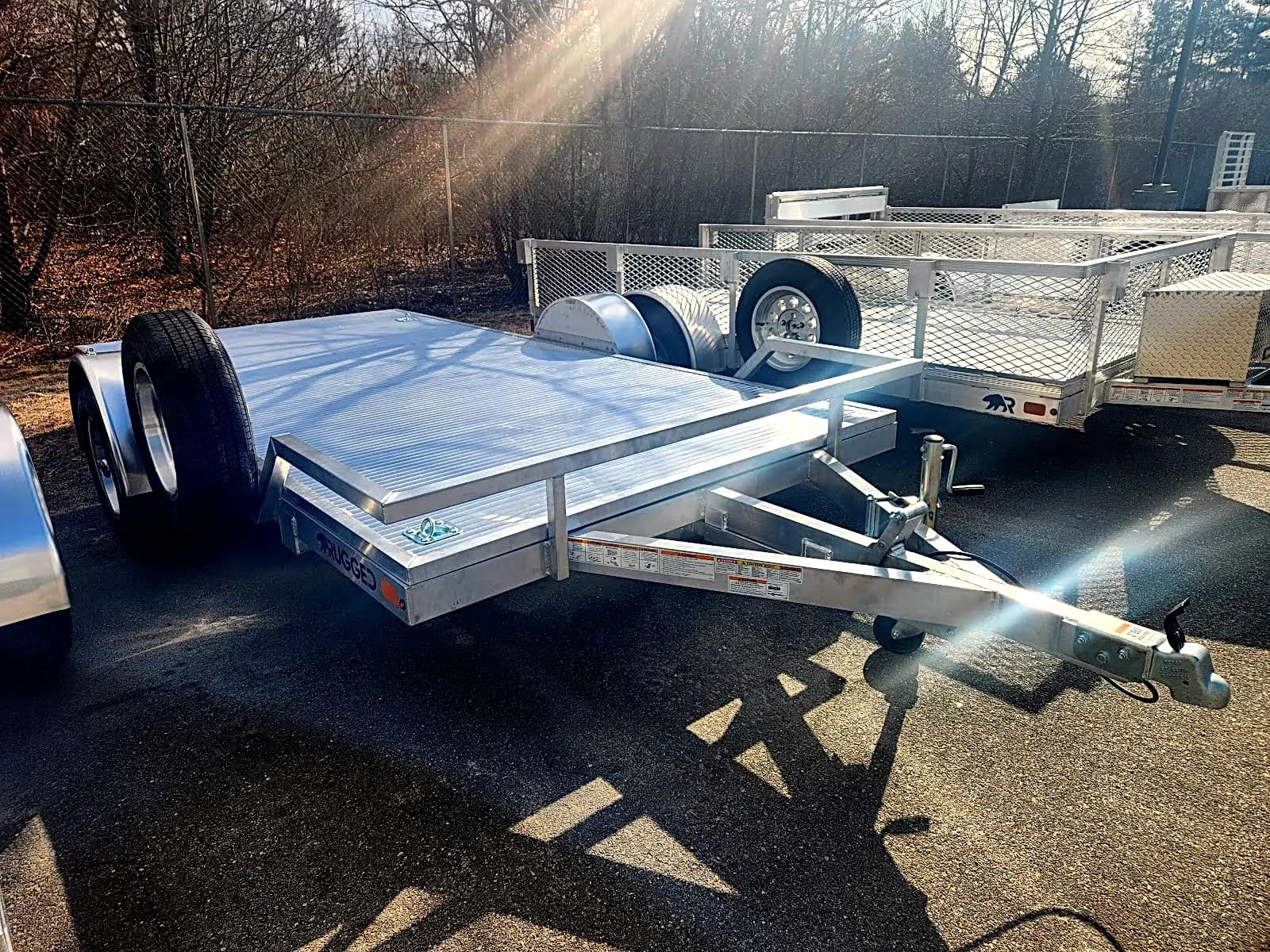

A 6.5' x 13.5' tilt-deck trailer, set up with a mounted 15-inch spare. Shot on the floor at our New Hampshire facility.

Photographed at our New Hampshire factory.

Completed build archive: March 2025
Built for: Low-clearance loading work
Current base payload: 1,965 lb
Photo proof: 6 real photos

Why this configuration works

This completed build combines 15" Aluminum Spare – Mod with Mount, Front Bumper Rail – 6.5' Wide, D-Rings – HD Bolt-On. Use it as a proven starting point, then change any option in Build & Price.

View the 6.5' x 13.5' model guide

What's on this trailer

6.5' x 13.5' tilt base$7,195
Low Front Rail for 6.5' Wide Trailer+ $229
Flush Mount D-Ring × 4+ $120
15" Aluminum Mod Spare & Mount+ $359

Front Bumper Rail – 6.5' Wide
D-Rings – HD Bolt-On

This is a documented previous build. Some equipment no longer maps exactly to today's catalog, so we will not present a partial recreation price as exact.

Review available models

Built to order. Current lead time: typically 3 weeks.

4.9Rated on Google

6.5 x 13.5 Single Axle Tilt Trailer · Model R4002

Full specifications

Printable spec sheet

GVWR: 2,990 lb
Estimated payload: 1,965 lb
Estimated empty weight: 1,025 lb
Rating per axle: 3,500 lb

Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.

Dimensions & Weight

Standard Size	6.5' x 13.5' Single Axle Tilt Trailer
Trailer Weight	1,025 lb
GVWR Rating	2,990 lb
Trailer Payload	1,965 lb
G.A.W.R. (Ea. Axle)	3,500 lb

Structure

Frame	4″ x 2″ x 3/16″ Tubular
Tongue	5″ x 2″ x 3/16″ Tubular
Floor	Custom Aluminum Extrusion
Cross-members	4″ x 2″ x 3/16″ Tubular
Fenders	10.75″ x 32″ Smooth Aluminum
Coupler	2″ A-Frame
Safety Chains	Curt Single Hook Cable (2 ea)
Jacks	3,000 lb Top Wind (Bolted On)

Running Gear

Axles	Single 3,500 lb EZ Lube Axle
Suspension	Torsion / Torflex
Wheel	15″ x 6″ Aluminum Mod Wheel
Tire	ST205/75R-15 Belted Radial
Brakes	Optional
Lights	Optronics L.E.D.
Electric Plug	4-Way Flat
Finish	Natural Aluminum

Standard equipment

Custom Aluminum Extrusion floor
4″ x 2″ x 3/16″ Tubular aluminum frame
2″ A-Frame coupler
3,000 lb Top Wind (Bolted On) jack
Torsion / Torflex suspension
15″ x 6″ Aluminum Mod Wheel
ST205/75R-15 Belted Radial tires
Optronics L.E.D. lighting
4-Way Flat electrical connector
Natural Aluminum finish

Specifications are for the 6.5 x 13.5 Single Axle Tilt Trailer base model and are subject to confirmation on your build. Options shown on this trailer may change some figures.

See the full 6.5 x 13.5 Single Axle Tilt Trailer product page
