Patrick uses his Rugged trailer in demanding Florida weather. Its light weight, corrosion-resistant aluminum construction, and Rugged's support have made it a dependable part of his landscaping business.
1 / 11
- Base trailer
- All-aluminum
- Deck
- 6.5' x 20'
- Est. base payload
- 5,350 lb
- GVWR
- 7,000 lb
- Est. base weight
- 1,650 lb
Exact model shownManufactured by FWM Inc. in Hudson, New Hampshire50+ years of aluminum manufacturing500+ completed builds documented in the Rugged archive
Tilt · Tandem axle
6.5 × 20 Tandem Axle Tilt Trailer
Rugged 6.5 x 20 Tandem Axle Tilt Trailer — all-aluminum tilting deck, 7,000 lb GVWR, 5,350 lb payload. Drive-on loading, no separate ramp. Delivered or picked up.
Base trailerBefore options and delivery
$10,789
Enter ZIP for your exact estimate
Built after approval. Rugged manufactures your trailer after the final Build Order is confirmed, so you configure the exact version your work requires.
Calculate delivery to your ZIP
Enter your ZIP for Rugged Home Delivery from our Hudson, NH factory.
Enter your ZIP for an exact Rugged Home Delivery price.
Tax, title, registration, and related fees are paid by you in your home state when you register the trailer, if applicable; Rugged does not collect or handle them.
- Typical configured range
- $11,623–$12,757
- Deck
- 6.5' x 20'
- Est. base payload
- 5,350 lb
- GVWR
- 7,000 lb
- Est. base weight
- 1,650 lb
Estimated — final weight and payload are confirmed after factory weigh-in.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- Production: about 3 weeks after Build Order approval
- Pickup: Hudson, New Hampshire
- Warranty: Five years on the aluminum structure for retail use, one year for commercial use, with no warranty registration to file.
- Request a live factory video walkaround
Remote-buying confidence
See it before ordering.
Choose the proof you need before reserving.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.

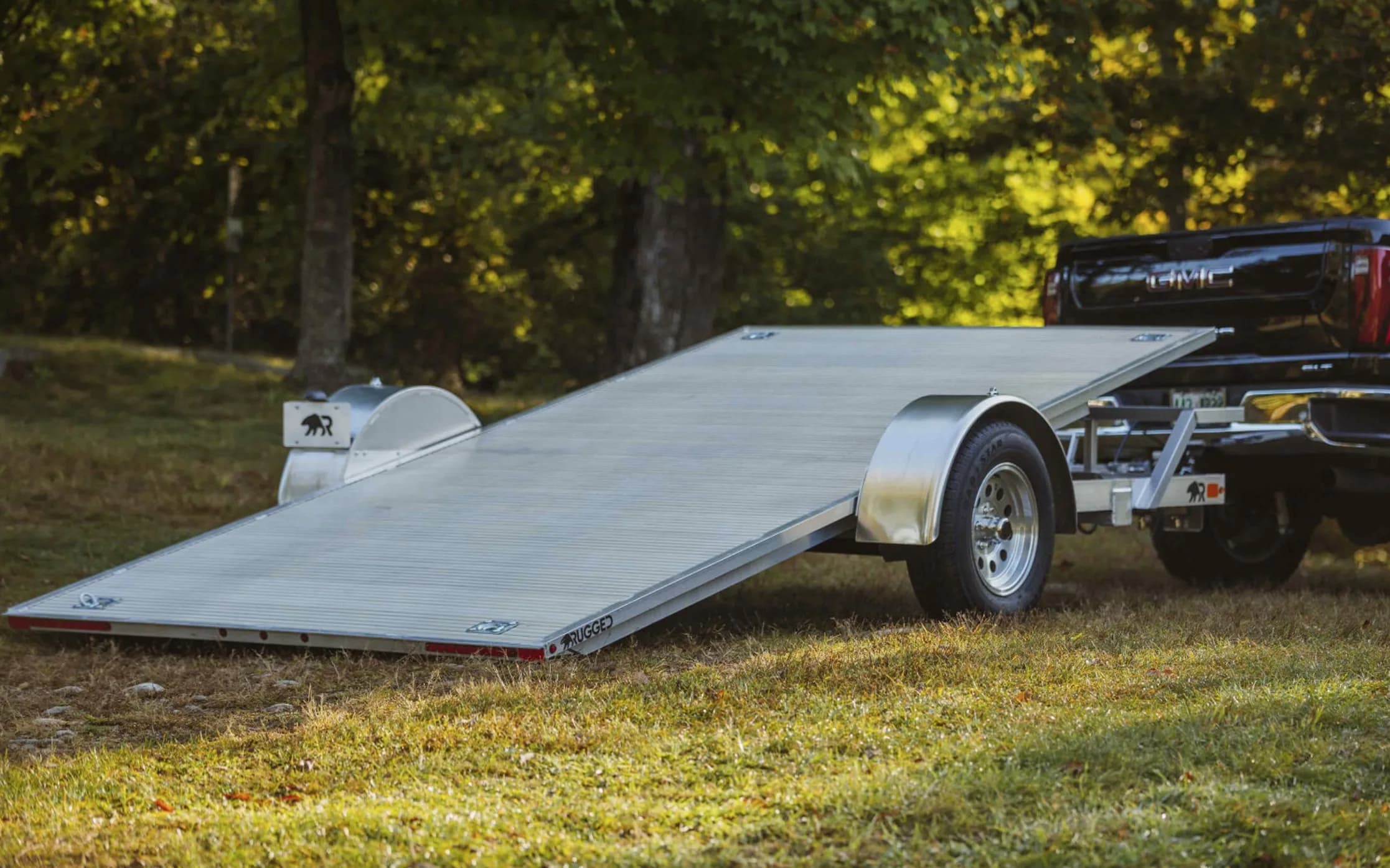

- 01Full-deck tilt system
The deck becomes the ramp
The aluminum deck pivots toward the ground for drive-on loading without a separate gate.
- 02All-aluminum structural frame
Corrosion-resistant structure
The load-bearing frame is aluminum rather than a painted steel chassis.

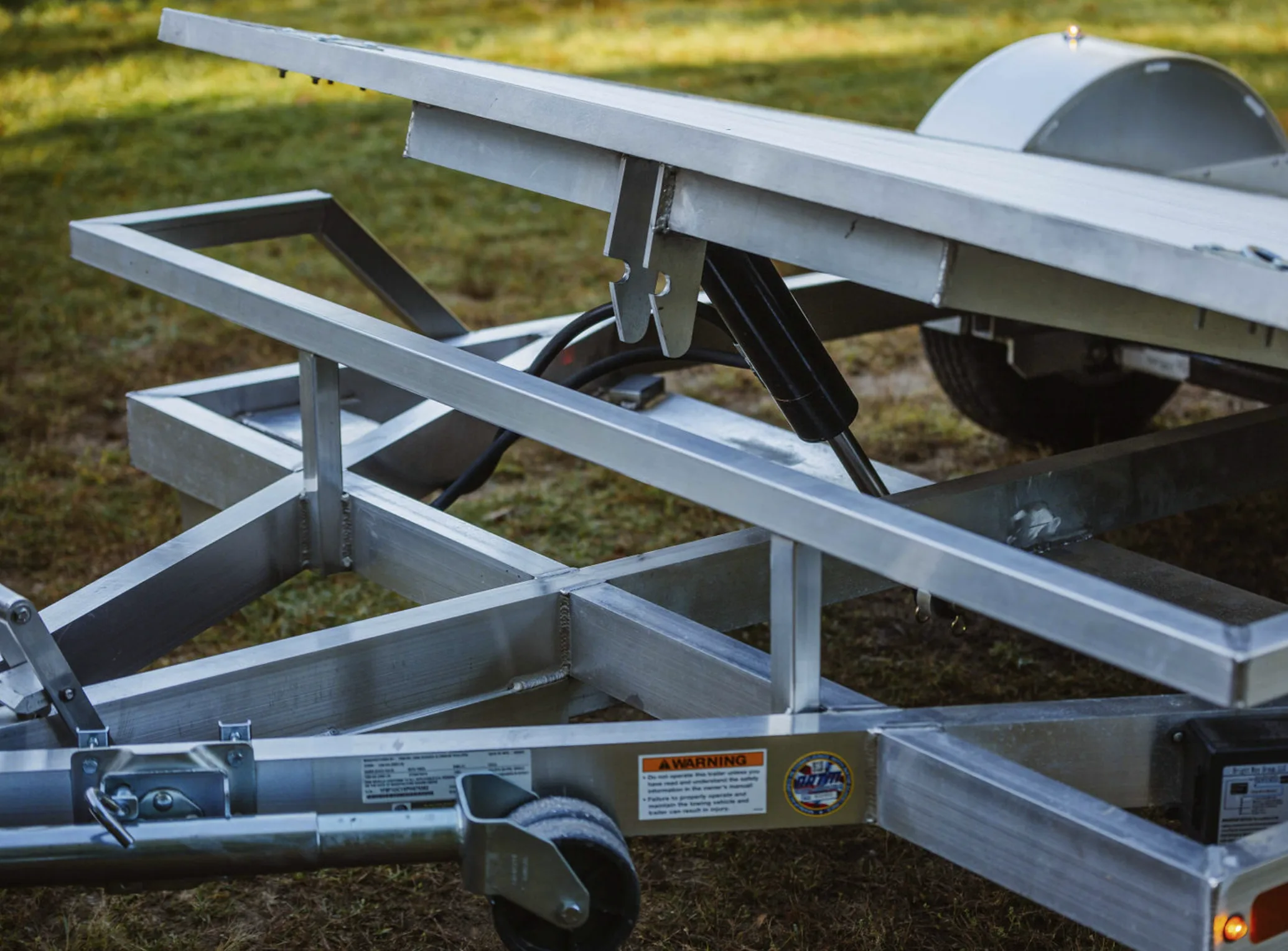

- 03Available Auto TiltLock hydraulic latch
Locked the moment it levels
On equipped models, Auto TiltLock latches the hydraulic tilt automatically when the deck returns to ride height — no separate pin to set before towing.

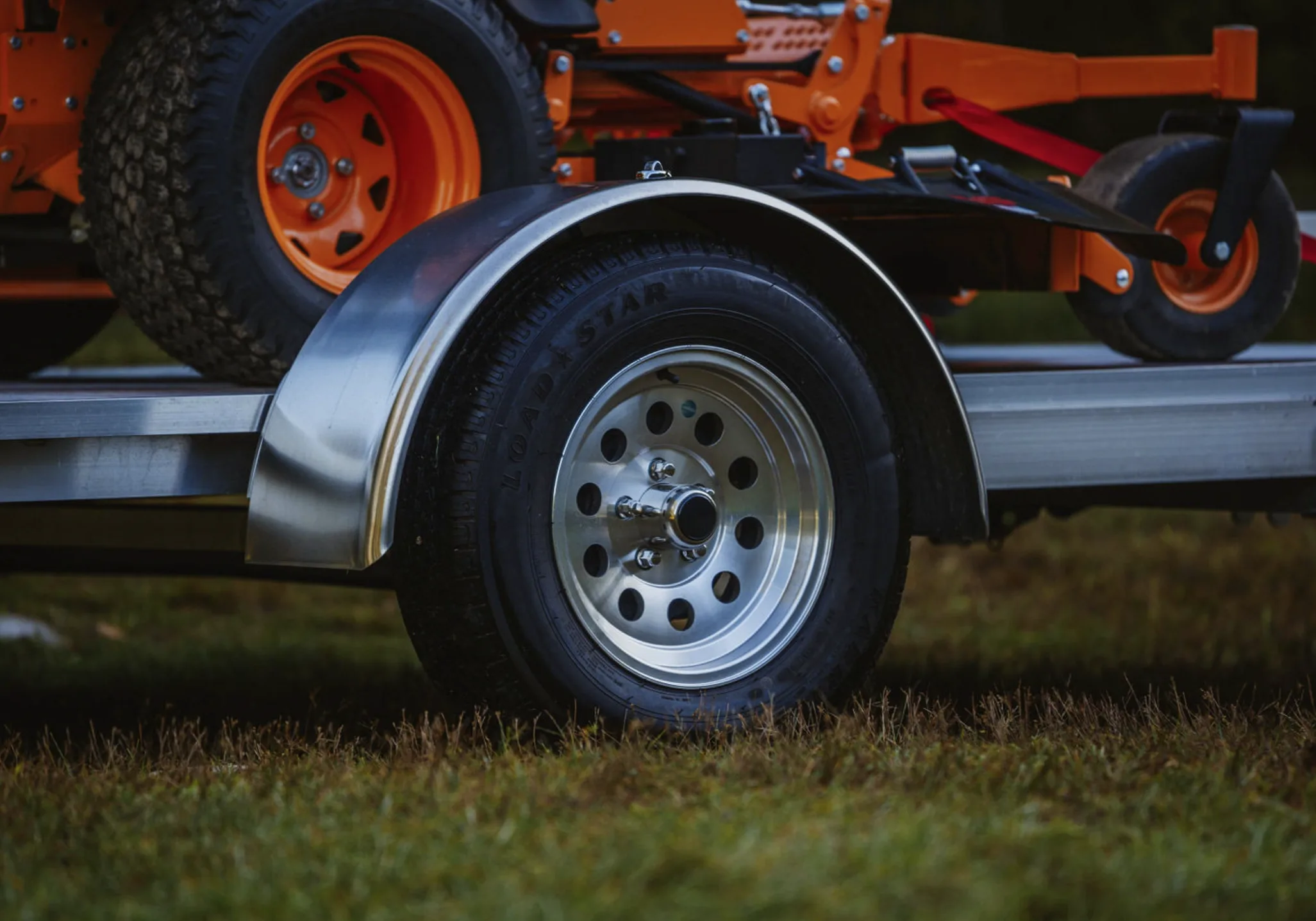

- 0415″ × 6″ aluminum mod wheel · ST205/75R-15
Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.

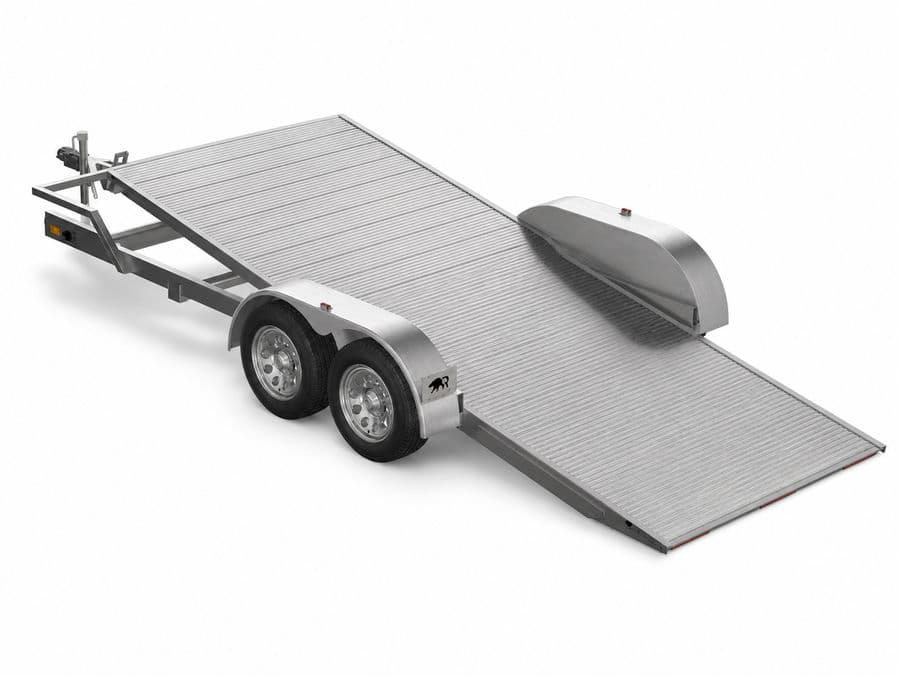

Similar size, real build6.5 x 18 Tandem Axle Tilt Trailer
6.5x18 tilt — walk-around
Walk-around of the 6.5x18 tandem tilt with its 5,400 lb capacity deck.
1:25 · December 2025
- 5,400 lb capacity
- Tilt deck loading
Narrated · captions available in the player
All clips
1 of 4
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
The number that matters
7,000 lb GVWR minus 1,650 lb base trailer weight equals 5,350 lb estimated base payload.
Payload decreases as options are added. Confirm cargo, tongue weight, and tow-vehicle ratings before towing.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
- 1,650 lb
- 7,000 lb
- 5,350 lb
Dimensions & Weight
- Standard Size
- 6.5'x 20' Tandem Axle Tilt Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 5″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 68″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Tandem 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- 4 Wheel Electric
- Lights
- Optronics L.E.D.
- Electric Plug
- 7-Way Round
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real builds of this model
Actual trailers of this exact model lead the list. Current Builds can start with mapped options; Previous Builds are clearly marked for inspiration.

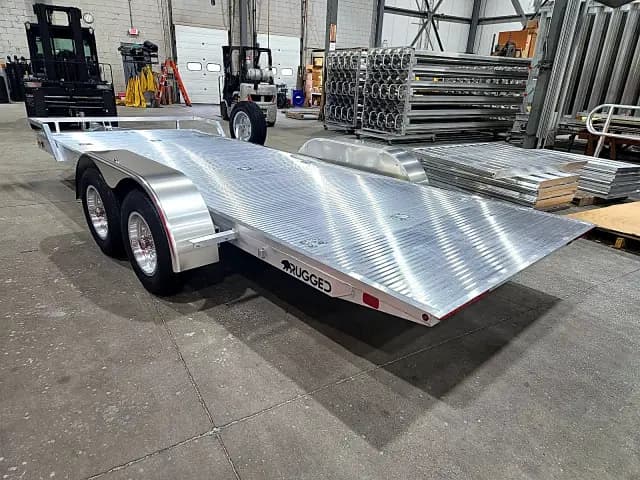

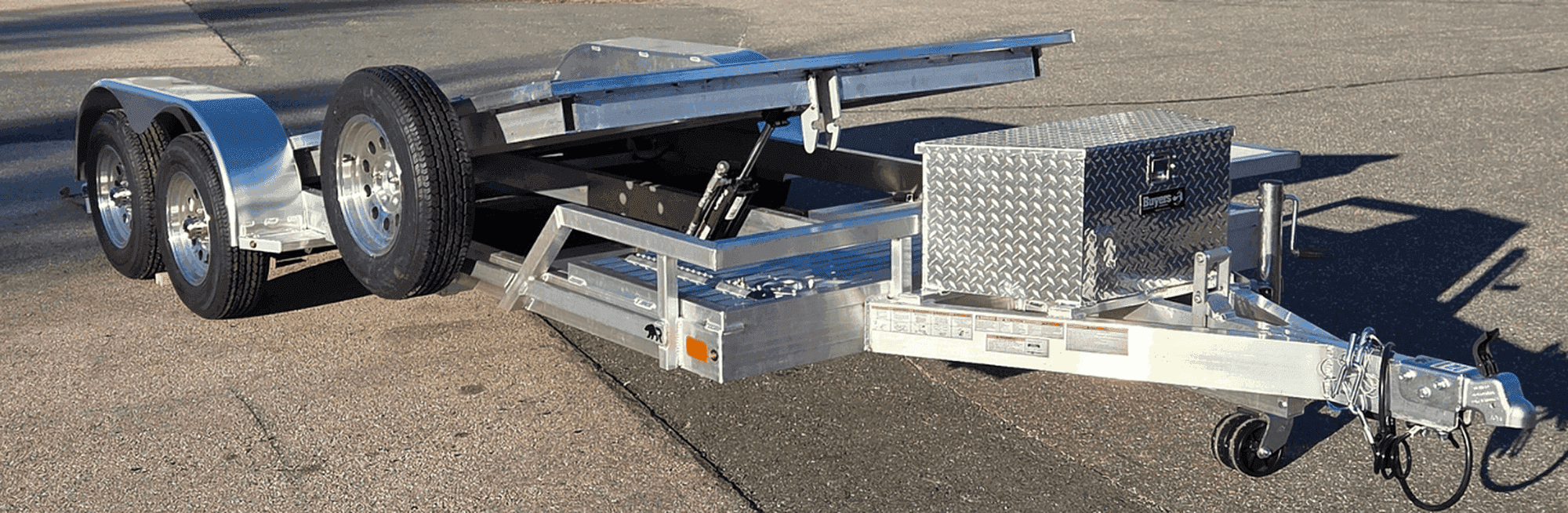

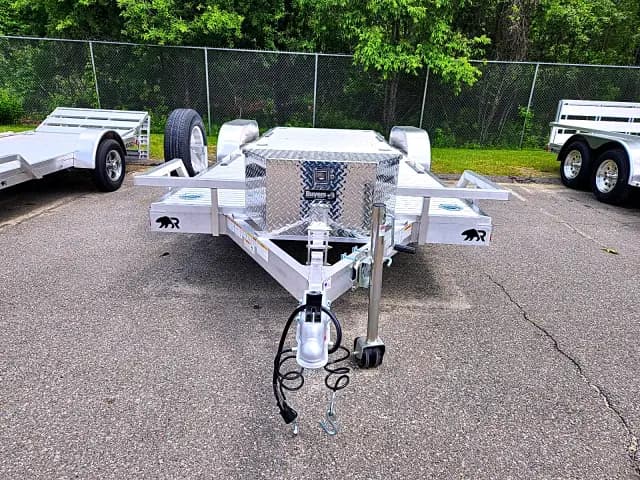

Real build7 photos6.5' x 20' tandem · Tilt · Powersports
6.5' x 20' Tandem Tilt
- Aluminum Tongue Box
- 15" Aluminum Spare
As shown$13,252
Payload5,350 lb
Built new in typically 3 weeks

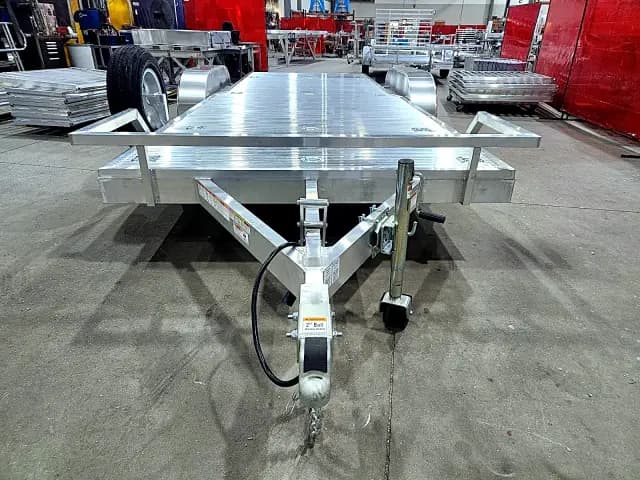

Real build9 photos6.5' x 20' tandem · Tilt · Low-clearance loading
6.5' x 20' Tandem Tilt
- HD Rub Rail
- 15" Aluminum Spare
As shown$12,118
Payload5,350 lb
Built new in typically 3 weeks
Real build14 photos6.5' x 20' tandem · Tilt · Low-clearance loading
6.5' x 20' Tandem Tilt
- 15" Aluminum Spare
- D-Rings
Priced in the configurator
Payload5,350 lb
Previous build · Closest current model: 6.5' x 20'. Availability may differ.
Customer experiences
What Rugged owners share.
Compare the family
Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6.5 × 20 Tandem Axle Tilt Trailer
Choose a starting configuration, then adjust every available option and see the current price.
