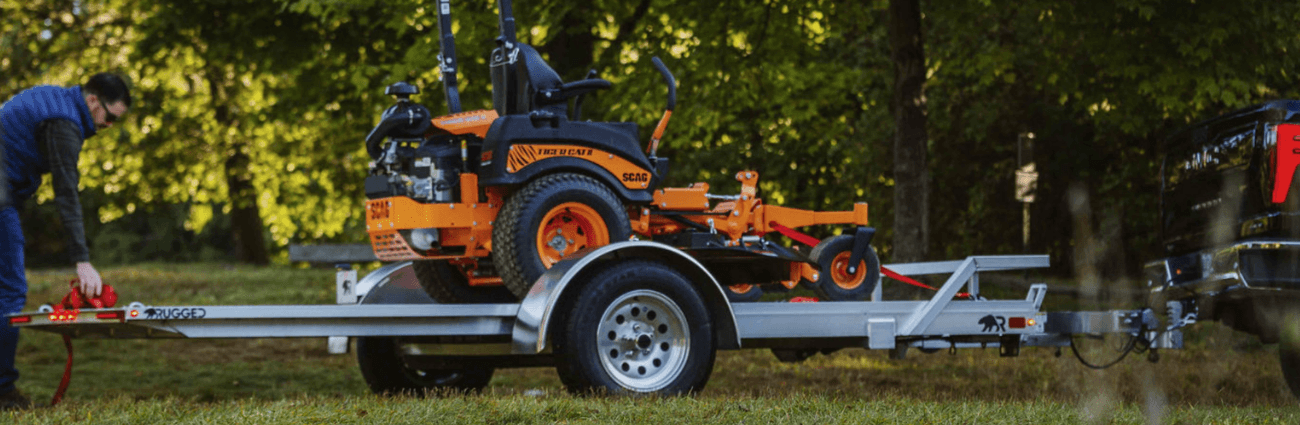

Patrick uses his Rugged trailer in demanding Florida weather. Its light weight, corrosion-resistant aluminum construction, and Rugged's support have made it a dependable part of his landscaping business.
1 / 7

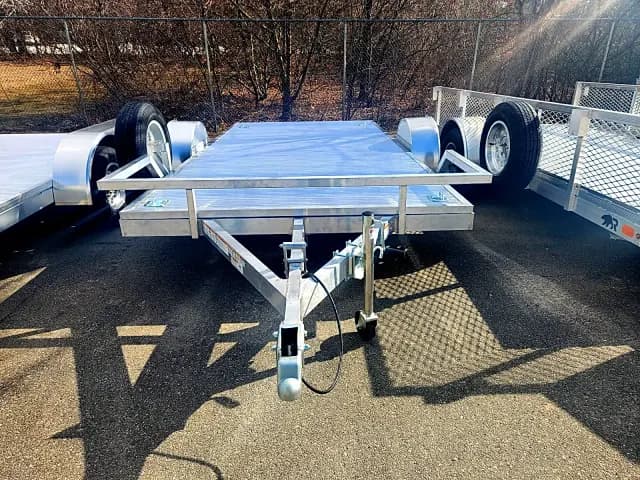

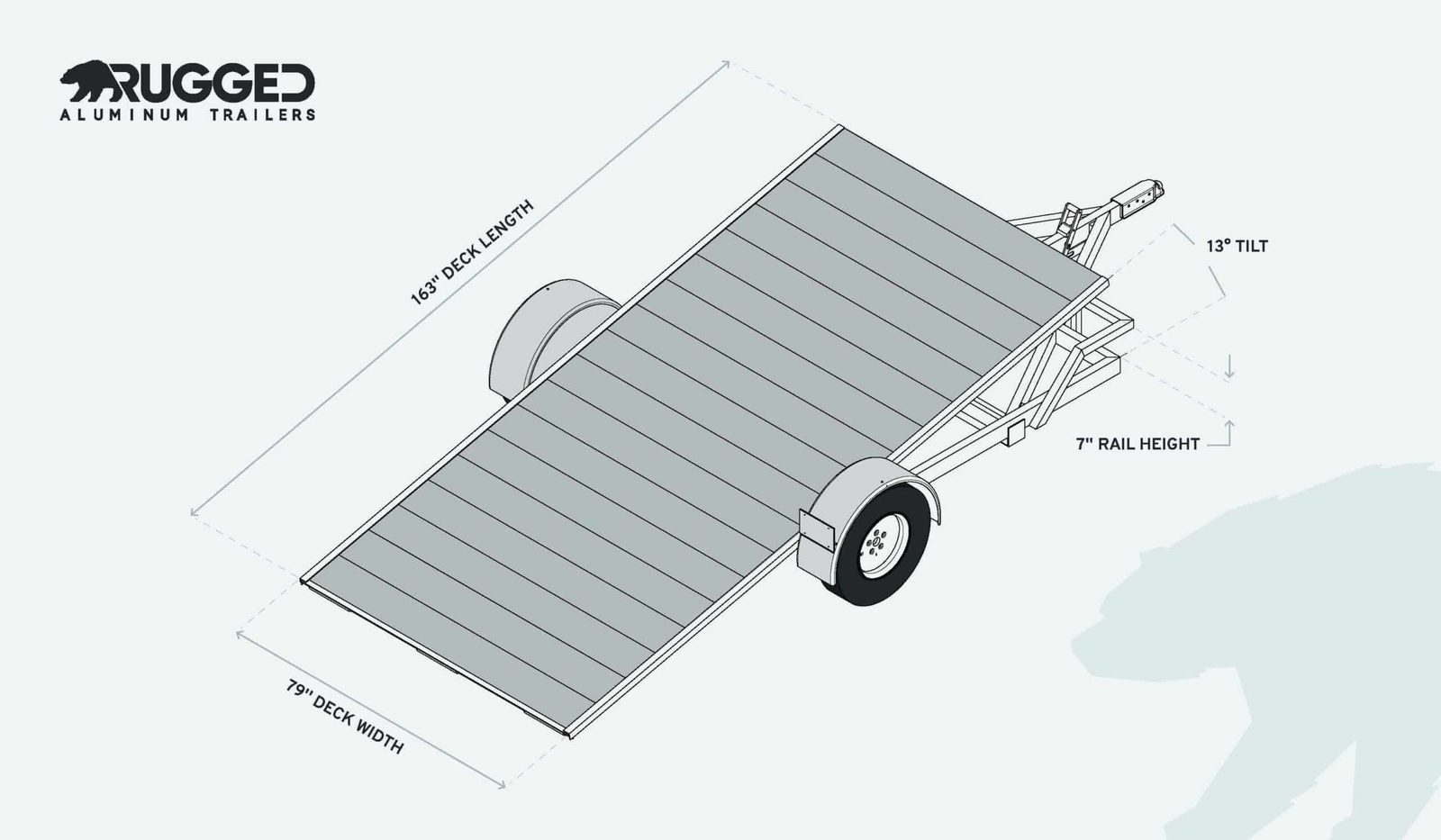

6.5 × 13.5 Single Axle Tilt Trailer
Our widest single-axle tilt. Extra deck for longer machines.
- From
- $5,321
- Payload (est.)
- 1,965 lb
- GVWR
- 2,990 lb
Most-built setup
$5,995
Start with this setupEnter your ZIP — see your delivered price.
Buy direct, risk-free
- Refundable 25% order deposit The amount due today is a 25% refundable order deposit. It remains refundable until you approve the final written Build Order. Rugged reviews the submitted configuration before approval; required changes are shown in a new written revision. A higher approved total requires your explicit authorization for the difference. If the approved 25% target is lower, Rugged refunds the excess to the original payment method.
- You approve the exact build Nothing enters production until you approve the final order.
- Five-year structural warranty Built and supported by Rugged in Hudson, New Hampshire.
- Delivery reviewed before production Your selected fulfillment method and complete price are reviewed with you.
Typically ready in about 3 weeks.
Build & PriceNot sure what you need? Call 603.324.7402 or text us.
Have a factory specialist recommend the setup
Add electric brakes for 510 lb more capacity
Enter your ZIP — see your delivered price.
Location lookup by Google Maps. Privacy
Tax and registration: handled in your state — we don't collect them. Details
Built in Hudson, NH50 years in aluminum500+ real builds
Remote-buying confidence
See it before ordering.
Choose the proof you need before starting your order.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.

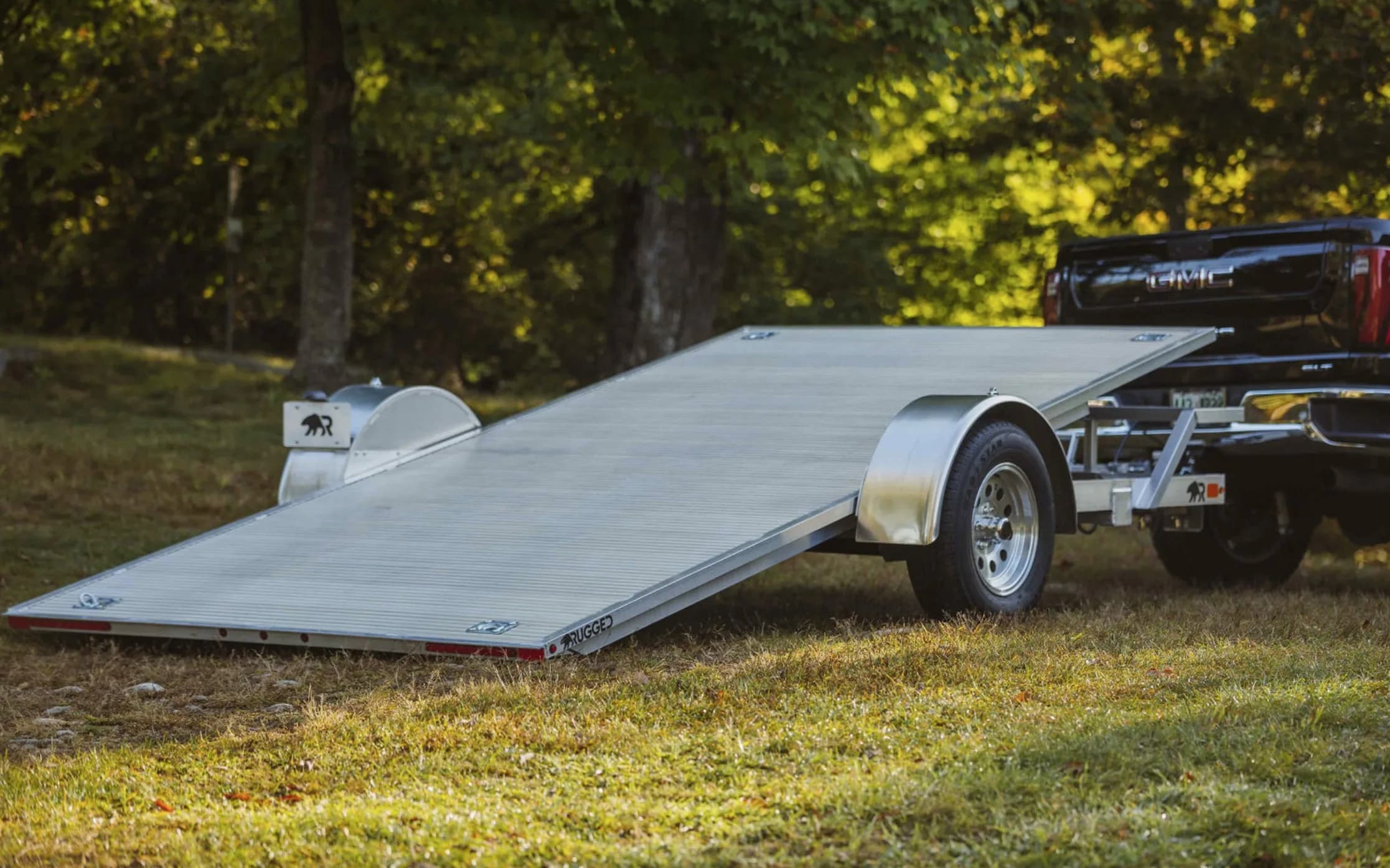

- 01Full-deck tilt system
The deck becomes the ramp
The aluminum deck pivots toward the ground for drive-on loading without a separate gate.
- 02All-aluminum structural frame
Corrosion-resistant structure
The load-bearing frame is aluminum rather than a painted steel chassis.

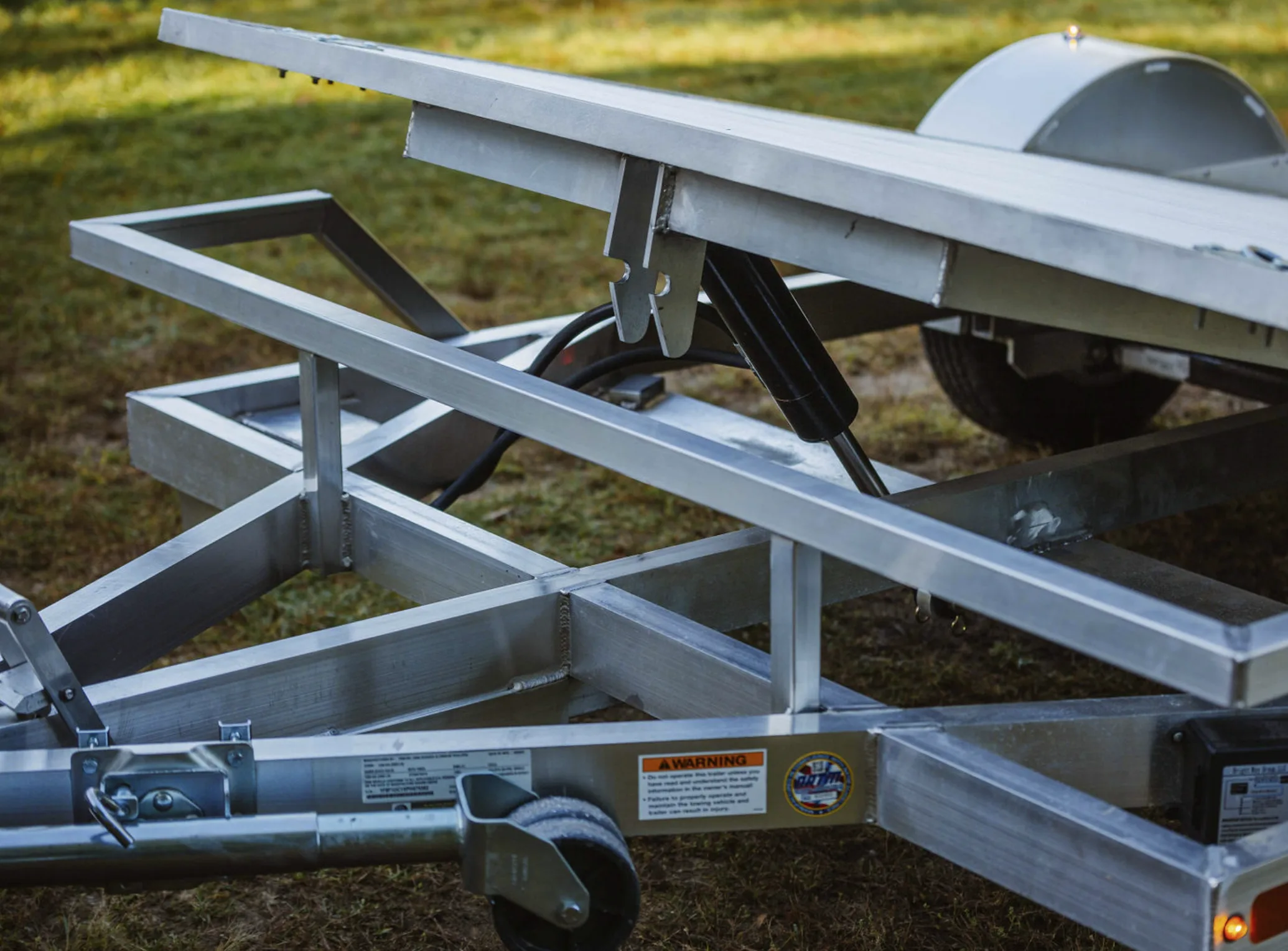

- 03Available Auto TiltLock hydraulic latch
Locked the moment it levels
On equipped models, Auto TiltLock latches the hydraulic tilt automatically when the deck returns to ride height — no separate pin to set before towing.

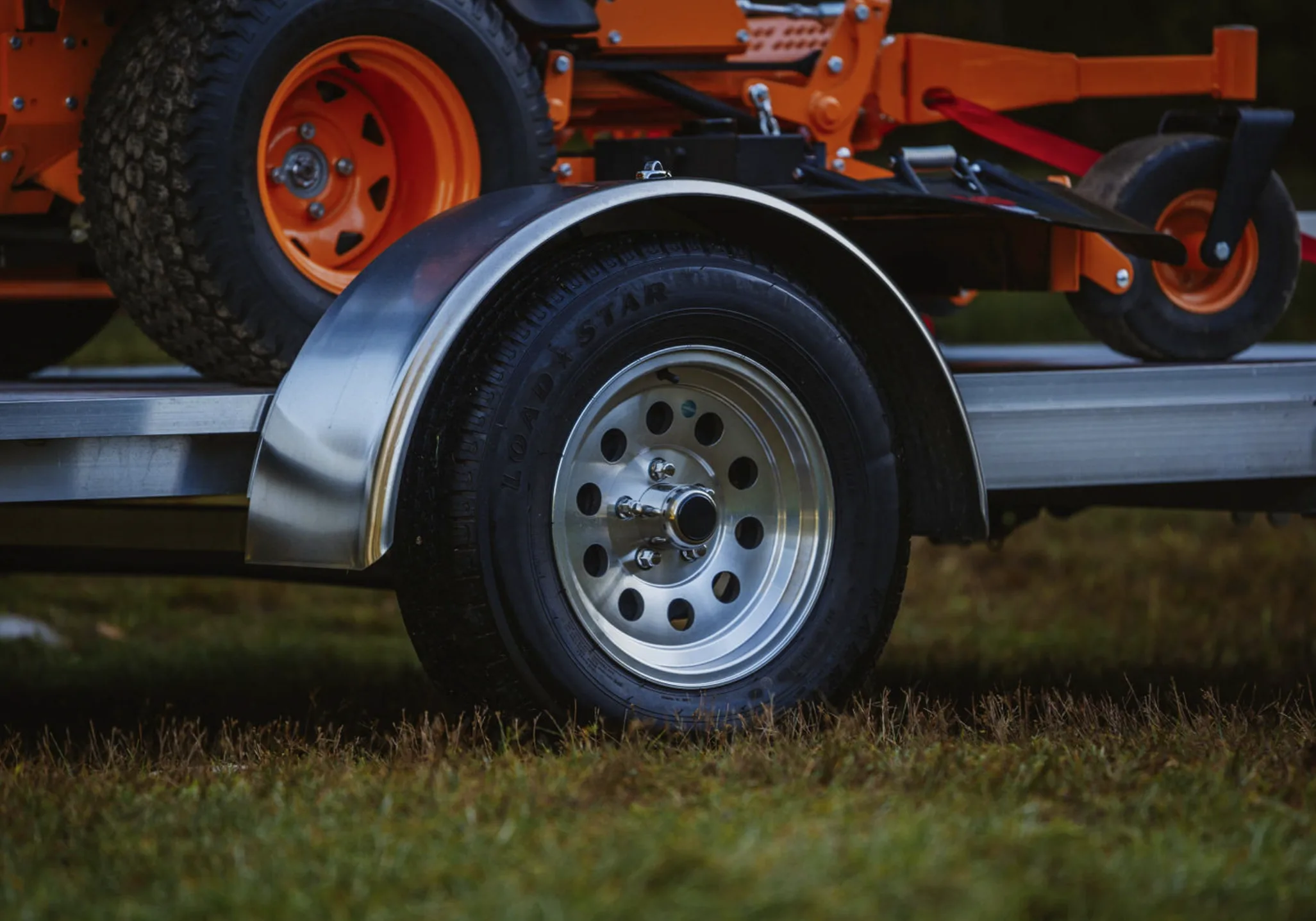

- 0415″ × 6″ aluminum mod wheel · ST205/75R-15
Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.

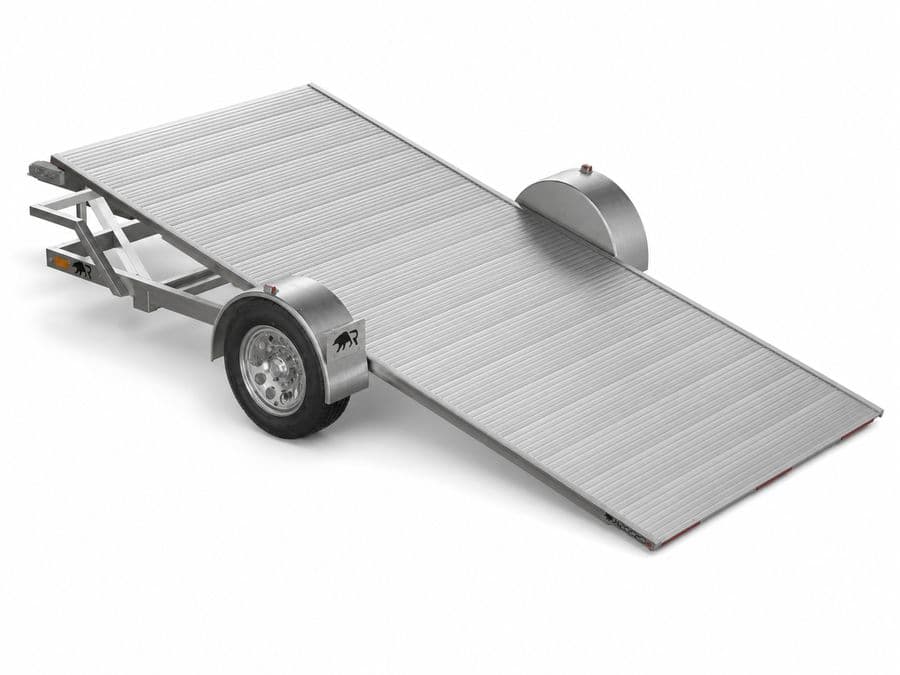

Similar size, real build6 x 13.5 Single Axle Tilt Trailer
6x13.5 tilt — loading demo
Loading demo on the 6x13.5 single-axle tilt — mowers and ATVs load with no ramps at all.
1:29 · October 2025
- Ramp-free tilt loading
- Torsion axle ride
- All-aluminum frame
All clips
1 of 4
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
The number that matters
2,990 lb GVWR minus 1,025 lb base trailer weight equals 1,965 lb estimated base payload.
Payload decreases as options are added.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- 1,025 lb
- 2,990 lb
- 1,965 lb
Full specifications
Dimensions & Weight
- Standard Size
- 6.5' x 13.5' Single Axle Tilt Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 5″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 32″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Single 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- Optional
- Lights
- Optronics L.E.D.
- Electric Plug
- 4-Way Flat
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real builds of this model
Three completed examples of this exact model.

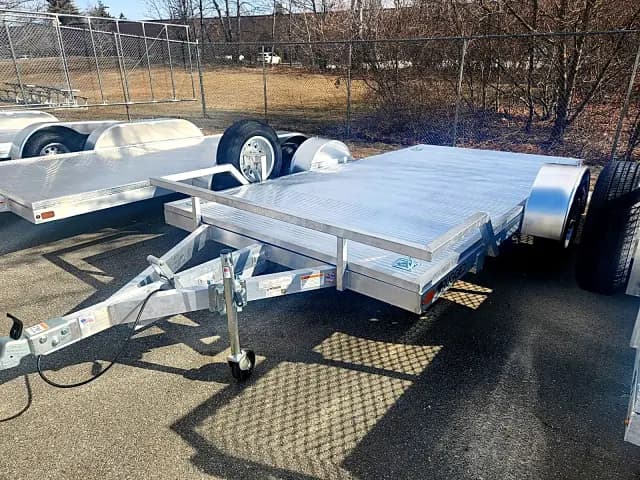

6.5' x 13.5' · Tilt · Low-clearance loading
6.5' x 13.5' Single axle Tilt
- Swivel tie-down rings × 4
- Mounted spare tire
Priced in the configuratorPrevious build · Closest current model: 6.5' x 13.5'. Availability may differ.
Customer experiences
What Rugged owners share.
Compare the family

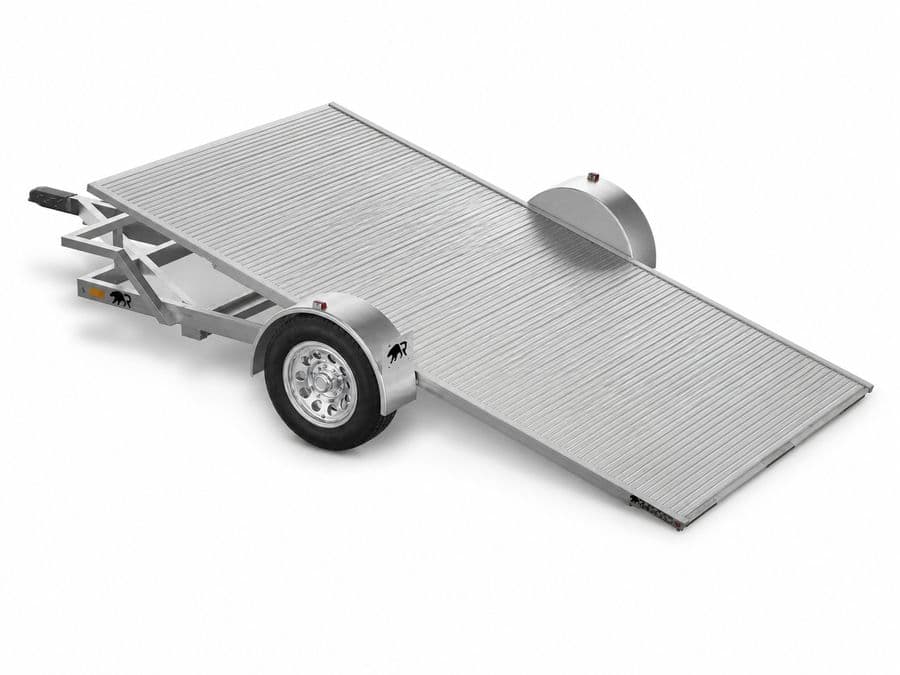

Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6.5 × 13.5 Single Axle Tilt Trailer
Choose a starting configuration, then adjust every available option and see the current price.
