Warren chose a 6.5'x12' Rugged with a stone guard for hauling his Harley. He valued the added road-debris protection and found the trailer manageable with his towing setup.
1 / 3
- Base trailer
- All-aluminum
- Deck
- 6.5' x 12'
- Est. base payload
- 2,276 lb
- GVWR
- 2,990 lb
- Est. base weight
- 714 lb

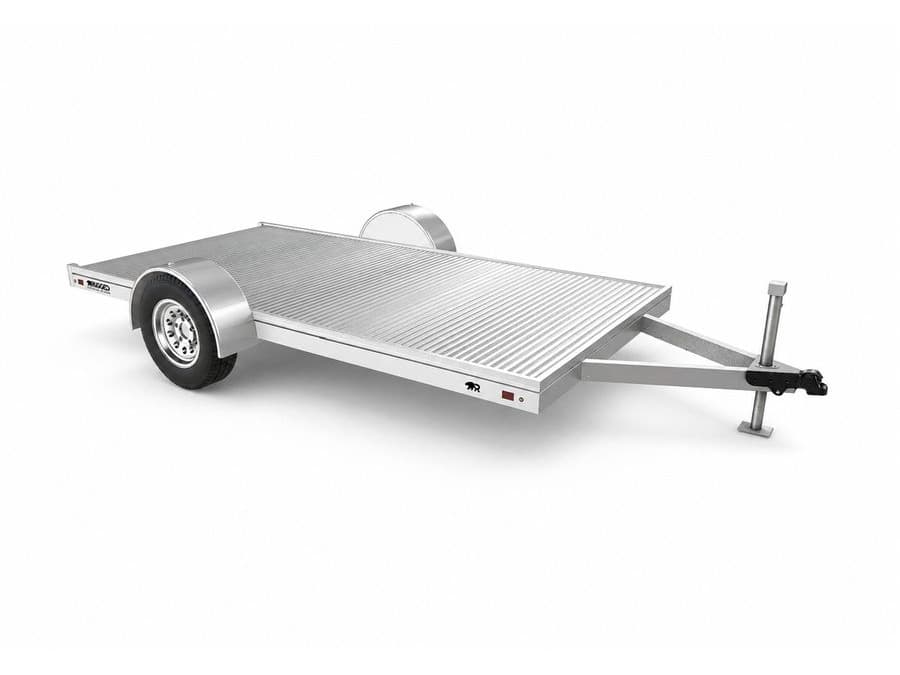

Base trailer renderManufactured by FWM Inc. in Hudson, New Hampshire50+ years of aluminum manufacturing500+ completed builds documented in the Rugged archive
Utility · Single axle
6.5 × 12 Open Utility Trailer
Rugged 6.5 x 12 Open Utility Trailer — all-aluminum frame, 2,990 lb GVWR, 2,276 lb payload. Configure rails, ramp and tie-downs online. Delivered or picked up.
Base trailerBefore options and delivery
$4,899
Enter ZIP for your exact estimate
Built after approval. Rugged manufactures your trailer after the final Build Order is confirmed, so you configure the exact version your work requires.
Calculate delivery to your ZIP
Enter your ZIP for Rugged Home Delivery from our Hudson, NH factory.
Enter your ZIP for an exact Rugged Home Delivery price.
Tax, title, registration, and related fees are paid by you in your home state when you register the trailer, if applicable; Rugged does not collect or handle them.
- Typical configured range
- $7,071–$8,869
- Deck
- 6.5' x 12'
- Est. base payload
- 2,276 lb
- GVWR
- 2,990 lb
- Est. base weight
- 714 lb
Estimated — final weight and payload are confirmed after factory weigh-in.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- Production: about 3 weeks after Build Order approval
- Pickup: Hudson, New Hampshire
- Warranty: Five years on the aluminum structure for retail use, one year for commercial use, with no warranty registration to file.
- Request a live factory video walkaround
Remote-buying confidence
See it before ordering.
Choose the proof you need before reserving.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.

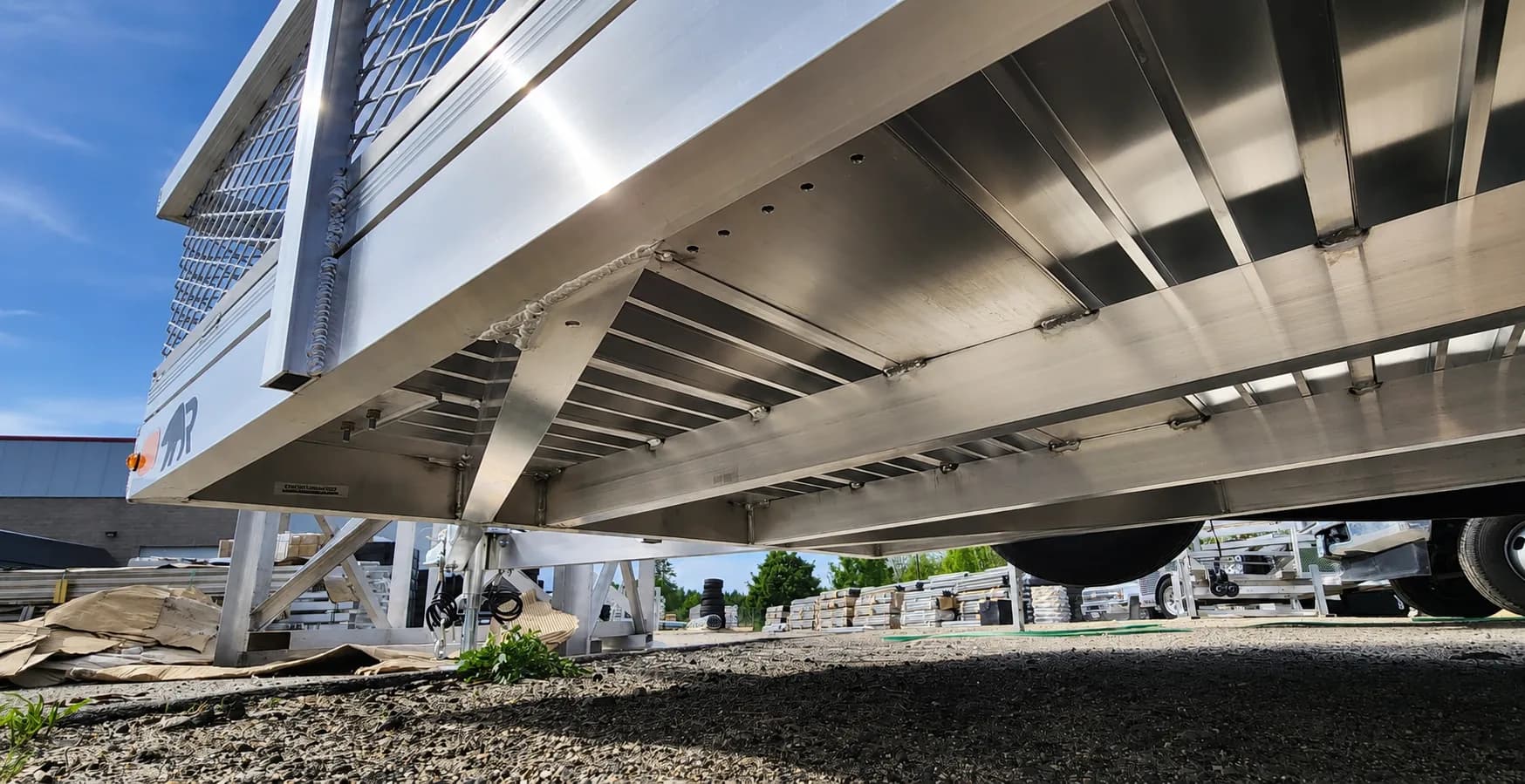

- 014 × 2 × 3/16-inch tubular aluminum
Structure without unnecessary weight
The tubular aluminum frame carries the deck and rated running gear without a painted steel chassis.

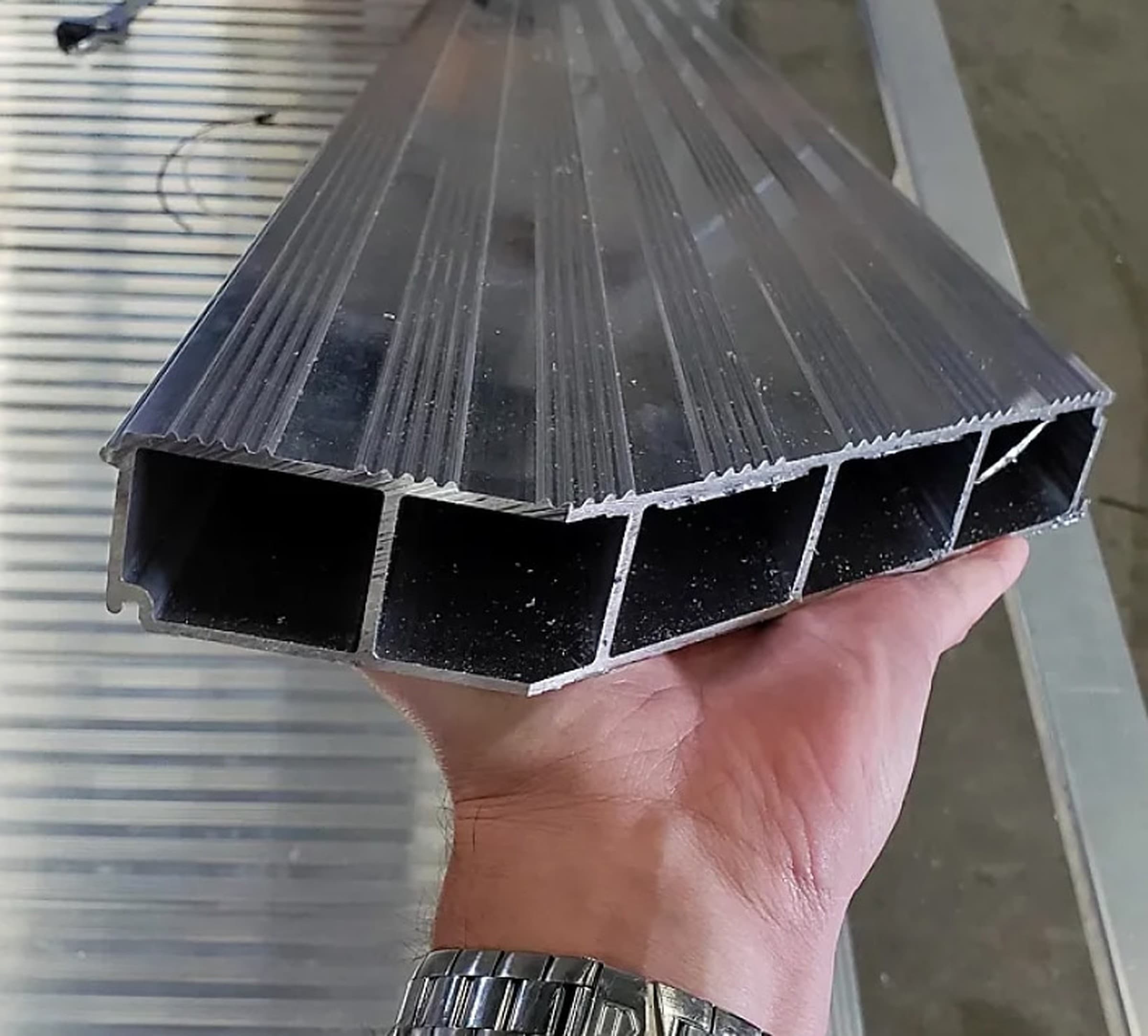

- 02Custom aluminum extrusion
A deck made for the weather
Interlocking aluminum deck extrusions provide a weather-resistant loading surface without wood deck boards.

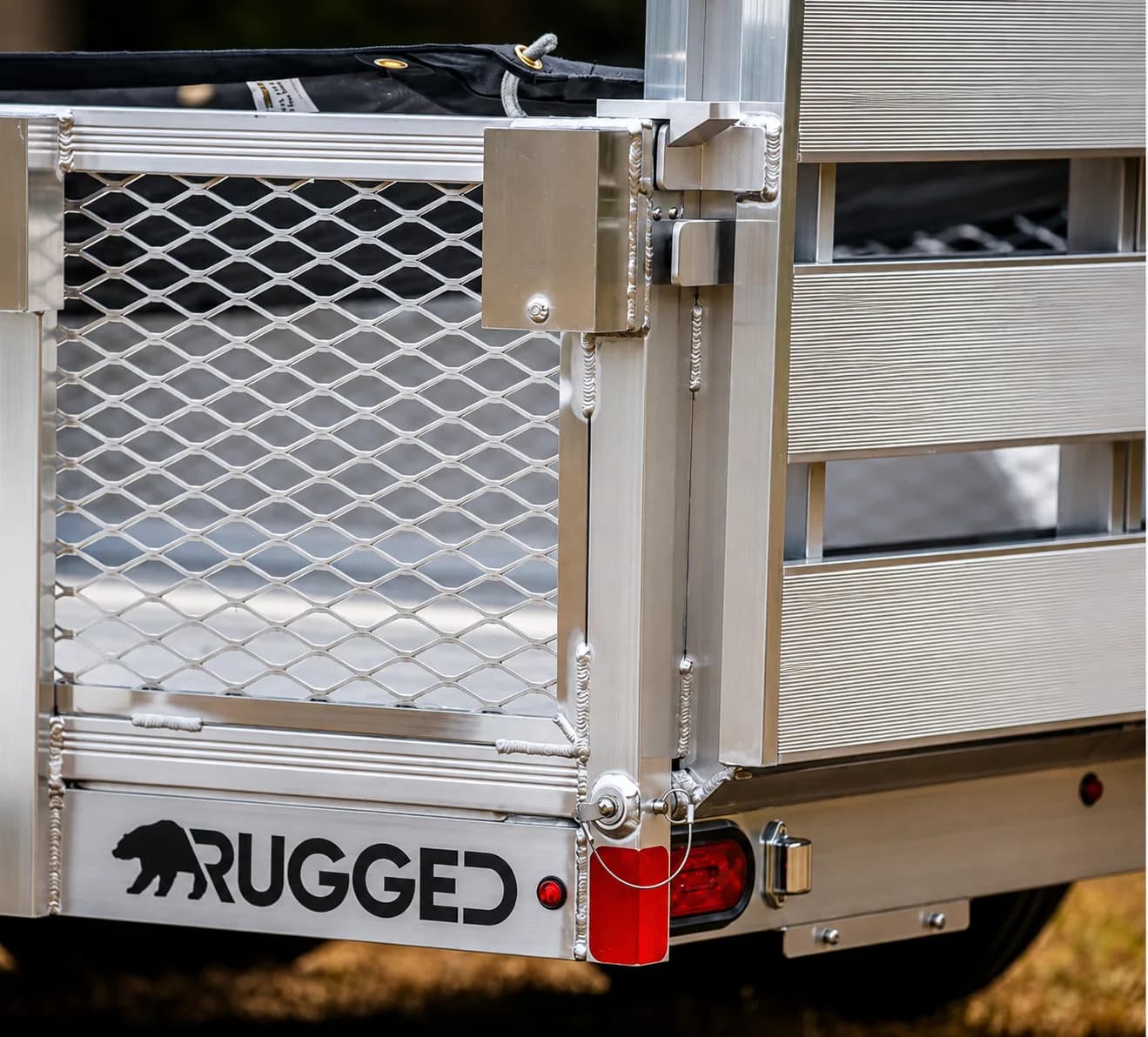

- 03Available AutoLatch ramp and tailgate system
Latched the moment it closes
Available AutoLatch-equipped ramps and tailgates secure automatically on close — no cotter pins or clips to pull, drop, or lose.

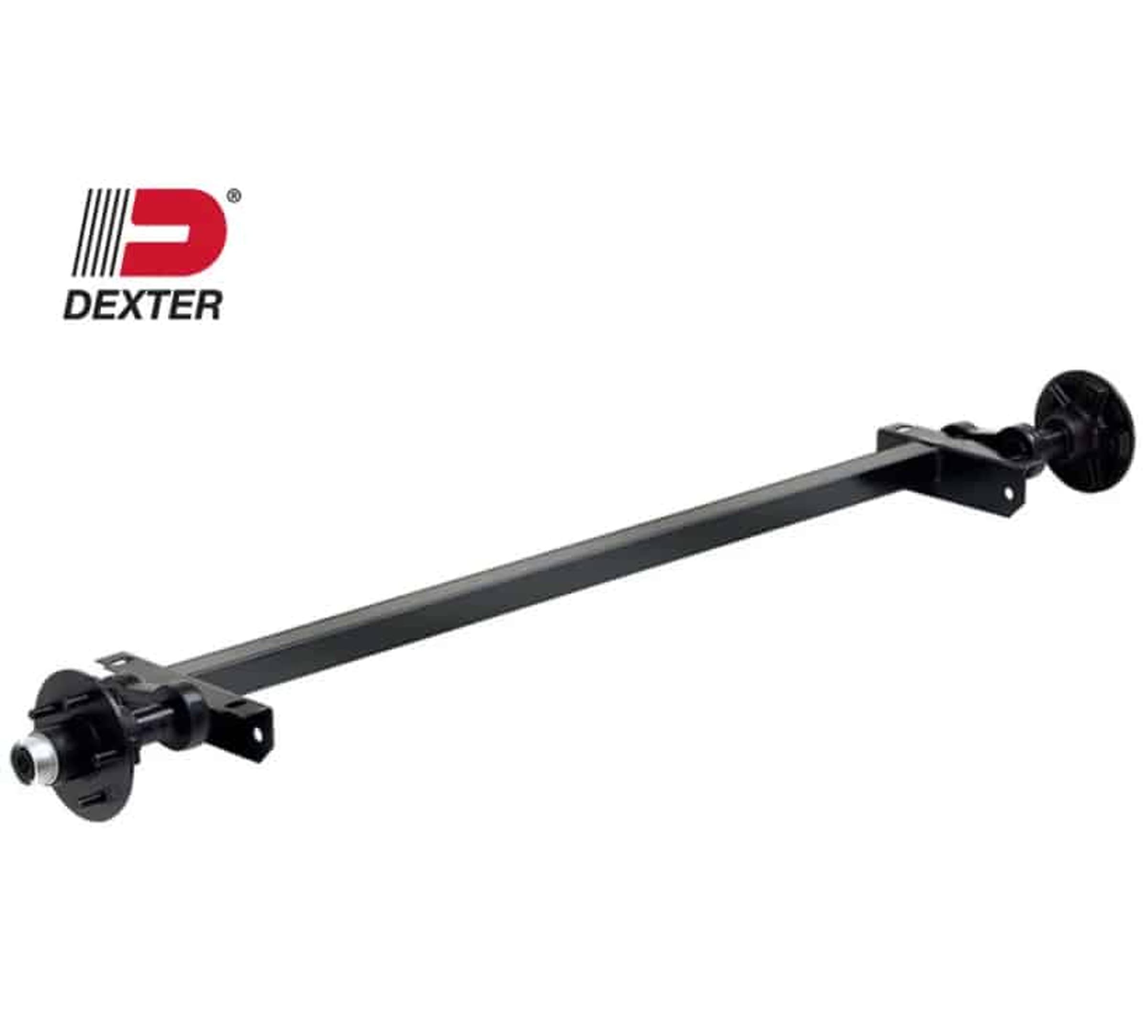

- 043,500 lb EZ Lube axle · Torsion / Torflex
Independent ride control
Torsion suspension moves independently at each wheel and eliminates leaf-spring hardware beneath the deck.

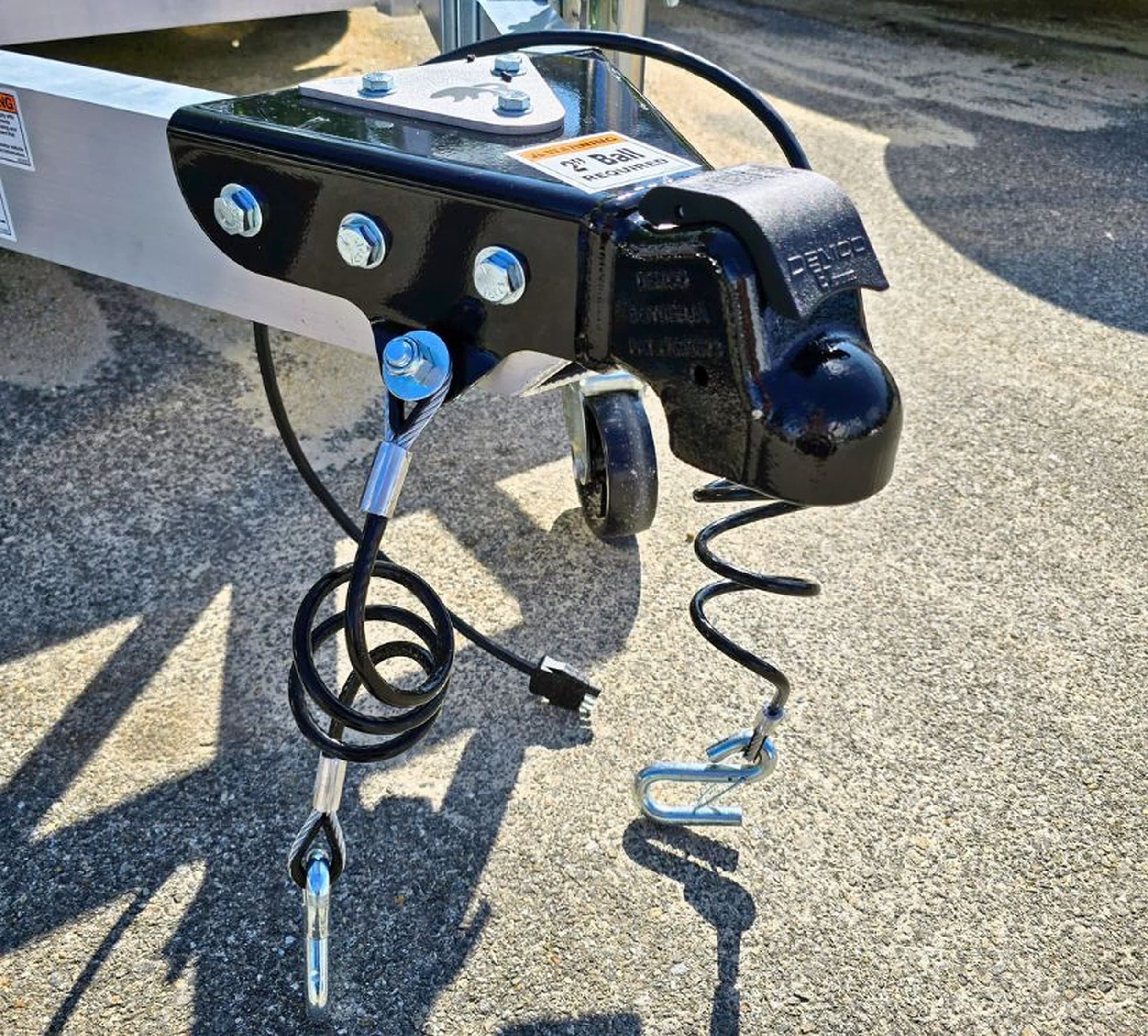

- 053,000 lb top-wind jack · Curt safety cables
Serviceable where it matters
The bolted jack, standard coupler, and safety cables remain accessible for inspection and service.

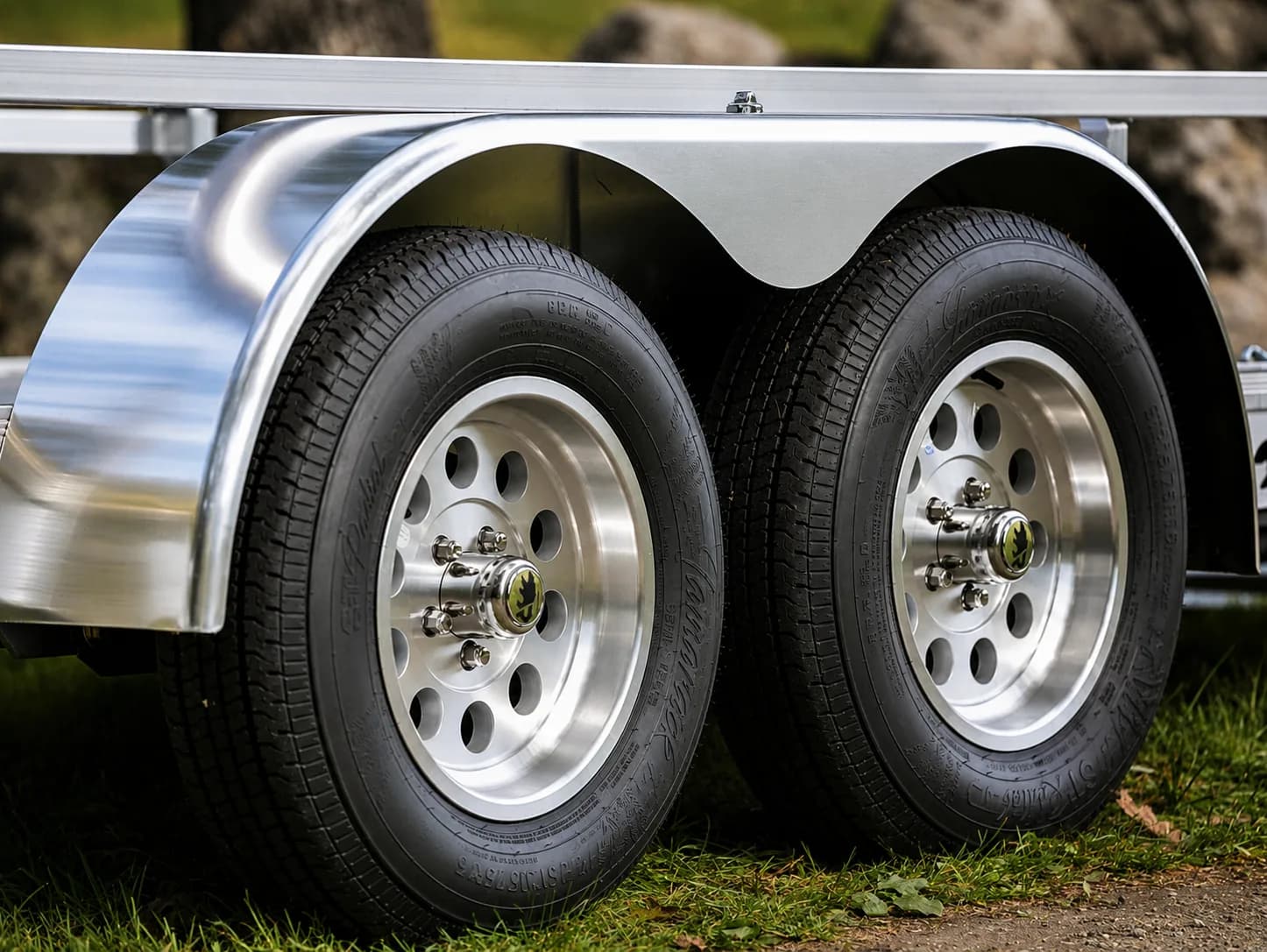

- 0615″ × 6″ aluminum mod wheel · ST205/75R-15
Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.
Similar size, real build6.5 x 12 Tandem Axle Trailer
6.5x12 tandem — walk-around
Full walk-around of a completed 6.5x12 tandem-axle utility as it ships.
1:18 · October 2025
- Tandem axles
- All-aluminum frame and deck
Narrated · captions available in the player
All clips
1 of 4
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
The number that matters
2,990 lb GVWR minus 714 lb base trailer weight equals 2,276 lb estimated base payload.
Payload decreases as options are added. Confirm cargo, tongue weight, and tow-vehicle ratings before towing.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.

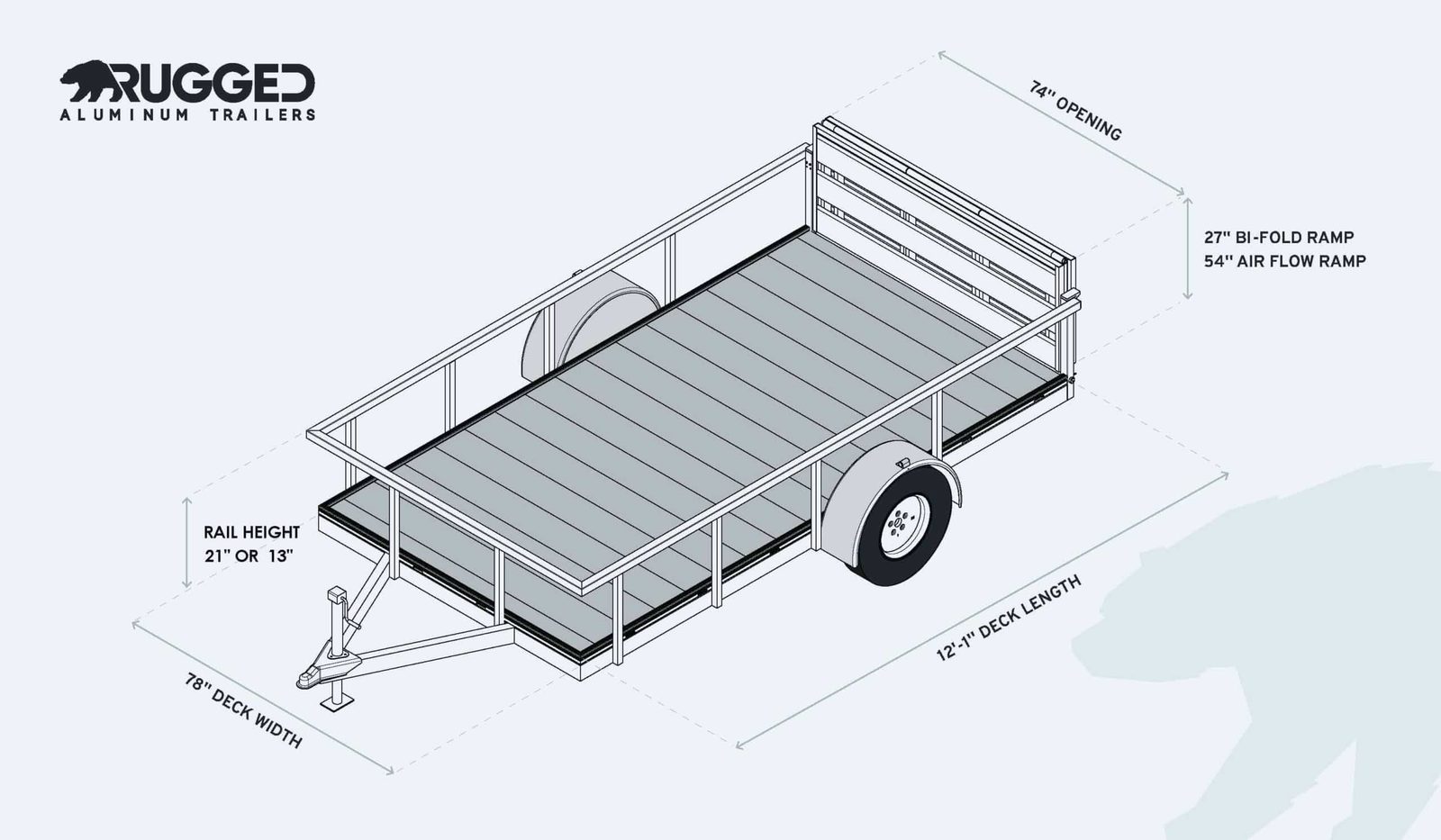

- 15′ 4″
- 100″
- 714 lb
- 2,990 lb
- 2,276 lb
Dimensions & Weight
- Standard Size
- 6.5' x 12' Single Axle Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 4″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 32″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Single 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- Optional
- Lights
- Optronics L.E.D.
- Electric Plug
- 4-Way Flat
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.

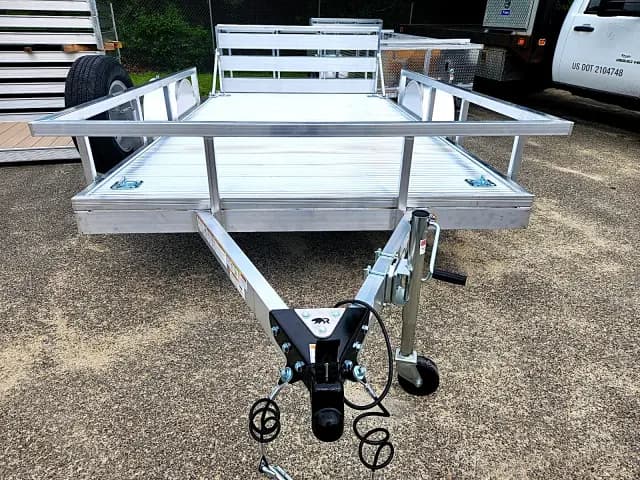

Real builds of this model
Actual trailers of this exact model lead the list. Current Builds can start with mapped options; Previous Builds are clearly marked for inspiration.

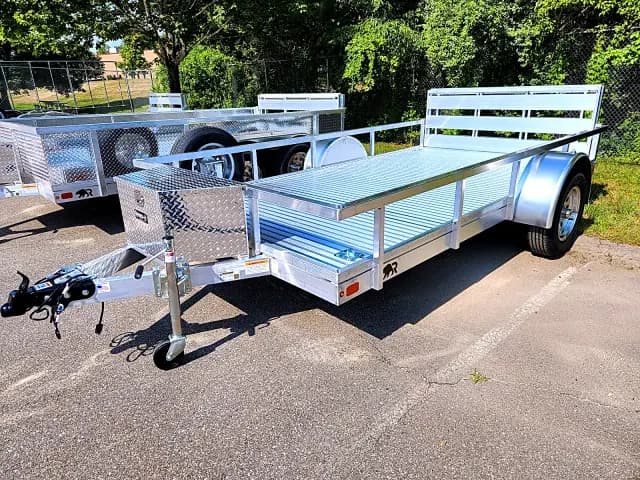

Real build8 photos6.5' x 12' · Utility · Powersports
6.5' x 12' Single axle Utility
- 15" Aluminum Spare
- 13" Perimeter Rail
Priced in the configurator
Payload2,276 lb
Previous build · Closest current model: 6.5' x 12'. Availability may differ.

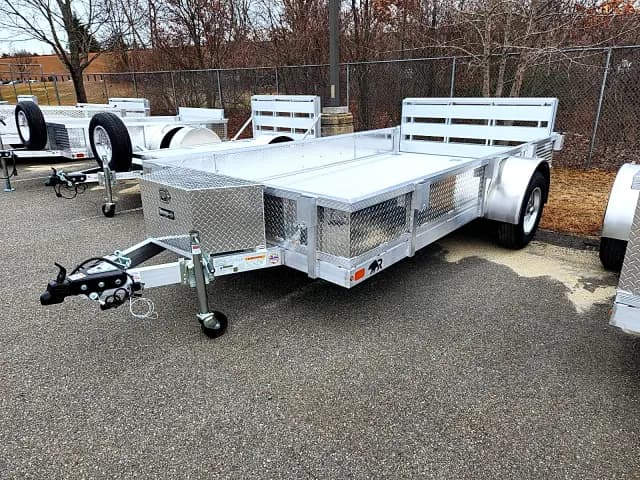

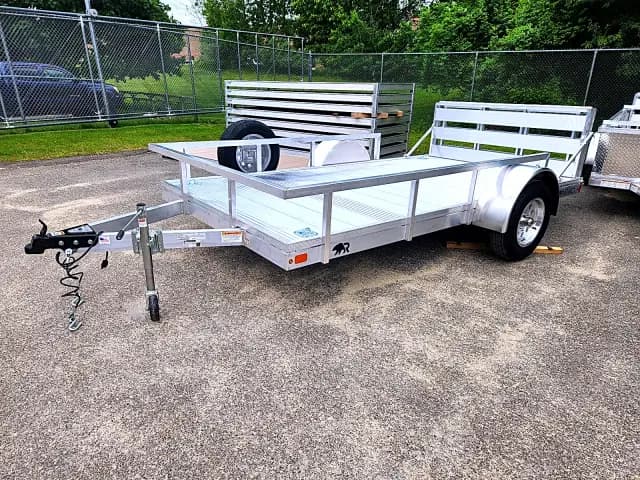

Real build7 photos6.5' x 12' · Utility · Powersports
6.5' x 12' Single axle Utility
- 15" Aluminum Spare
- 48" Bi-Fold Ramp
Priced in the configurator
Payload2,276 lb
Previous build · Closest current model: 6.5' x 12'. Availability may differ.

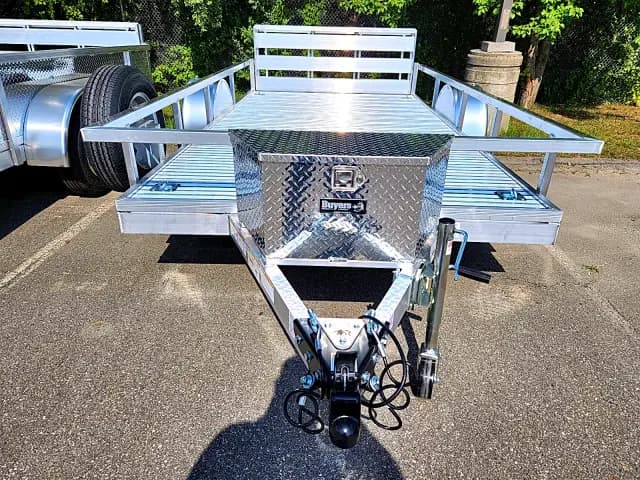

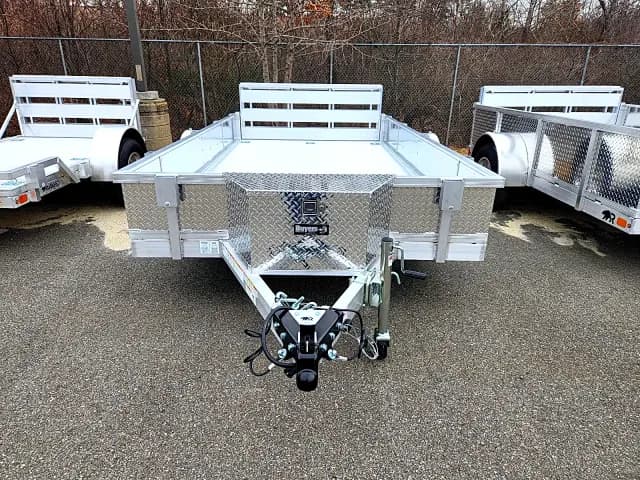

Real build8 photos6.5' x 12' · Utility · Powersports
6.5' x 12' Single axle Utility
- 48" Bi-Fold Ramp
- Aluminum Tongue Box
Priced in the configurator
Payload2,276 lb
Previous build · Closest current model: 6.5' x 12'. Availability may differ.
Customer experiences
What Rugged owners share.

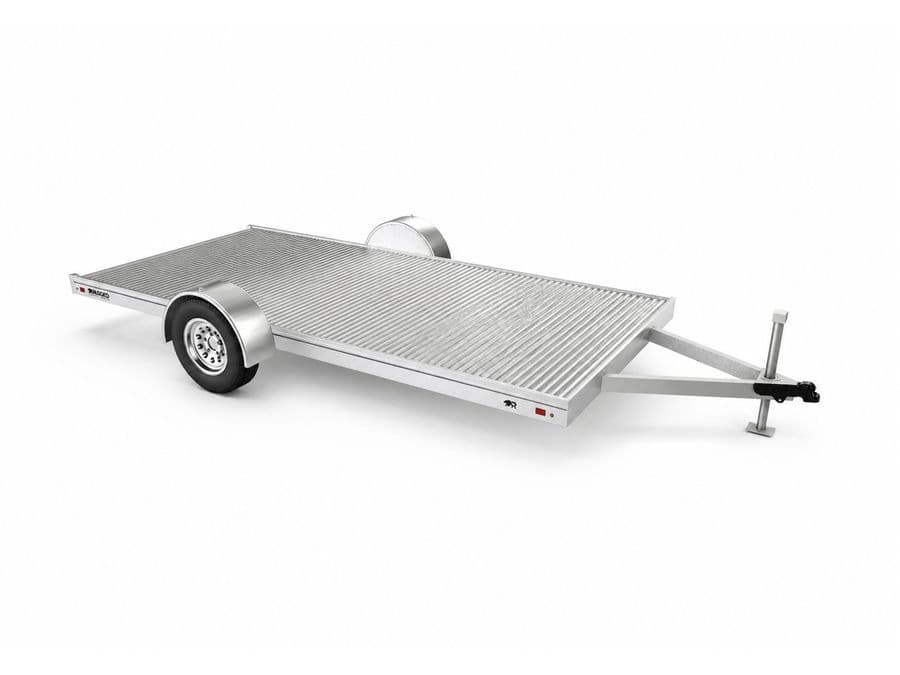

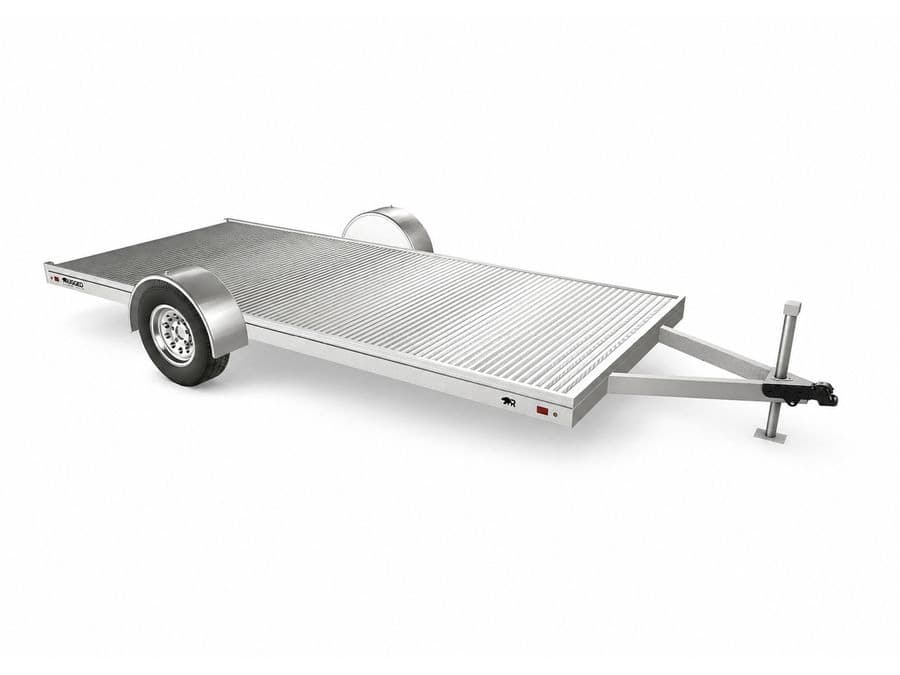

Compare the family
Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6.5 × 12 Open Utility Trailer
Choose a starting configuration, then adjust every available option and see the current price.
