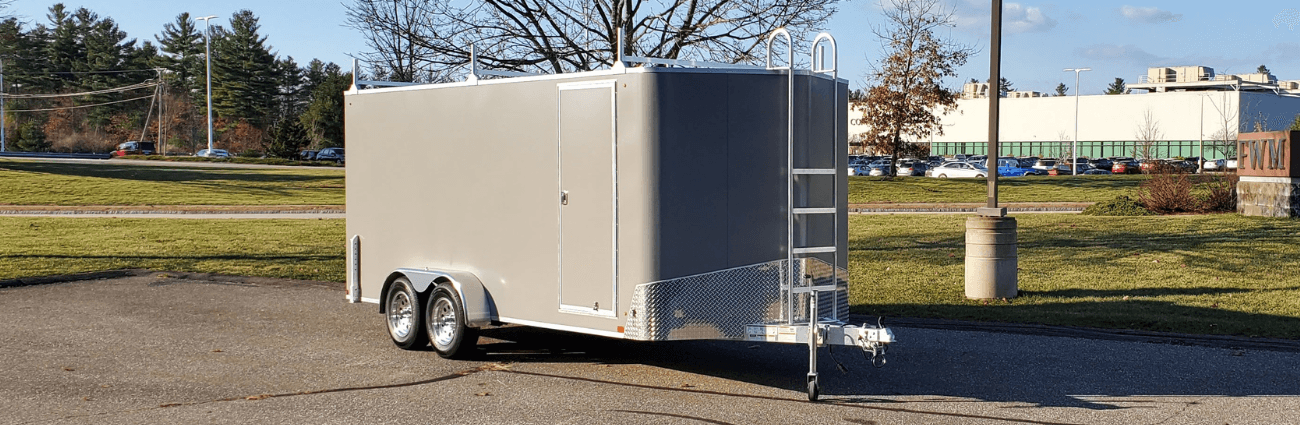

Rugged 7.5 × 16 Wide Enclosed
Our biggest box. Widest, longest, and still all aluminum.
- From
- $10,265
- Clear interior cargo
- 87″ W × 192″ L × 84″ H
- Rear clear opening
- 80″ W × 83″ H
Most-built setup
$11,995
Start with this setupEnter your ZIP — see your delivered price.
Buy direct, risk-free
- Refundable 25% order deposit The amount due today is a 25% refundable order deposit. It remains refundable until you approve the final written Build Order. Rugged reviews the submitted configuration before approval; required changes are shown in a new written revision. A higher approved total requires your explicit authorization for the difference. If the approved 25% target is lower, Rugged refunds the excess to the original payment method.
- You approve the exact build Nothing enters production until you approve the final order.
- Five-year structural warranty Built and supported by Rugged in Hudson, New Hampshire.
- Delivery reviewed before production Your selected fulfillment method and complete price are reviewed with you.
Typically ready in about 3 weeks.
Build & PriceNot sure what you need? Call 603.324.7402 or text us.
Have a factory specialist recommend the setup
Enter your ZIP — see your delivered price.
Location lookup by Google Maps. Privacy
Tax and registration: handled in your state — we don't collect them. Details
Built in Hudson, NH50 years in aluminum500+ real builds
Remote-buying confidence
See it before ordering.
Choose the proof you need before starting your order.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.
- 01All-aluminum structural frame
Structural aluminum shell
Main rails, crossmembers, wall studs, and roof bows form the enclosed body structure.
- 02Lockable enclosed body
Lockable cargo body
The enclosed V-nose body protects tools and cargo from weather and casual access.
- 03Factory-engineered upfits
Configured access
Choose compatible rear-door, side-door, interior, and electrical options in the configurator.
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- Pending production validation
- Pending production validation
Full specifications
Cargo space
- Clear interior cargo
- 87″ W × 192″ L × 84″ H
- Interior height
- 84″ full standing height
- V-nose depth (beyond the straight box)
- 26″
- Nominal floor area
- 120 sq ft
Doors & access
- Rear clear opening
- 80″ W × 83″ H
- Side-door clear opening
- 33″ W × 83″ H
Towing & road footprint
- Overall road dimensions
- 102″ W × 259″ L × 103″ H
- Deck height
- 17″
- Hitch height
- 16″
- Axle configuration
- 2 × 3,500 lb axles
Construction
- Structural frame
- All-aluminum structural frame
- Main frame
- 2 × 5 × 3/16″ rectangular aluminum tube
Ratings
- GVWR Rating
- 7,000 lb
Engineer-measured working dimensions for planning your build. Your final order confirms the production specification before fabrication.
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Compare the family

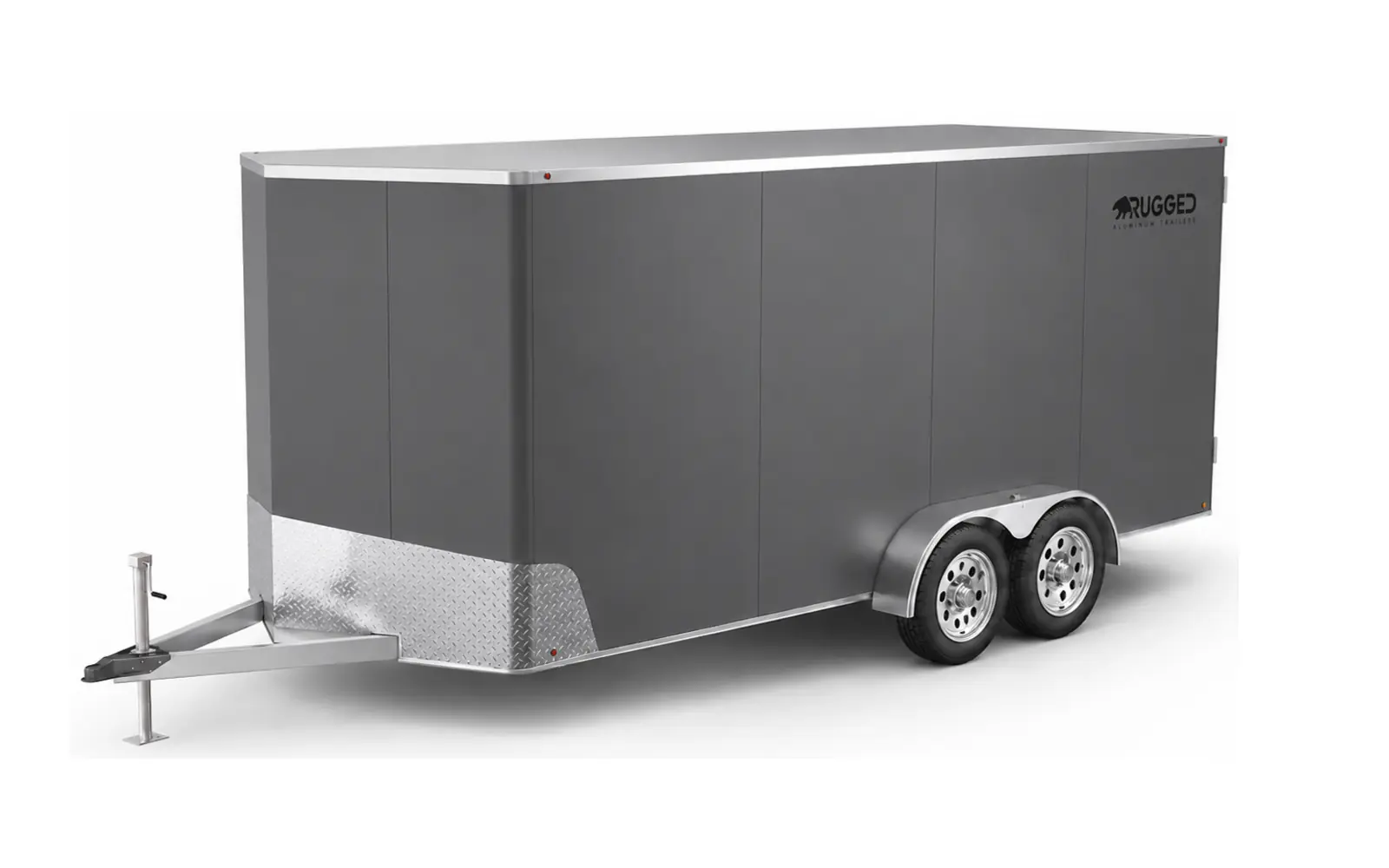

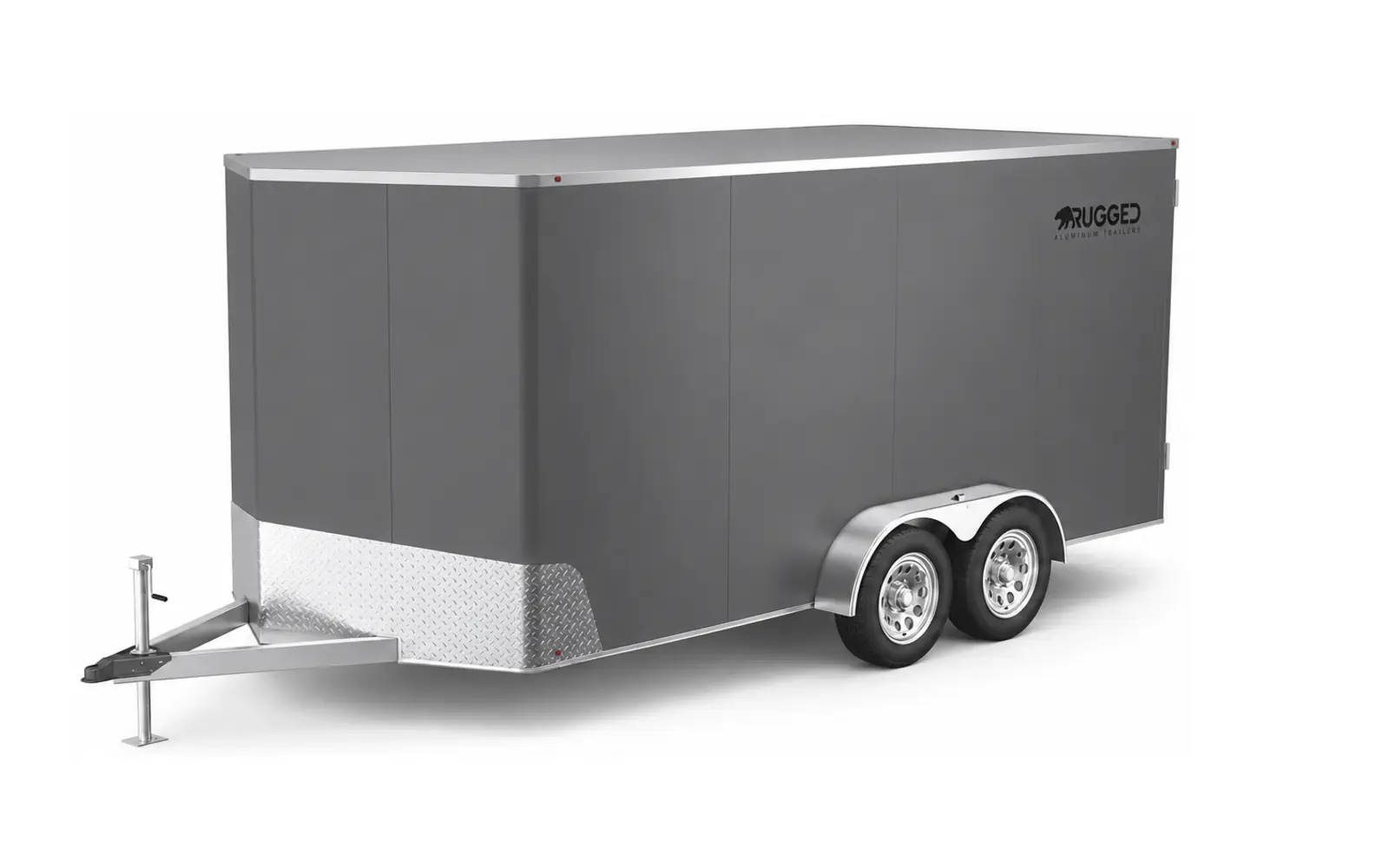

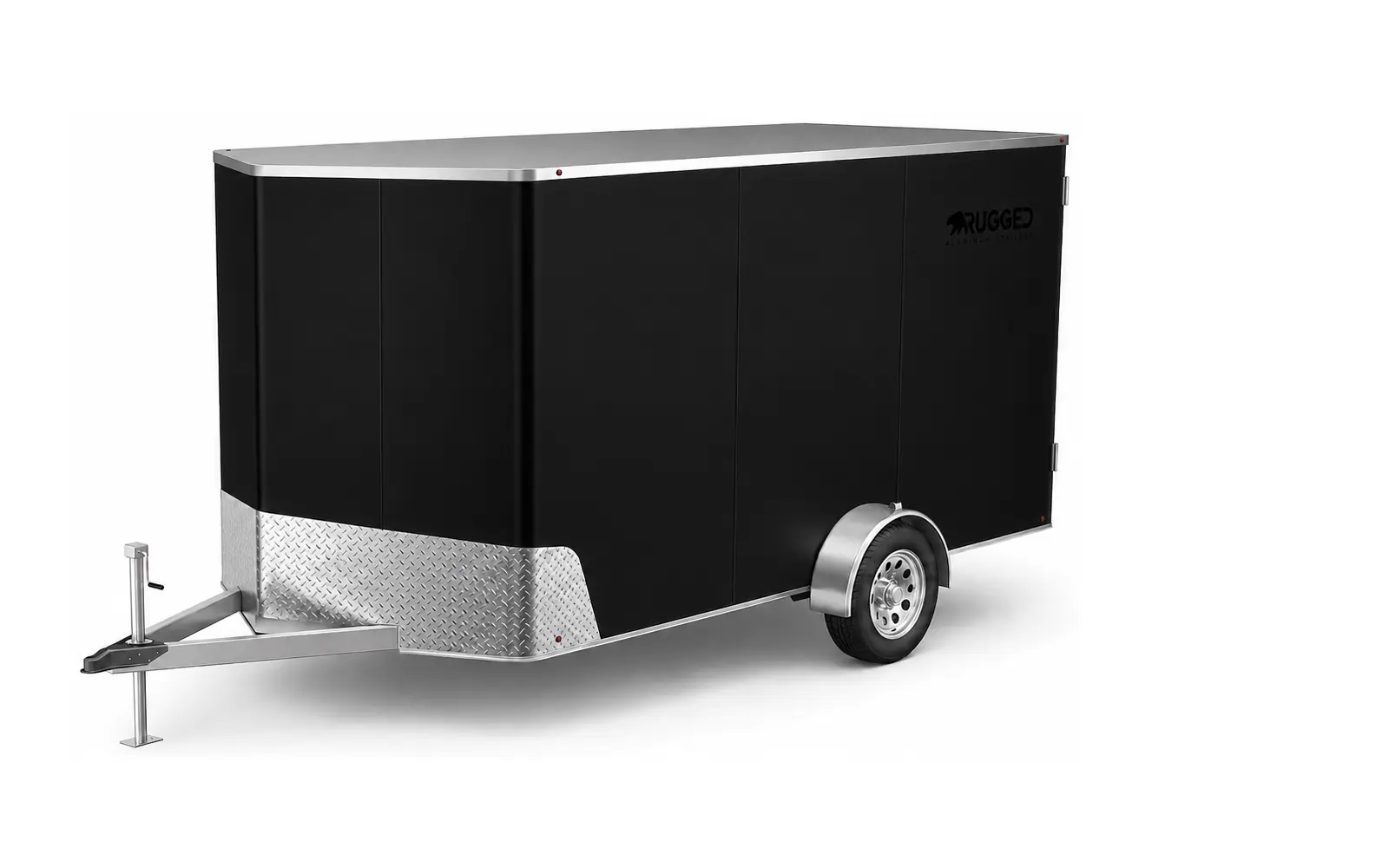

Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your Rugged 7.5 × 16 Wide Enclosed
Choose a starting configuration, then adjust every available option and see the current price.
