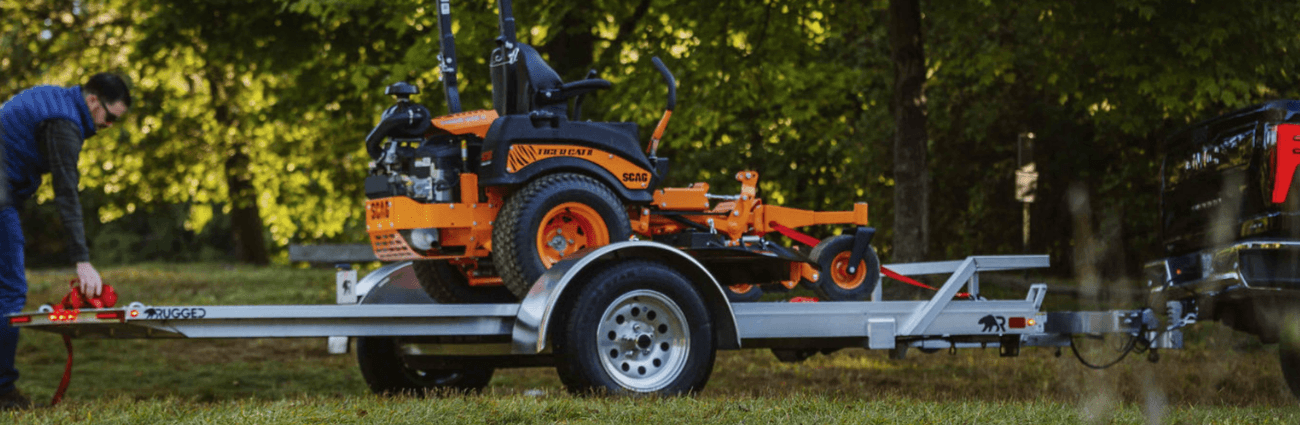

Patrick uses his Rugged trailer in demanding Florida weather. Its light weight, corrosion-resistant aluminum construction, and Rugged's support have made it a dependable part of his landscaping business.
1 / 6
- Base trailer
- All-aluminum
- Deck
- 6' x 13.5'
- Est. base payload
- 2,040 lb
- GVWR
- 2,990 lb
- Est. base weight
- 950 lb
Exact model shownManufactured by FWM Inc. in Hudson, New Hampshire50+ years of aluminum manufacturing500+ completed builds documented in the Rugged archive
Tilt · Single axle
6 × 13.5 Single Axle Tilt Trailer
Rugged 6 x 13.5 Single Axle Tilt Trailer — all-aluminum tilting deck, 2,990 lb GVWR, 2,040 lb payload. Drive-on loading, no separate ramp. Delivered or picked up.
Base trailerBefore options and delivery
$5,895
Enter ZIP for your exact estimate
Built after approval. Rugged manufactures your trailer after the final Build Order is confirmed, so you configure the exact version your work requires.
Calculate delivery to your ZIP
Enter your ZIP for Rugged Home Delivery from our Hudson, NH factory.
Enter your ZIP for an exact Rugged Home Delivery price.
Tax, title, registration, and related fees are paid by you in your home state when you register the trailer, if applicable; Rugged does not collect or handle them.
- Typical configured range
- $6,629–$7,363
- Deck
- 6' x 13.5'
- Est. base payload
- 2,040 lb
- GVWR
- 2,990 lb
- Est. base weight
- 950 lb
Estimated — final weight and payload are confirmed after factory weigh-in.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- Production: about 3 weeks after Build Order approval
- Pickup: Hudson, New Hampshire
- Warranty: Five years on the aluminum structure for retail use, one year for commercial use, with no warranty registration to file.
- Request a live factory video walkaround
Remote-buying confidence
See it before ordering.
Choose the proof you need before reserving.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.

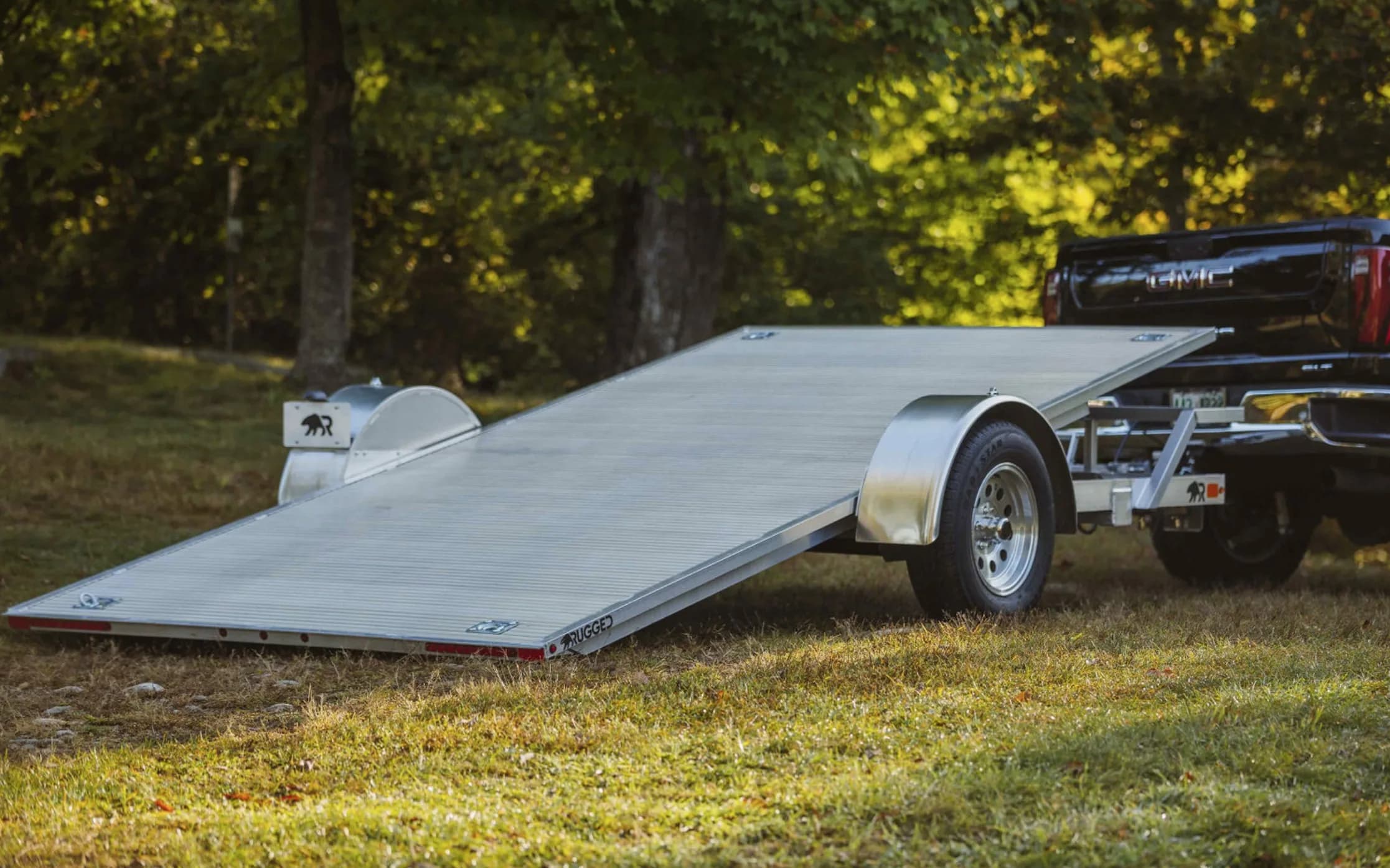

- 01Full-deck tilt system
The deck becomes the ramp
The aluminum deck pivots toward the ground for drive-on loading without a separate gate.
- 02All-aluminum structural frame
Corrosion-resistant structure
The load-bearing frame is aluminum rather than a painted steel chassis.

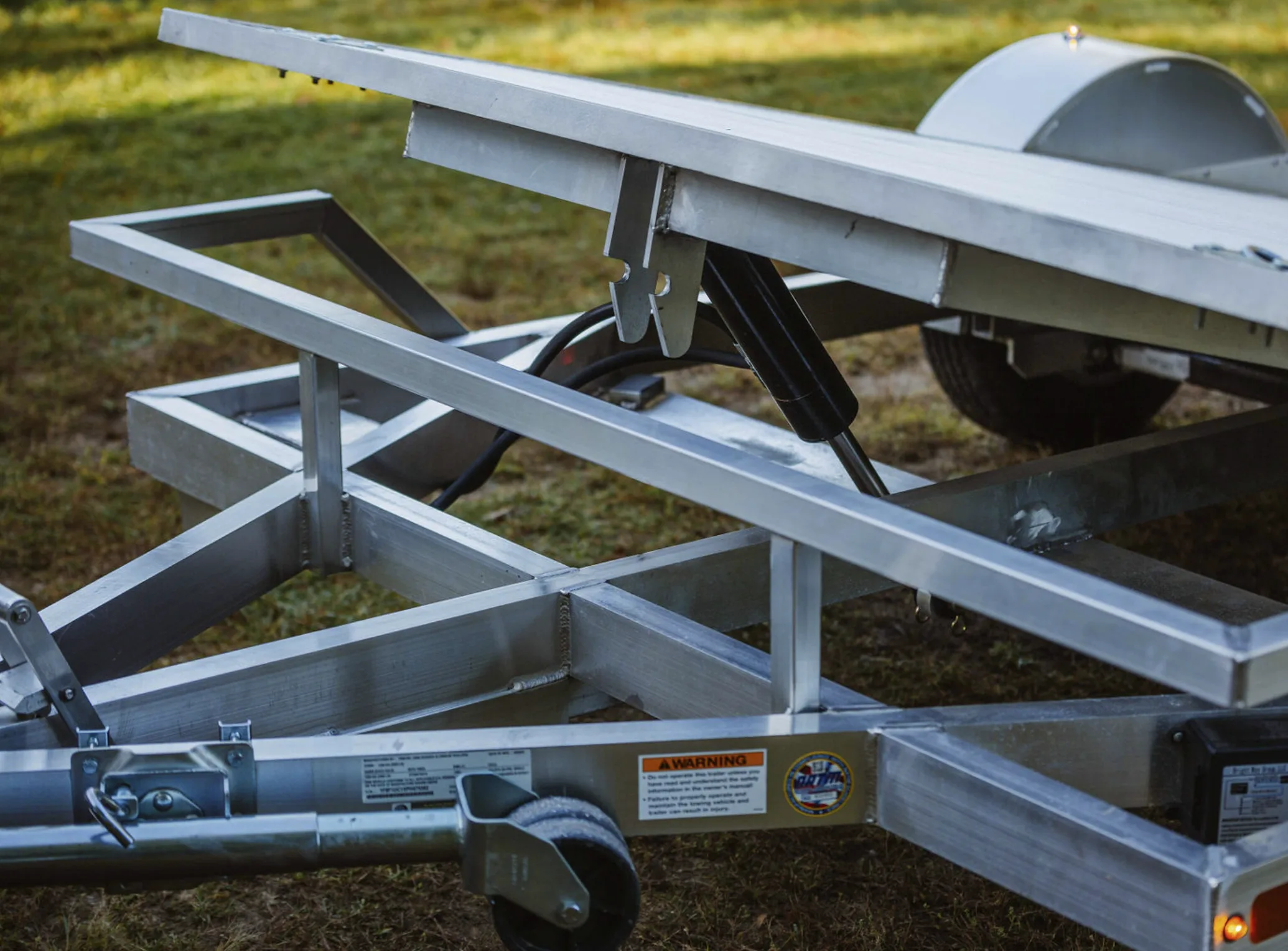

- 03Available Auto TiltLock hydraulic latch
Locked the moment it levels
On equipped models, Auto TiltLock latches the hydraulic tilt automatically when the deck returns to ride height — no separate pin to set before towing.

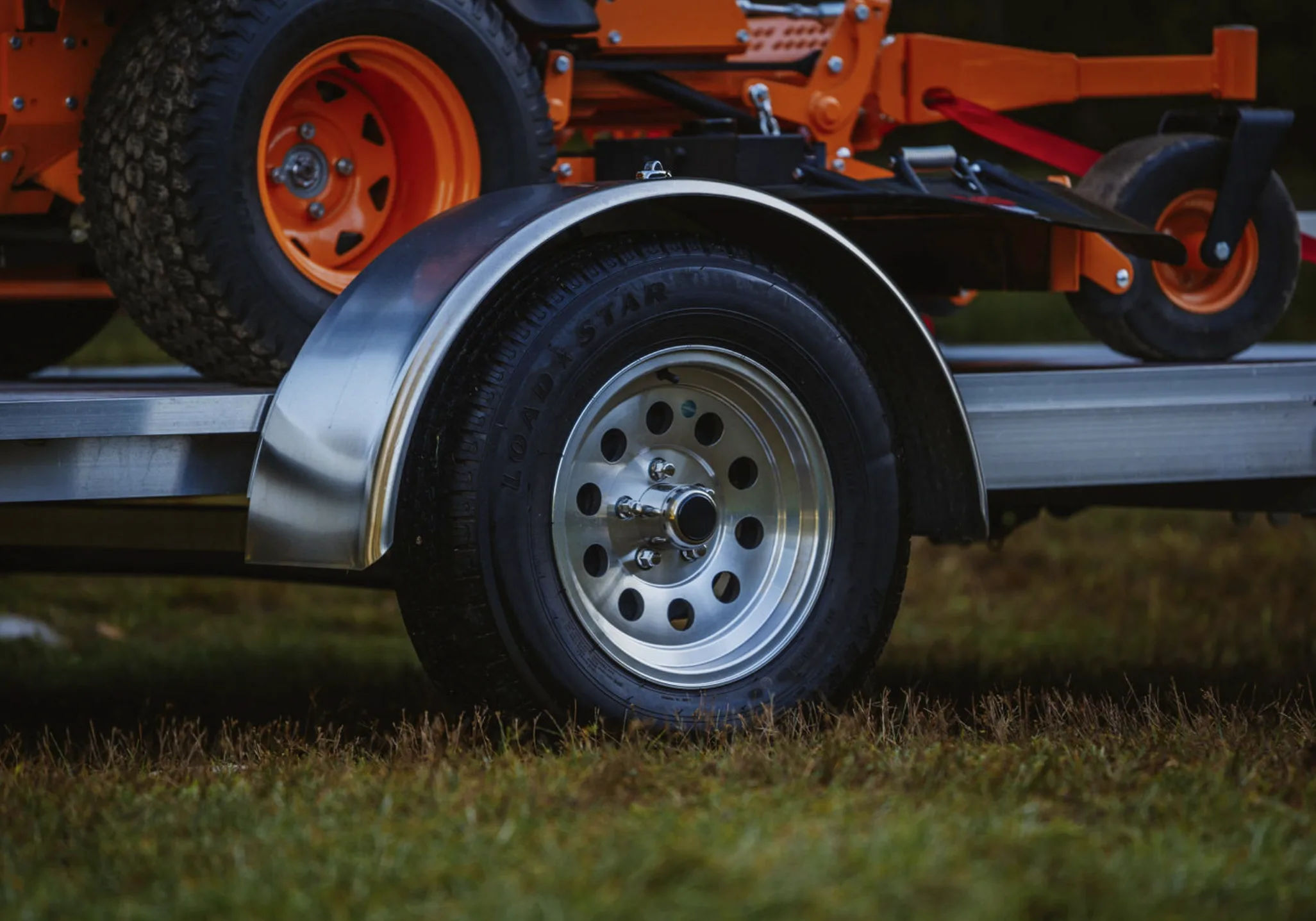

- 0415″ × 6″ aluminum mod wheel · ST205/75R-15
Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.
Exact completed build6 x 13.5 Single Axle Tilt Trailer
6x13.5 tilt — loading demo
Loading demo on the 6x13.5 single-axle tilt — mowers and ATVs load with no ramps at all.
1:29 · October 2025
- Ramp-free tilt loading
- Torsion axle ride
- All-aluminum frame
All clips
1 of 4
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
The number that matters
2,990 lb GVWR minus 950 lb base trailer weight equals 2,040 lb estimated base payload.
Payload decreases as options are added. Confirm cargo, tongue weight, and tow-vehicle ratings before towing.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
- 950 lb
- 2,990 lb
- 2,040 lb
Dimensions & Weight
- Standard Size
- 6' x 13.5' Single Axle Tilt Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 5″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 32″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Single 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- Optional
- Lights
- Optronics L.E.D.
- Electric Plug
- 4-Way Flat
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real tilt builds
Real trailers from the same family, ranked by size and model relevance. Current pricing appears only when the configuration maps to today’s catalog.
Real build7 photos6.5' x 20' tandem · Tilt · Powersports
6.5' x 20' Tandem Tilt
- Aluminum Tongue Box
- 15" Aluminum Spare
As shown$13,252
Payload5,350 lb
Built new in typically 3 weeks
Real build5 photos6.5' x 18' tandem · Tilt · Low-clearance loading
6.5' x 18' Tandem Tilt
- Swivel D-Ring
- Front Bumper Rail
As shown$12,463
Payload5,550 lb
Built new in typically 3 weeks
Real build9 photos6.5' x 20' tandem · Tilt · Low-clearance loading
6.5' x 20' Tandem Tilt
- HD Rub Rail
- 15" Aluminum Spare
As shown$12,118
Payload5,350 lb
Built new in typically 3 weeks
Customer experiences
What Rugged owners share.
Compare the family
Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6 × 13.5 Single Axle Tilt Trailer
Choose a starting configuration, then adjust every available option and see the current price.
