Patrick uses his Rugged trailer in demanding Florida weather. Its light weight, corrosion-resistant aluminum construction, and Rugged's support have made it a dependable part of his landscaping business.
1 / 5
- Base trailer
- All-aluminum
- Deck
- 8' x 22'
- Est. base payload
- 9,400 lb
- GVWR
- 11,400 lb
- Est. base weight
- 2,000 lb
Base trailer renderManufactured by FWM Inc. in Hudson, New Hampshire50+ years of aluminum manufacturing500+ completed builds documented in the Rugged archive
Deckover · Tandem axle
8 × 22 Tandem Axle Deckover Trailer
A longer 22-foot full-width aluminum deckover for buyers who need additional deck length for equipment, materials, and mixed loads.
Base trailerBefore options and delivery
$12,149
Enter ZIP for your exact estimate
Built after approval. Rugged manufactures your trailer after the final Build Order is confirmed, so you configure the exact version your work requires.
Calculate delivery to your ZIP
Enter your ZIP for Rugged Home Delivery from our Hudson, NH factory.
Enter your ZIP for an exact Rugged Home Delivery price.
Tax, title, registration, and related fees are paid by you in your home state when you register the trailer, if applicable; Rugged does not collect or handle them.
- Typical configured range
- $13,834–$14,954
- Deck
- 8' x 22'
- Est. base payload
- 9,400 lb
- GVWR
- 11,400 lb
- Est. base weight
- 2,000 lb
Estimated — final weight and payload are confirmed after factory weigh-in.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
- Production: about 3 weeks after Build Order approval
- Pickup: Hudson, New Hampshire
- Warranty: Five years on the aluminum structure for retail use, one year for commercial use, with no warranty registration to file.
- Request a live factory video walkaround
Remote-buying confidence
See it before ordering.
Choose the proof you need before reserving.
Construction
Every component earns its place
See the materials, dimensions, and rated components used in this model family.

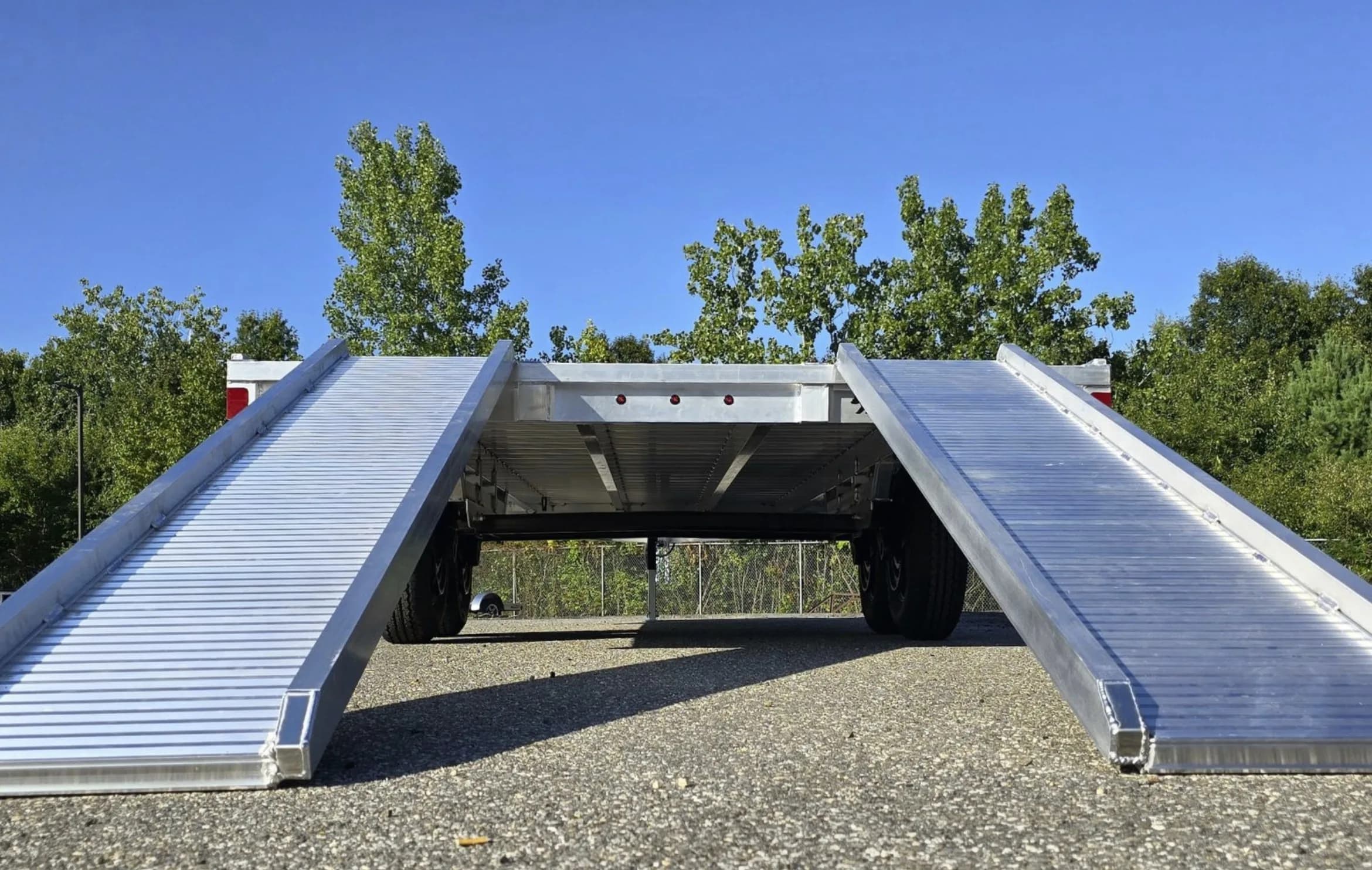

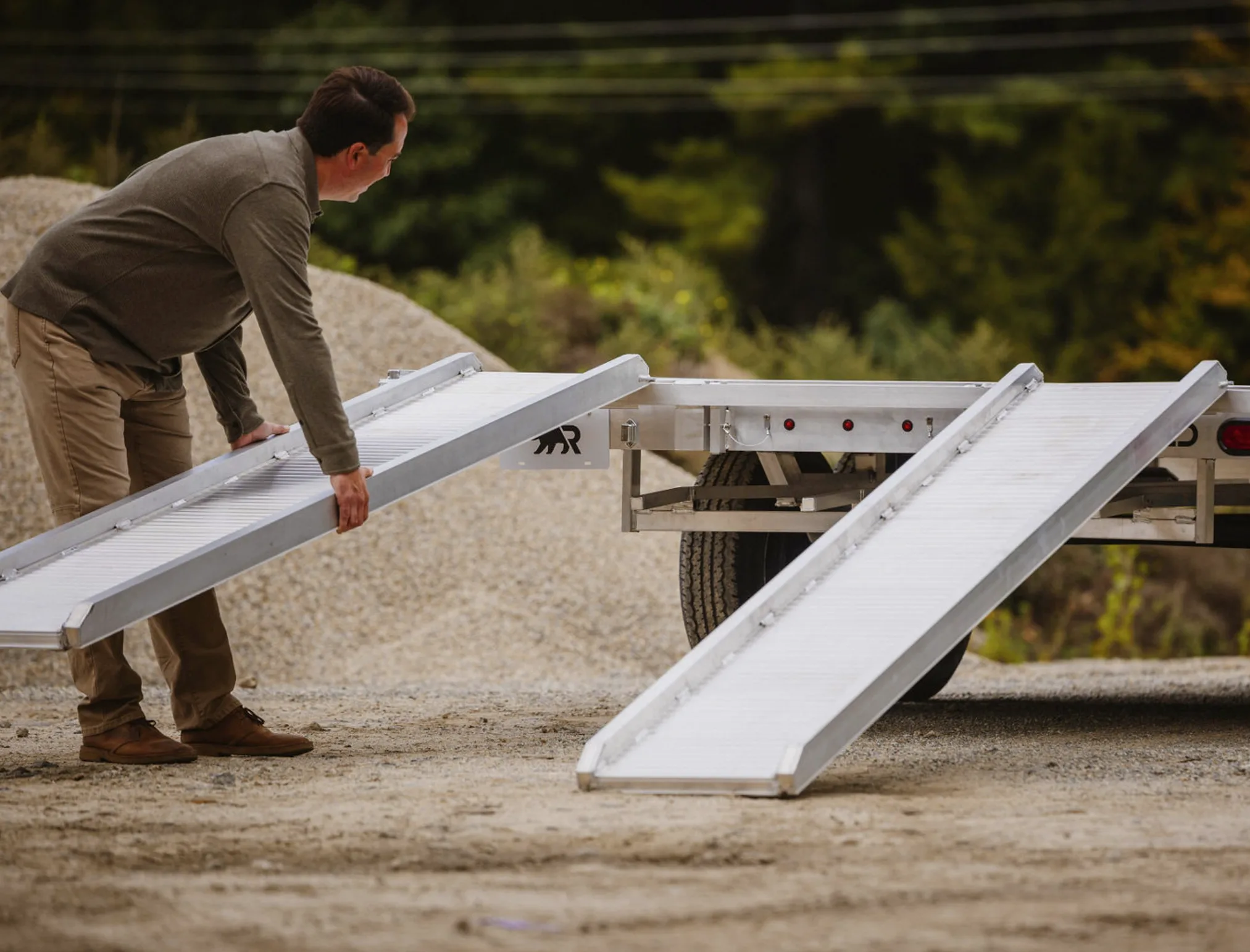

- 01Over-wheel deck geometry
Full width without wheel wells
The deck sits above the tires to create a flat loading surface for wide machines, pallets, and side-loaded material.

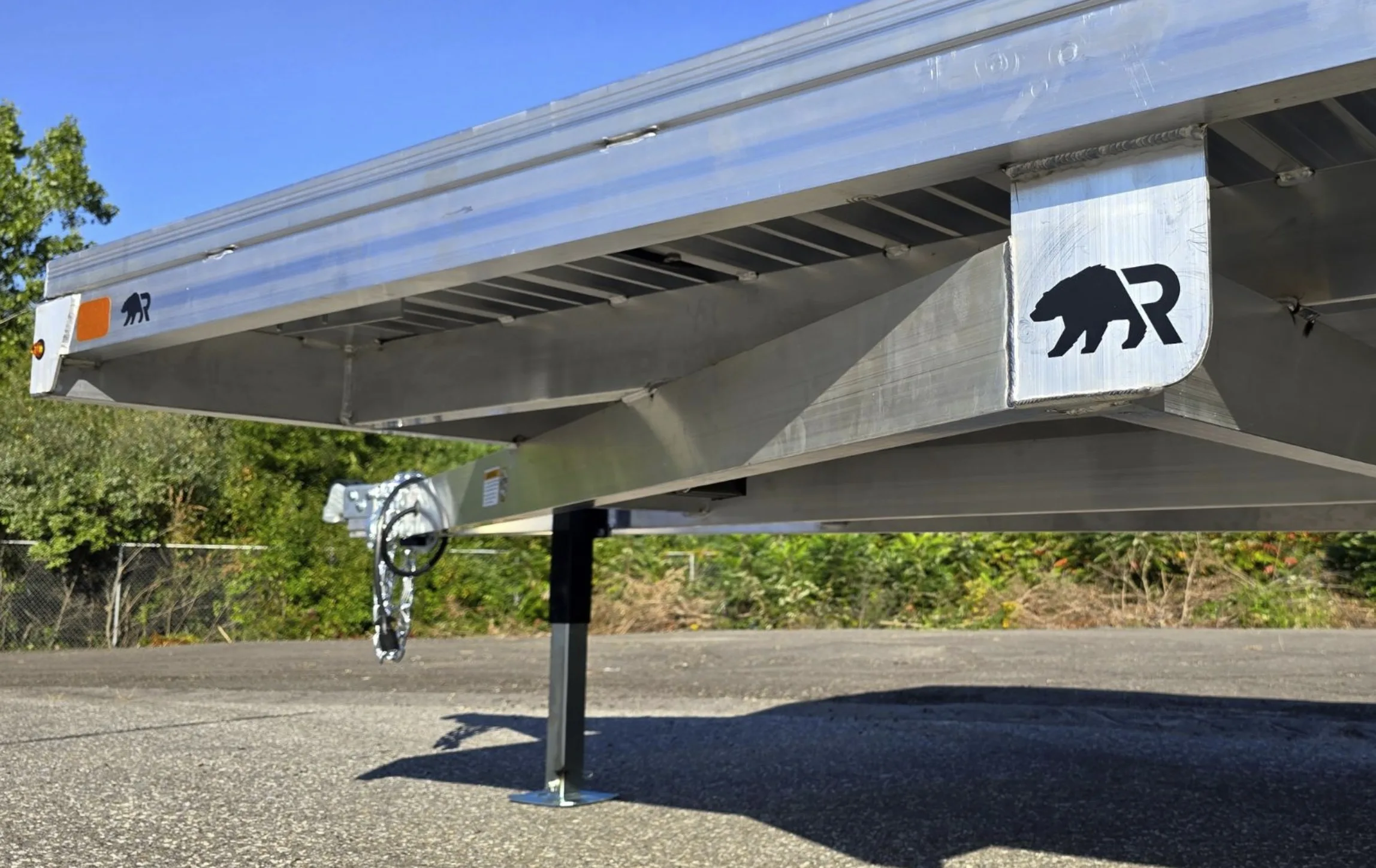

- 02All-aluminum structural frame
Aluminum structure
The load-bearing frame and deck structure are aluminum.

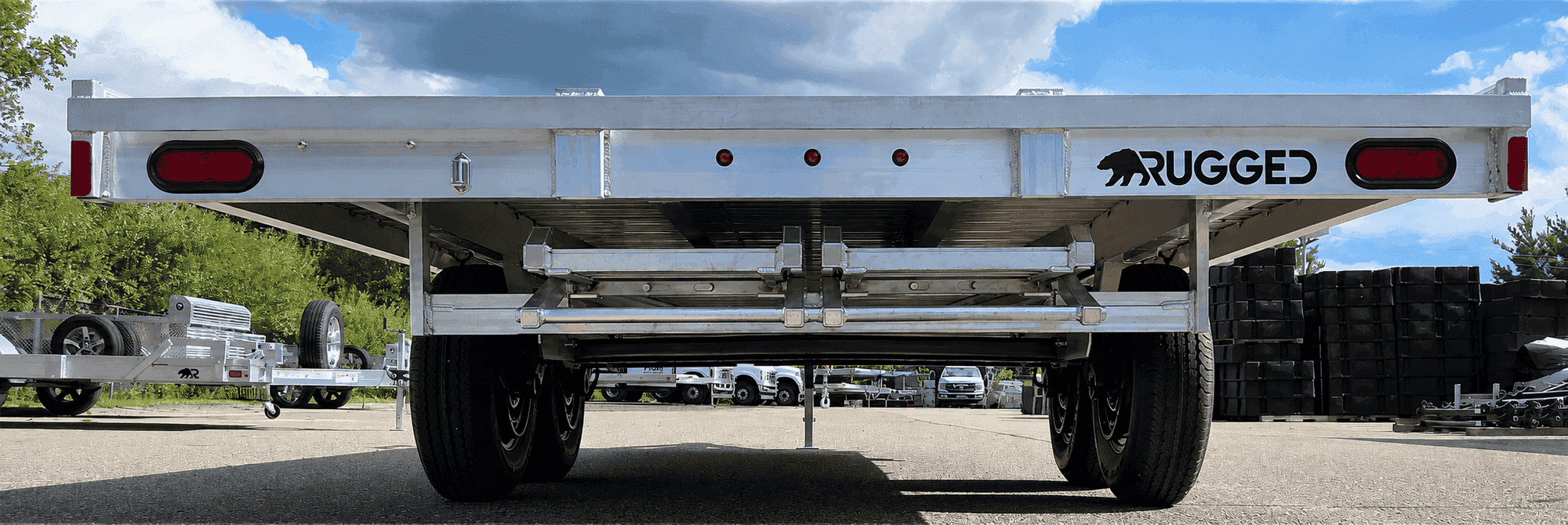

- 03Rated steel running gear
Rated components
Axles, coupler, brakes, and wear components are selected for the published trailer rating.

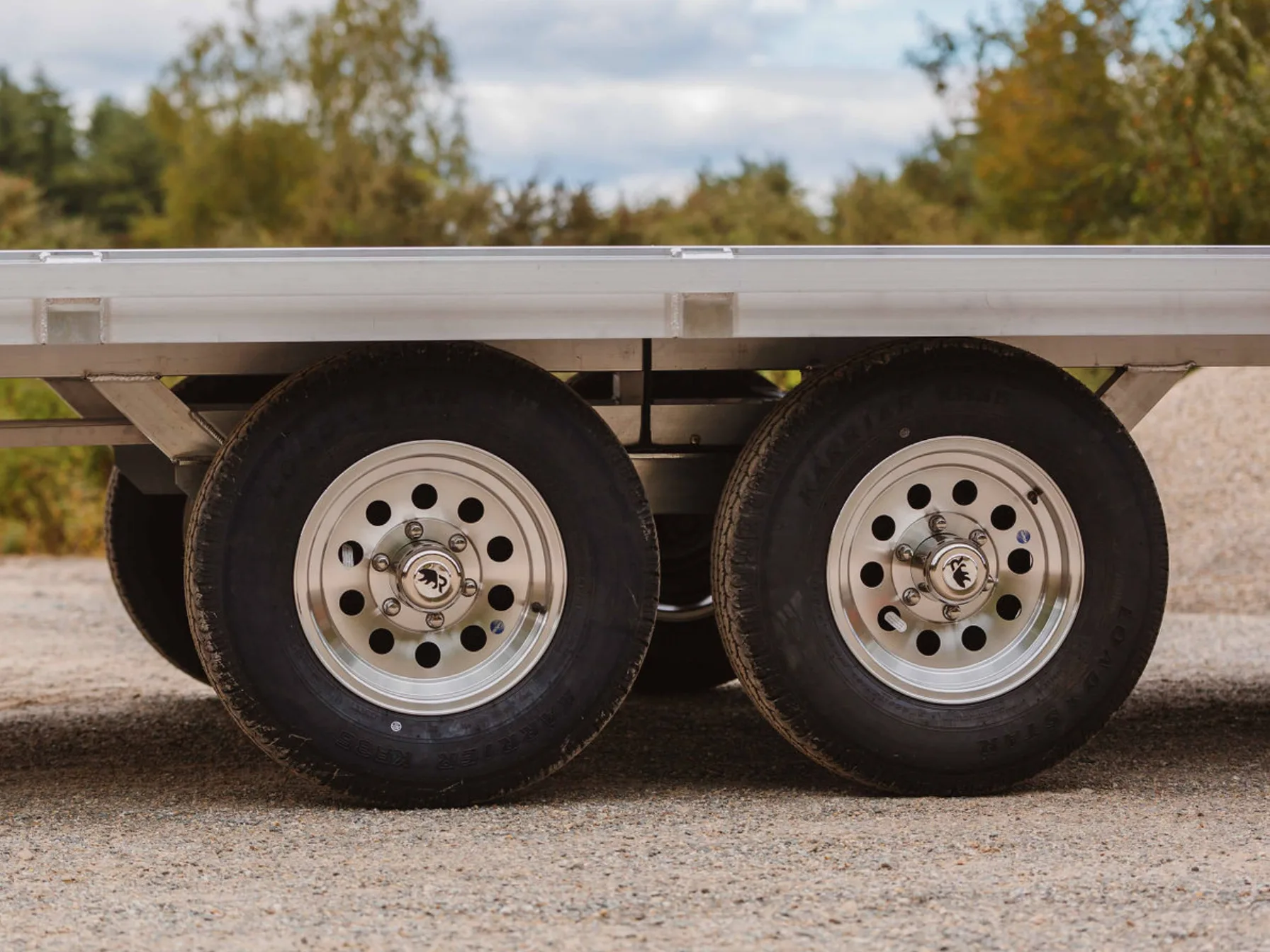

- 0415″ × 6″ aluminum mod wheel, 6-lug · ST225/75R-15
Deckover rating, kept low
Six-lug 15-inch aluminum wheels and ST225/75R-15 radial tires are part of the published deckover running-gear package.
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.

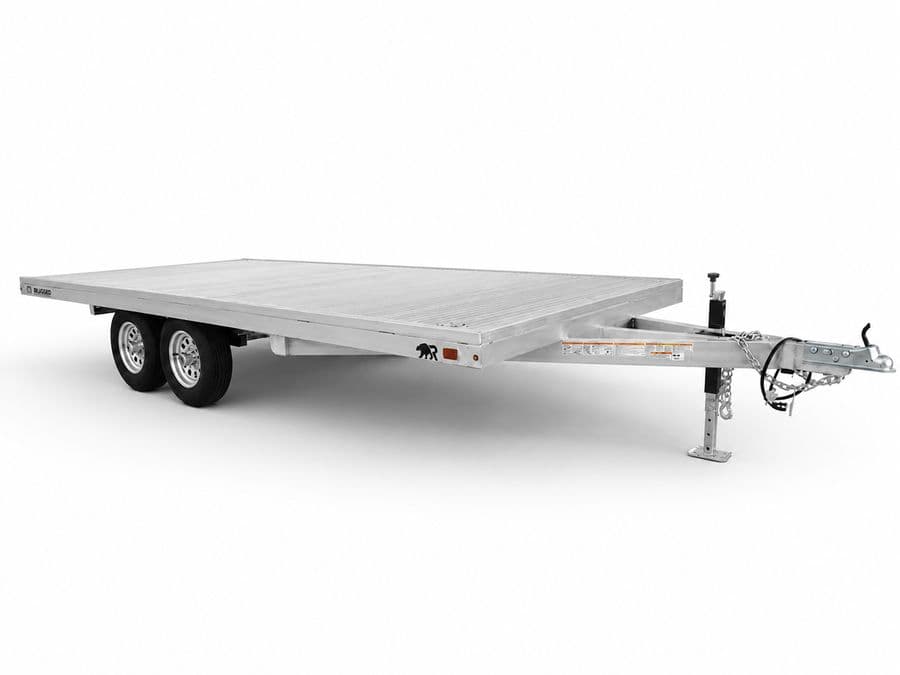

Similar size, real build8 x 20 Tandem Axle Deckover Trailer
8x20 deckover — walk-around
The 8x20 tandem deckover with a 10,000 lb payload, HD rub rail, and auto-latching stowaway ramps.
1:30 · August 2025
- 10,000 lb payload
- Auto-latching stowaway 101" ramps
- HD rub rail
Narrated · captions available in the player
All clips
1 of 2
Capacity and specifications
The numbers that define the trailer
Essential measurements stay visible. Detailed construction and running-gear information is organized below.
The number that matters
11,400 lb GVWR minus 2,000 lb base trailer weight equals 9,400 lb estimated base payload.
Payload decreases as options are added. Confirm cargo, tongue weight, and tow-vehicle ratings before towing.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
- 2,000 lb
- 11,400 lb
- 9,400 lb
Dimensions & Weight
- Standard Size
- 8' x 22' Tandem Axle Deckover Trailer
- Deck Height
- 34″
- Deck Width
- 96″
- Ramp Length
- 101″
- Ramp Incline
- 17°
- G.A.W.R. (Ea. Axle)
- 6,000 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 5″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- N/A
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Tandem 6,000 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel (6 Lug)
- Tire
- ST225/75R-15 Belted Radial
- Brakes
- 4 Wheel Electric
- Lights
- Optronics L.E.D.
- Electric Plug
- 7-Way Round
- Finish
- Natural Aluminum
All items listed are standard equipment unless marked.
Download spec sheet (PDF)Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real builds of this model
Actual trailers of this exact model lead the list. Current Builds can start with mapped options; Previous Builds are clearly marked for inspiration.
Real build8 photos8' x 22' tandem · Deckover · Equipment
8' x 22' Tandem Deckover
- Deckover Low Front Bumper Rail
- 15" Aluminum Spare
As shown$14,679
Payload9,400 lb
Built new in typically 3 weeks
Customer experiences
What Rugged owners share.

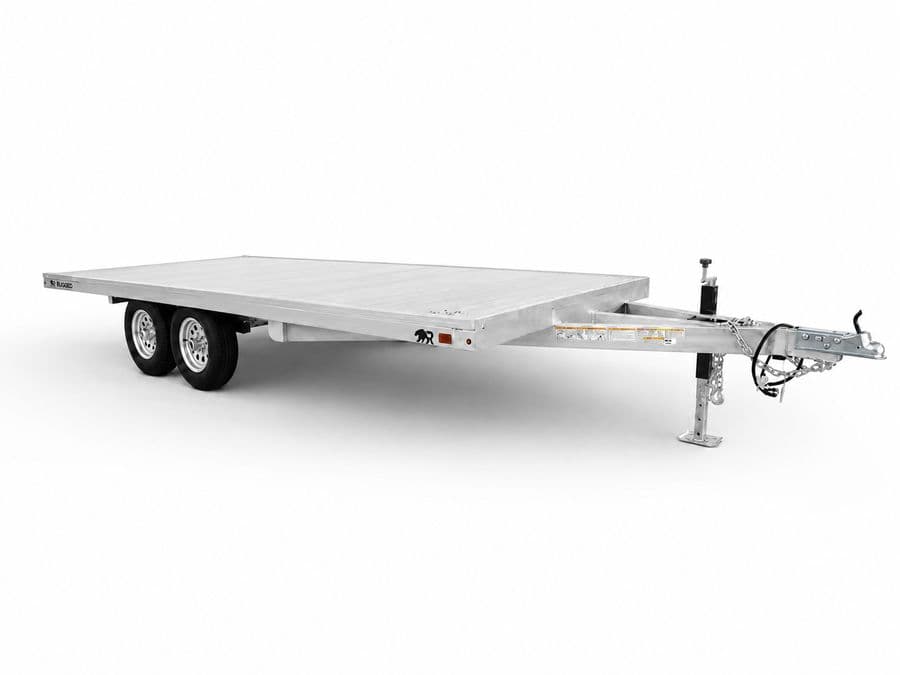

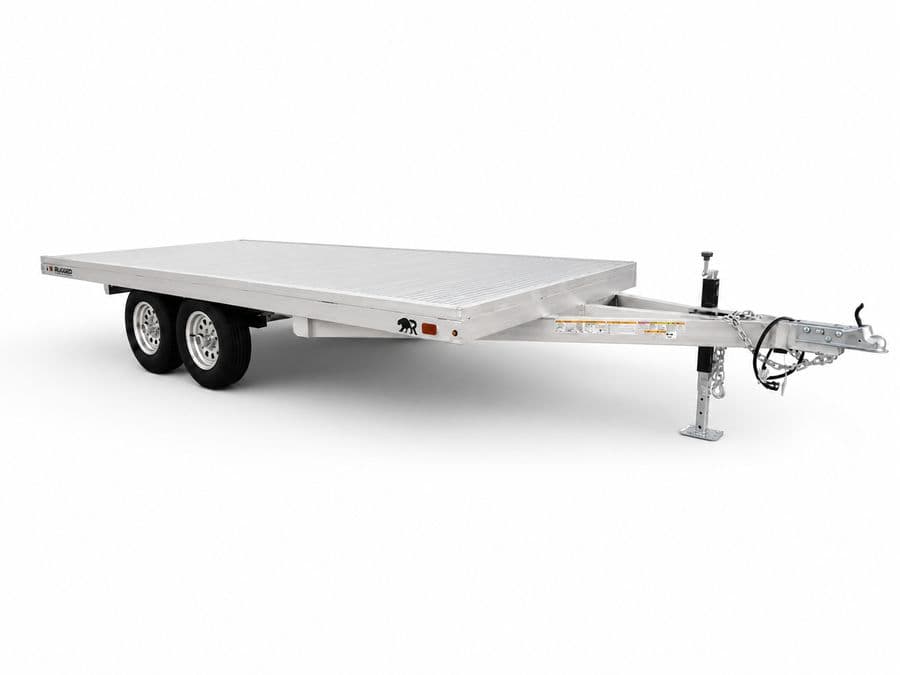

Compare the family
Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 8 × 22 Tandem Axle Deckover Trailer
Choose a starting configuration, then adjust every available option and see the current price.
