After a local dealer tried to steer him toward the wrong trailer, Anthony found a 6.5'x16' tandem Rugged configured around what he needed. He valued the straightforward transaction and the absence of high-pressure sales.
1 / 9
Perimeter rail, Bi-fold ramp
Options may vary.
6.5 × 16 Tandem Axle Trailer
Two extra feet for a tractor with a loader or a bagger.
- Starting price
- $7,599
Before options and delivery.
Typically ready in about 3 weeks after final-order approval.
Deck size 6.5' x 16'
Check dimensions- Payload (est.)
- 5,870 lb
- GVWR
- 7,000 lb
Popular setup
$9,535Includes these options:
- 13" Perimeter Rail – 6.5' x 16'
- 48" Bi-Fold Ramp – Autolatch – 6.5' Wide
- Swivel D-Ring – Bolt-On (×6)
+ 2 more options in this setup
Before delivery. Every option is editable.
Customize this setup25% order deposit, refundable until you approve the final written Build Order. Full terms
Nothing enters production until you approve the final order.
Five-year structural warrantyNot sure what you need? Call 603.324.7402 or text us.
Have a factory specialist recommend the setup
Enter your ZIP — see your delivered price.
Location lookup by Google Maps. Privacy
Tax and registration: handled in your state — we don't collect them. Details
Built in Hudson, NH50 years in aluminum500+ real builds
Remote-buying confidence
See it before ordering.
Choose the proof you need before starting your order.
Capacity and specifications
Check the fit
Dimensions, capacity and equipment for this model, all in one place.
- 19′ 10″
- 100″
- 1,130 lb
- 7,000 lb
- 5,870 lb
Base trailer specifications. Selected options can change weight, capacity and equipment.
Dimensions & Weight
- Standard Size
- 6.5' x 16' Tandem Axle Trailer
- G.A.W.R. (Ea. Axle)
- 3,500 lb
Structure
- Frame
- 4″ x 2″ x 3/16″ Tubular
- Tongue
- 5″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 4″ x 2″ x 3/16″ Tubular
- Fenders
- 10.75″ x 68″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Tandem 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 15″ x 6″ Aluminum Mod Wheel
- Tire
- ST205/75R-15 Belted Radial
- Brakes
- 4 Wheel Electric
- Lights
- Optronics L.E.D.
- Electric Plug
- 7-Way Round
- Finish
- Natural Aluminum

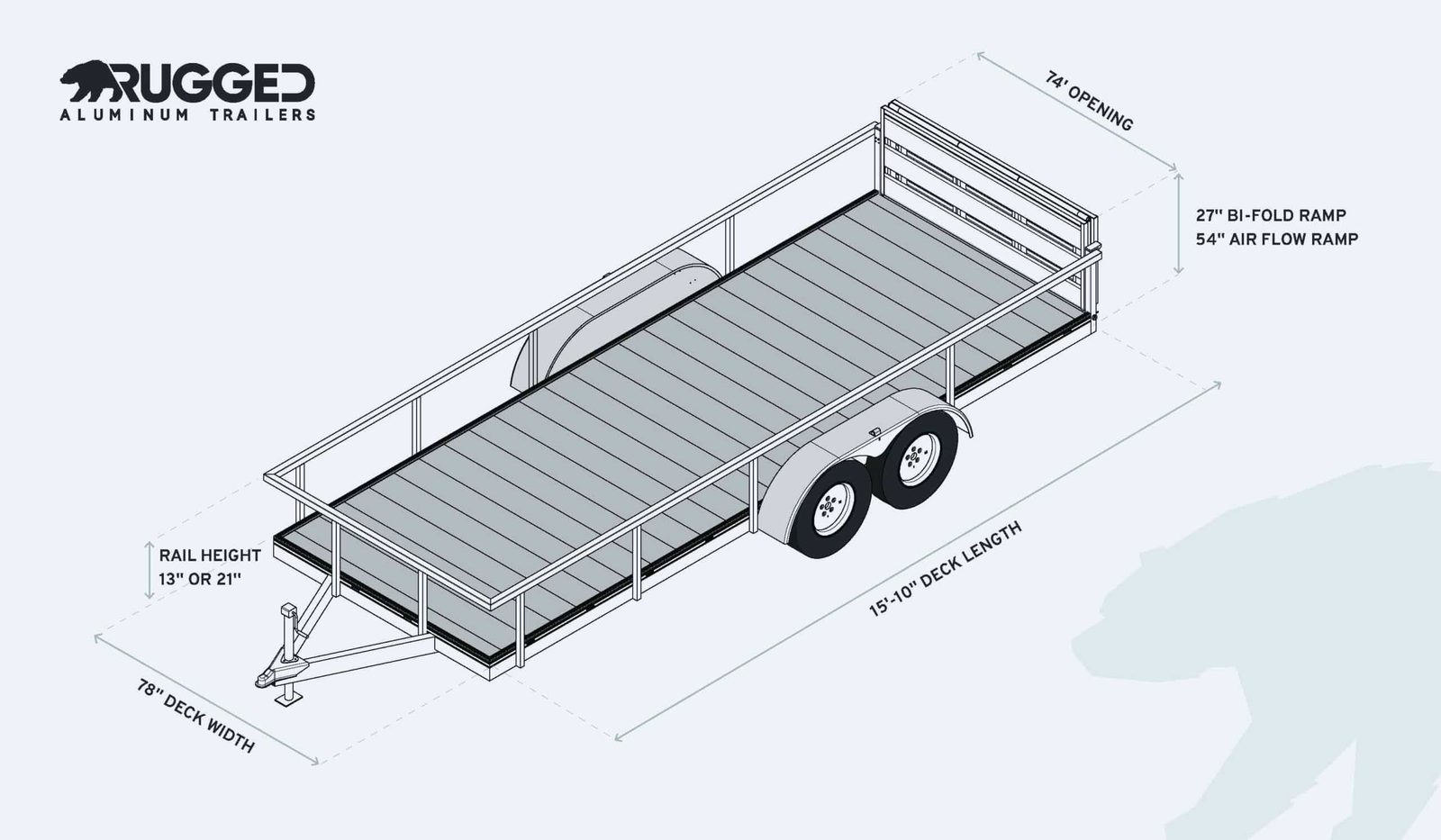

Factory dimension drawing
Make it yours
Optional equipment for this model. Open a category to explore, then use Build & Price to check prices and compatible combinations.
Side rails & containment
- Front Bumper Rail – 6.5' Wide
- Front Stone Guard – 6.5' Wide
- 13" Perimeter Rail – 6.5' x 16'
- 21" Perimeter Rail – 6.5' x 16'
- 13" Perimeter Rail – Aluminum Tread Plate – 6.5' x 16'
- 21" Perimeter Rail – Aluminum Tread Plate – 6.5' x 16'
- 13" Perimeter Rail – Aluminum Mesh – 6.5' x 16'
- 21" Perimeter Rail – Aluminum Mesh – 6.5' x 16'
Ramp & rear loading
- 48" Air Flow Ramp – Autolatch – 6.5' Wide
- 48" Bi-Fold Ramp – Autolatch – 6.5' Wide
- StowAway ramps — AutoLatch
- Tailgate for 6.5' Wide Trailer
Tie-downs & cargo control
- Swivel D-Ring – Bolt-On
- Aluminum L-Track Strips – Tie-Down System
- Stake Pockets – Welded
- Tie-Down Cutouts – Frame Extrusion
- Top Rail Track & Crossbar – 6.5' Wide
- Rub Rail with Stake Pocket System - 16'
Add-ons & upgrades
- Tarp Kit – Custom Housing – 6.5' Wide
- Aluminum Tongue Box
- Side-Mount Tongue Jack Upgrade
- Electric Jack upgrade
- 15" Aluminum Spare – Mod with Mount
- Coupler Lock - SS
- Quick-release fenders — removable & replaceable
- Trailer Deck Lighting Package
Construction
Engineering highlights
A closer look at the frame, deck, and available equipment.
Aluminum frame
A tubular aluminum frame supports the deck and rated running gear.
Weather-ready deck
Interlocking aluminum planks create a weather-resistant loading surface.
AutoLatch option
Available AutoLatch-equipped ramps and tailgates latch automatically when closed.
Independent suspension
Torsion suspension moves independently at each wheel, without leaf-spring hardware.
Accessible hardware
The jack, coupler, and safety cables stay accessible for inspection and service.
15-inch aluminum wheels
15-inch aluminum mod wheels with belted radial tires on 6-foot-and-wider open models.
Design notes & full-size photos
Structure without unnecessary weight
The tubular aluminum frame carries the deck and rated running gear without a painted steel chassis.
4 × 2 × 3/16-inch tubular aluminum
A deck made for the weather
Interlocking aluminum deck extrusions provide a weather-resistant loading surface without wood deck boards.
Custom aluminum extrusion
Latched the moment it closes
Available AutoLatch-equipped ramps and tailgates secure automatically on close — no cotter pins or clips to pull, drop, or lose.
Available AutoLatch ramp and tailgate system
Independent ride control
Torsion suspension moves independently at each wheel and eliminates leaf-spring hardware beneath the deck.
3,500 lb EZ Lube axle · Torsion / Torflex
Serviceable where it matters
The bolted jack, standard coupler, and safety cables remain accessible for inspection and service.
3,000 lb top-wind jack · Curt safety cables
Aluminum wheels on radial rubber
Every 6-foot-and-wider open model rides on 15-inch aluminum mod wheels and belted radial tires — no painted steel rims to rust through.
15″ × 6″ aluminum mod wheel · ST205/75R-15
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.
Exact completed build6.5 x 16 Tandem Axle Trailer
6.5x16 tandem — tread plate walls build
A 6.5x16 tandem featuring a 13-inch perimeter rail with aluminum tread plate walls and stake pockets.
1:20 · January 2026
- 13" rail with tread plate walls
- Bi-fold ramp
- Stake pockets
Narrated · captions available in the player
All clips
1 of 4
7,000 lb GVWR minus 1,130 lb base trailer weight equals 5,870 lb estimated base payload.
Payload decreases as options are added.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.

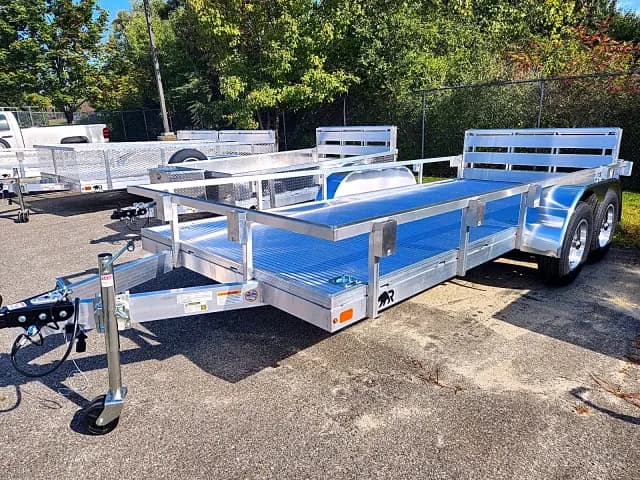

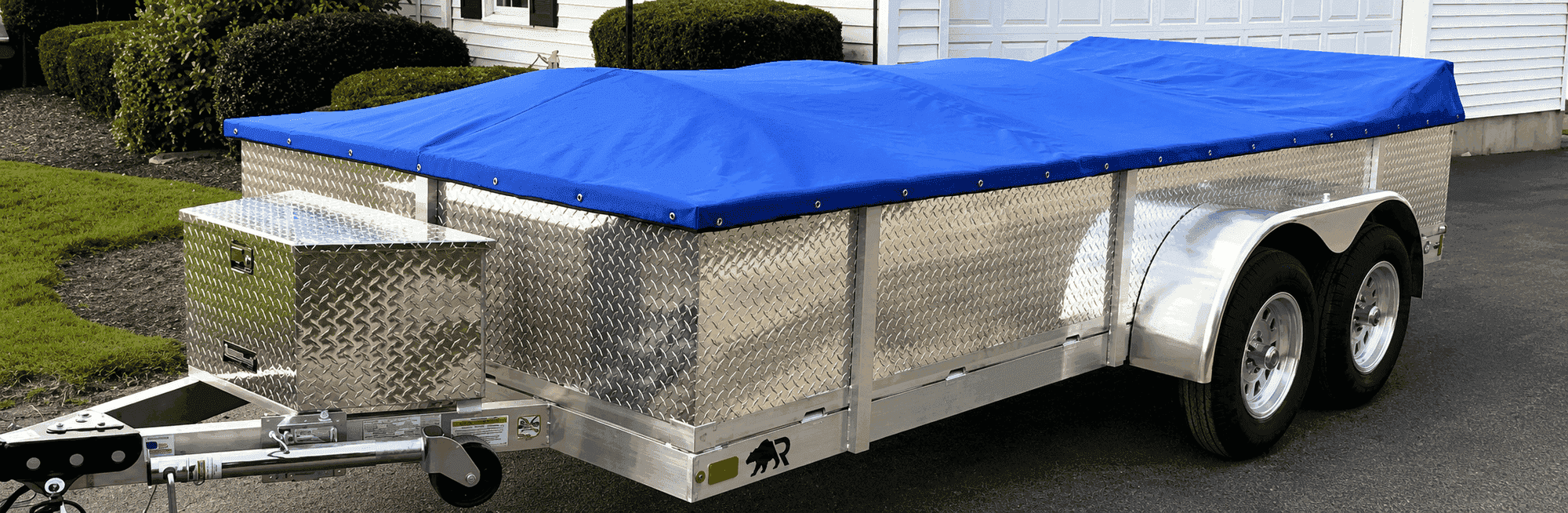

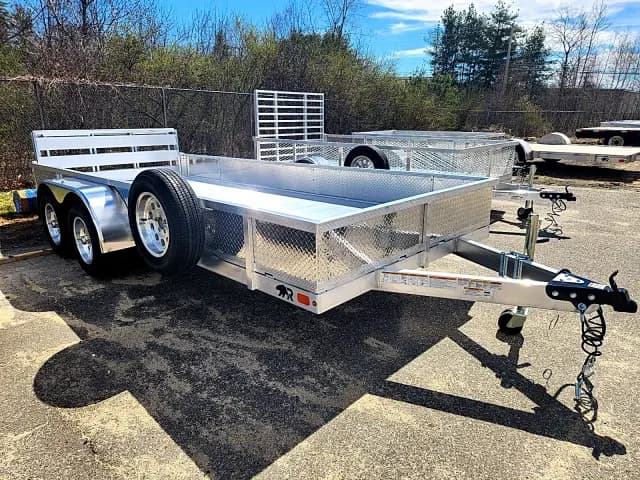

Real builds of this model
6.5' x 16' tandem · Utility · Landscape work
6.5' x 16' Tandem Utility
Trailer & options$12,857Built to order · 25% refundable deposit
6.5' x 16' tandem · Utility
6.5' x 16' Tandem Utility
Trailer & options$10,224Built to order · 25% refundable deposit
6.5' x 16' tandem · Utility
6.5' x 16' Tandem Utility
Trailer & options$9,754Built to order · 25% refundable deposit
Customer experiences
What Rugged owners share.

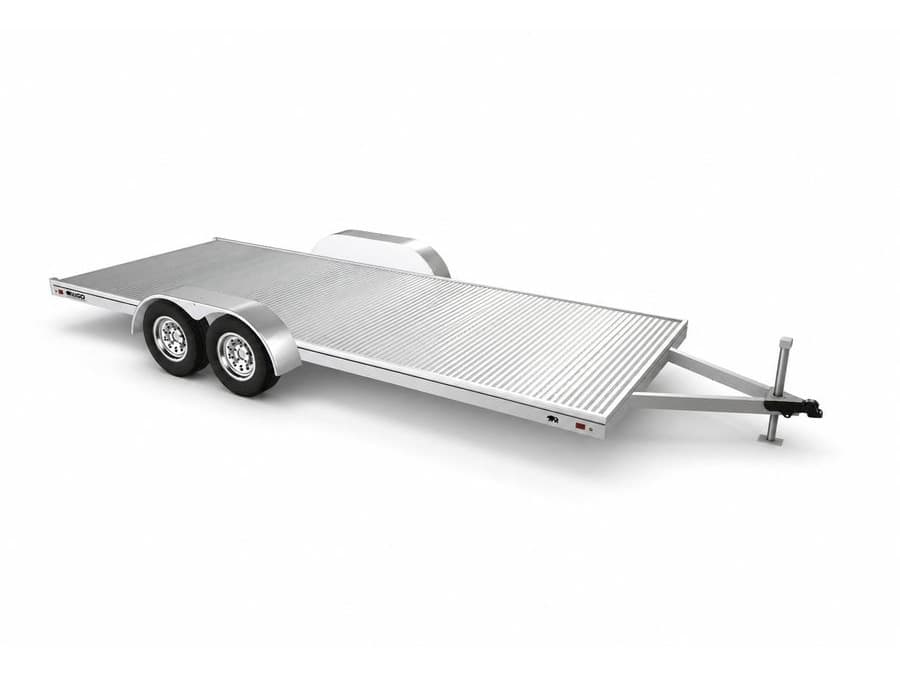

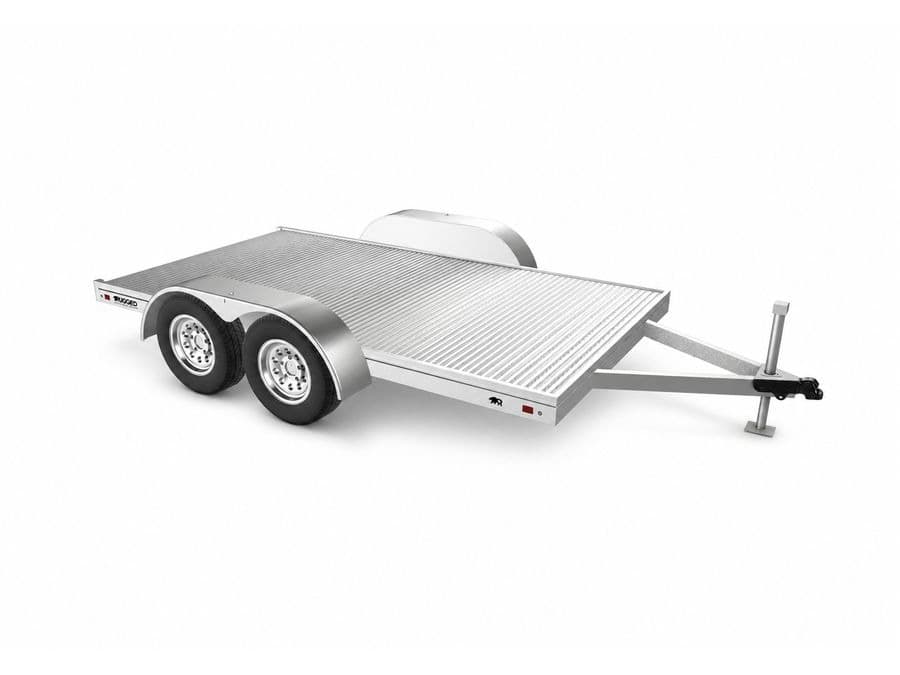

Compare the family
Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 6.5 × 16 Tandem Axle Trailer
Choose a starting configuration, then adjust every available option and see the current price.
