Patrick uses his Rugged trailer in demanding Florida weather. Its light weight, corrosion-resistant aluminum construction, and Rugged's support have made it a dependable part of his landscaping business.
1 / 10
Open rails, Bi-fold ramp
Options may vary.
5 × 8 Open Utility Trailer
The homeowner favorite for dump runs and weekend projects.
- Starting price
- $3,596
Before options and delivery. 5-foot models ship at standard freight.
Typically ready in about 3 weeks after final-order approval.
Deck size 5' x 8'
Check dimensions- Payload (est.)
- 2,519 lb
- GVWR
- 2,990 lb
Popular setup
$5,341Includes these options:
- 13" Perimeter Rail – 5' x 8'
- 48" Bi-Fold Ramp – Autolatch – 5' Wide
- Swivel D-Ring – Bolt-On (×4)
+ 2 more options in this setup
Before delivery. Every option is editable.
Customize this setup25% order deposit, refundable until you approve the final written Build Order. Full terms
Nothing enters production until you approve the final order.
Five-year structural warrantyNot sure what you need? Call 603.324.7402 or text us.
Have a factory specialist recommend the setup
Enter your ZIP — see your delivered price.
Location lookup by Google Maps. Privacy
Tax and registration: handled in your state — we don't collect them. Details
Built in Hudson, NH50 years in aluminum500+ real builds
Remote-buying confidence
See it before ordering.
Choose the proof you need before starting your order.
Capacity and specifications
Check the fit
Dimensions, capacity and equipment for this model, all in one place.
- 11′ 7″
- 79″
- 471 lb
- 2,990 lb
- 2,519 lb
Base trailer specifications. Selected options can change weight, capacity and equipment.
Dimensions & Weight
- Standard Size
- 5' x 8' Single Axle Trailer
- G.A.W.R. (Ea. Axle)
- 3,300 lb
Structure
- Frame
- 3″ x 2″ x 3/16″ Tubular
- Tongue
- 3″ x 2″ x 3/16″ Tubular
- Floor
- Custom Aluminum Extrusion
- Cross-members
- 3″ x 2″ x 3/16″ Tubular
- Fenders
- 9″ x 32″ Smooth Aluminum
- Coupler
- 2″ A-Frame
- Safety Chains
- Curt Single Hook Cable (2 ea)
- Jacks
- 3,000 lb Top Wind (Bolted On)
Running Gear
- Axles
- Single 3,500 lb EZ Lube Axle
- Suspension
- Torsion / Torflex
- Wheel
- 13″ x 5″ Aluminum 5-Star
- Tire
- ST185/80R-13 Belted Radial
- Brakes
- N/A
- Lights
- Optronics L.E.D.
- Electric Plug
- 4-Way Flat
- Finish
- Natural Aluminum

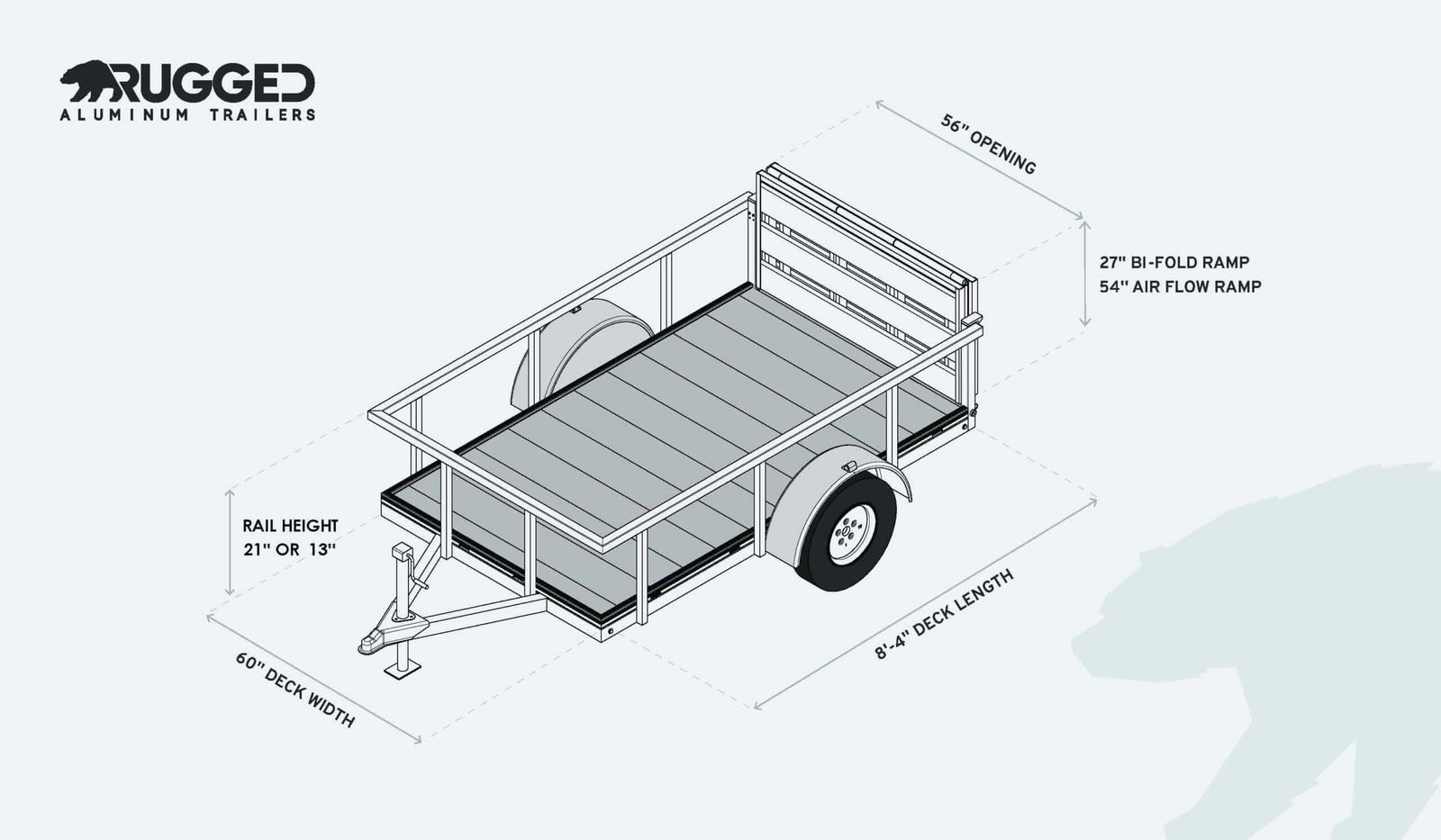

Factory dimension drawing
Make it yours
Optional equipment for this model. Open a category to explore, then use Build & Price to check prices and compatible combinations.
Side rails & containment
- Front Bumper Rail – 5' Wide
- Front Stone Guard – 5' Wide
- 13" Perimeter Rail – 5' x 8'
- 21" Perimeter Rail – 5' x 8'
- 13" Perimeter Rail – Aluminum Tread Plate – 5' x 8'
- 21" Perimeter Rail – Aluminum Tread Plate – 5' x 8'
- 13" Perimeter Rail – Aluminum Mesh – 5' x 8'
- 21" Perimeter Rail – Aluminum Mesh – 5' x 8'
Ramp & rear loading
- 48" Air Flow Ramp – Autolatch – 5' Wide
- 48" Bi-Fold Ramp – Autolatch – 5' Wide
- StowAway ramps — AutoLatch
- Tailgate for 5' Wide Trailer
Tie-downs & cargo control
- Swivel D-Ring – Bolt-On
- Aluminum L-Track Strips – Tie-Down System
- Stake Pockets – Welded
- Tie-Down Cutouts – Frame Extrusion
- Top Rail Track & Crossbar – 5' Wide
- Rub Rail with Stake Pocket System - 8'
Add-ons & upgrades
- Tarp Kit – Custom Housing – 5' Wide
- Aluminum Tongue Box
- Side-Mount Tongue Jack Upgrade
- 13" Aluminum Spare – 5-Star with Mount
- Coupler Lock - SS
- Quick-release fenders — removable & replaceable
- Trailer Deck Lighting Package
Construction
Engineering highlights
A closer look at the frame, deck, and available equipment.
Aluminum frame
A tubular aluminum frame supports the deck and rated running gear.
Weather-ready deck
Interlocking aluminum planks create a weather-resistant loading surface.
AutoLatch option
Available AutoLatch-equipped ramps and tailgates latch automatically when closed.
Independent suspension
Torsion suspension moves independently at each wheel, without leaf-spring hardware.
Accessible hardware
The jack, coupler, and safety cables stay accessible for inspection and service.
13-inch aluminum wheels
The 5-foot series uses 13-inch aluminum five-star wheels with radial tires.
Design notes & full-size photos
Structure without unnecessary weight
The tubular aluminum frame carries the deck and rated running gear without a painted steel chassis.
4 × 2 × 3/16-inch tubular aluminum
A deck made for the weather
Interlocking aluminum deck extrusions provide a weather-resistant loading surface without wood deck boards.
Custom aluminum extrusion
Latched the moment it closes
Available AutoLatch-equipped ramps and tailgates secure automatically on close — no cotter pins or clips to pull, drop, or lose.
Available AutoLatch ramp and tailgate system
Independent ride control
Torsion suspension moves independently at each wheel and eliminates leaf-spring hardware beneath the deck.
3,500 lb EZ Lube axle · Torsion / Torflex
Serviceable where it matters
The bolted jack, standard coupler, and safety cables remain accessible for inspection and service.
3,000 lb top-wind jack · Curt safety cables

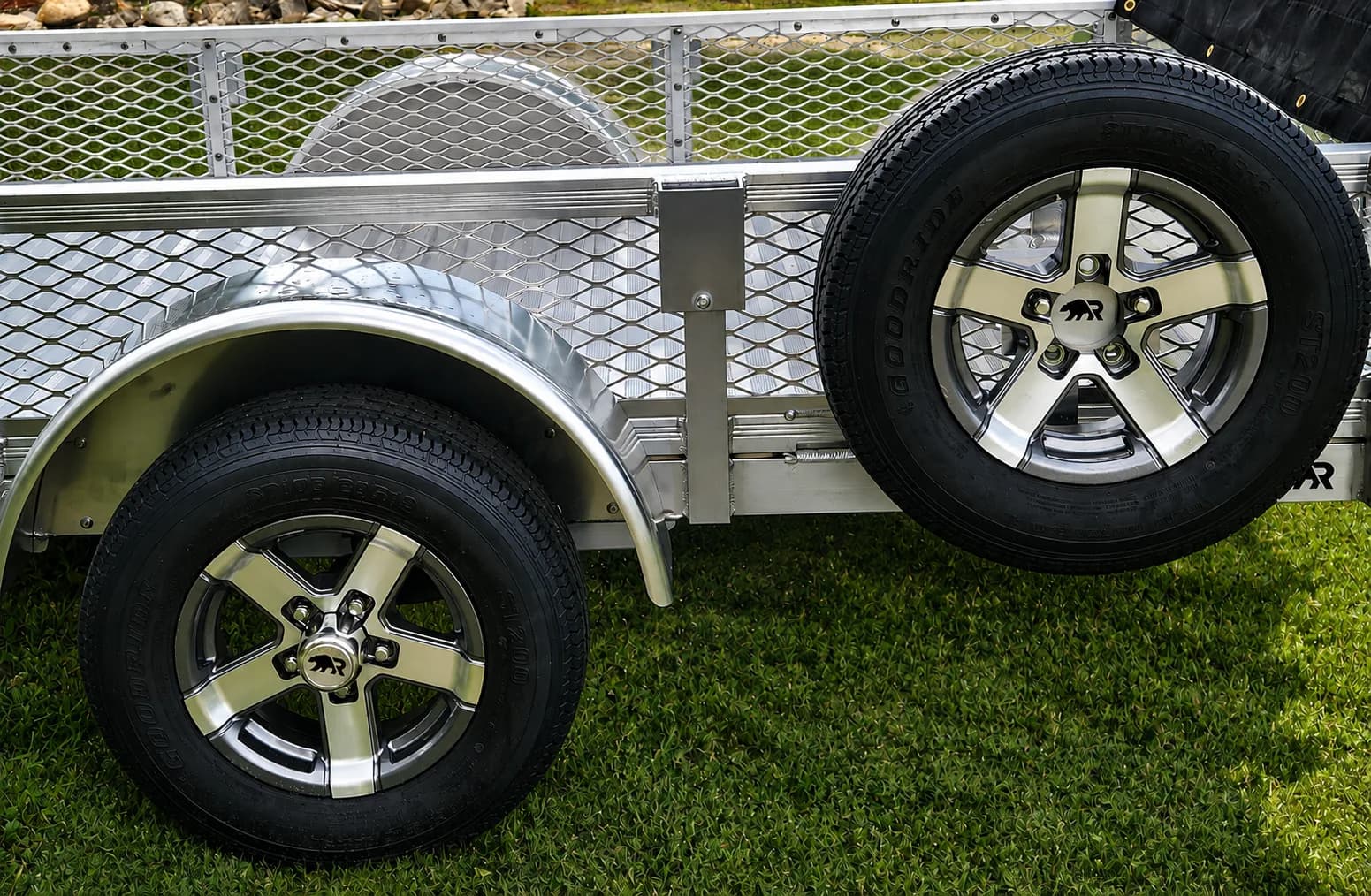

Running gear scaled to the trailer
The 5-foot series rides on 13-inch aluminum five-star wheels with ST185/80R-13 radial tires.
13″ × 5″ aluminum five-star · ST185/80R-13
Real footage
Real Rugged walkarounds
Actual customer builds and factory footage — filmed on the production floor, not staged. Every clip is labeled with exactly what you're seeing.
Exact completed build5 x 8 Open Utility Trailer
5x8 utility — walk-around
Compact all-aluminum 5x8 utility build with 13-inch wheels and stowaway ramps.
0:59 · April 2026
- 13" wheels
- Stowaway ramps
- All-aluminum frame and deck
Narrated · captions available in the player
All clips
1 of 4
2,990 lb GVWR minus 471 lb base trailer weight equals 2,519 lb estimated base payload.
Payload decreases as options are added.
Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.
Fit and towing: Payload shown is trailer payload, not your tow vehicle's capacity. Verify your vehicle, hitch, tongue-weight, and loaded-trailer ratings before ordering.
Will your vehicle tow this trailer?
Enter what you know about your tow vehicle for plain-language guidance. This is separate from the trailer's own cargo payload, and it is not a safety certification.
Real builds of this model
5' x 8' · Utility · Landscape work
5' x 8' Single axle Utility
Trailer & options$7,368Built to order · 25% refundable deposit
5' x 8' · Utility · Landscape work
5' x 8' Single axle Utility
Trailer & options$6,607Built to order · 25% refundable deposit
5' x 8' · Utility · Landscape work
5' x 8' Single axle Utility
Trailer & options$7,028Built to order · 25% refundable deposit
Customer experiences
What Rugged owners share.
Compare the family

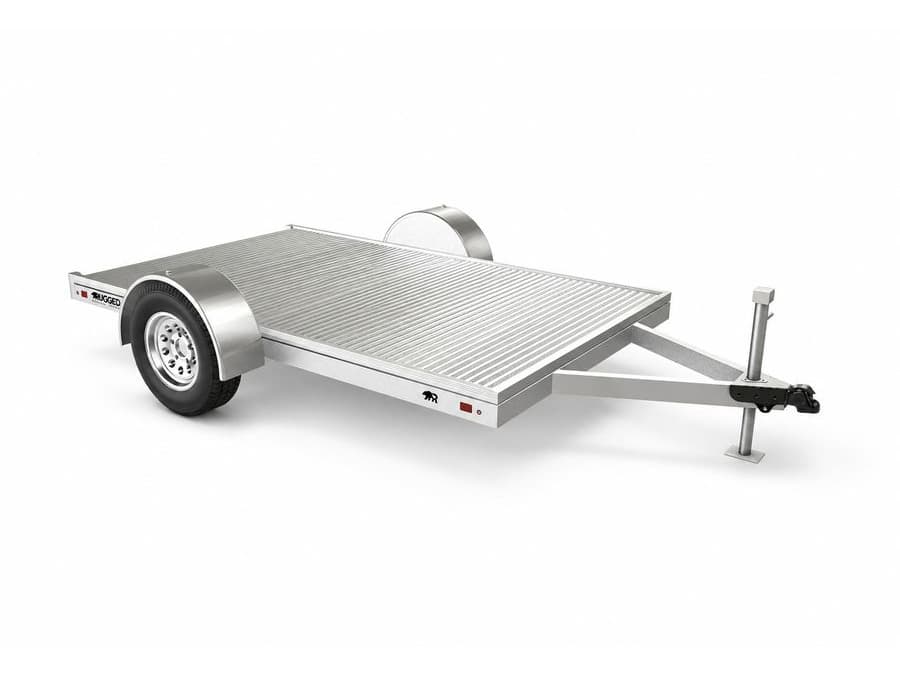

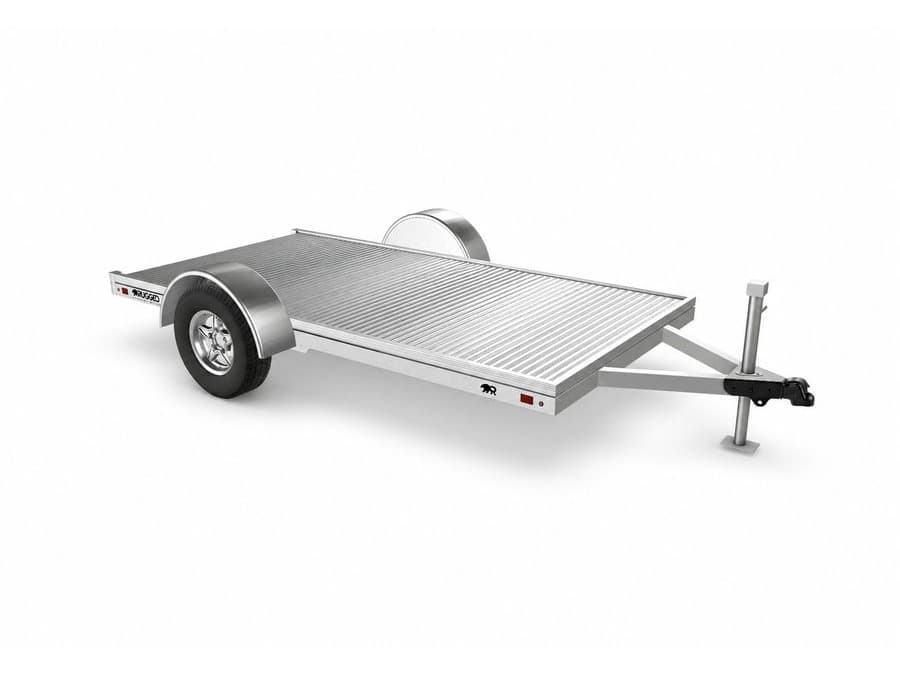

Other sizes
Compare the major differences before opening another model.
Questions
Frequently asked questions
Ready to build
Build your 5 × 8 Open Utility Trailer
Choose a starting configuration, then adjust every available option and see the current price.
