Real Rugged build: 6.5' x 20' Tandem — Front rail only

Tilt · 6.5' x 20' Tandem · Low-clearance loading

6.5' x 20' Tandem — Front rail only

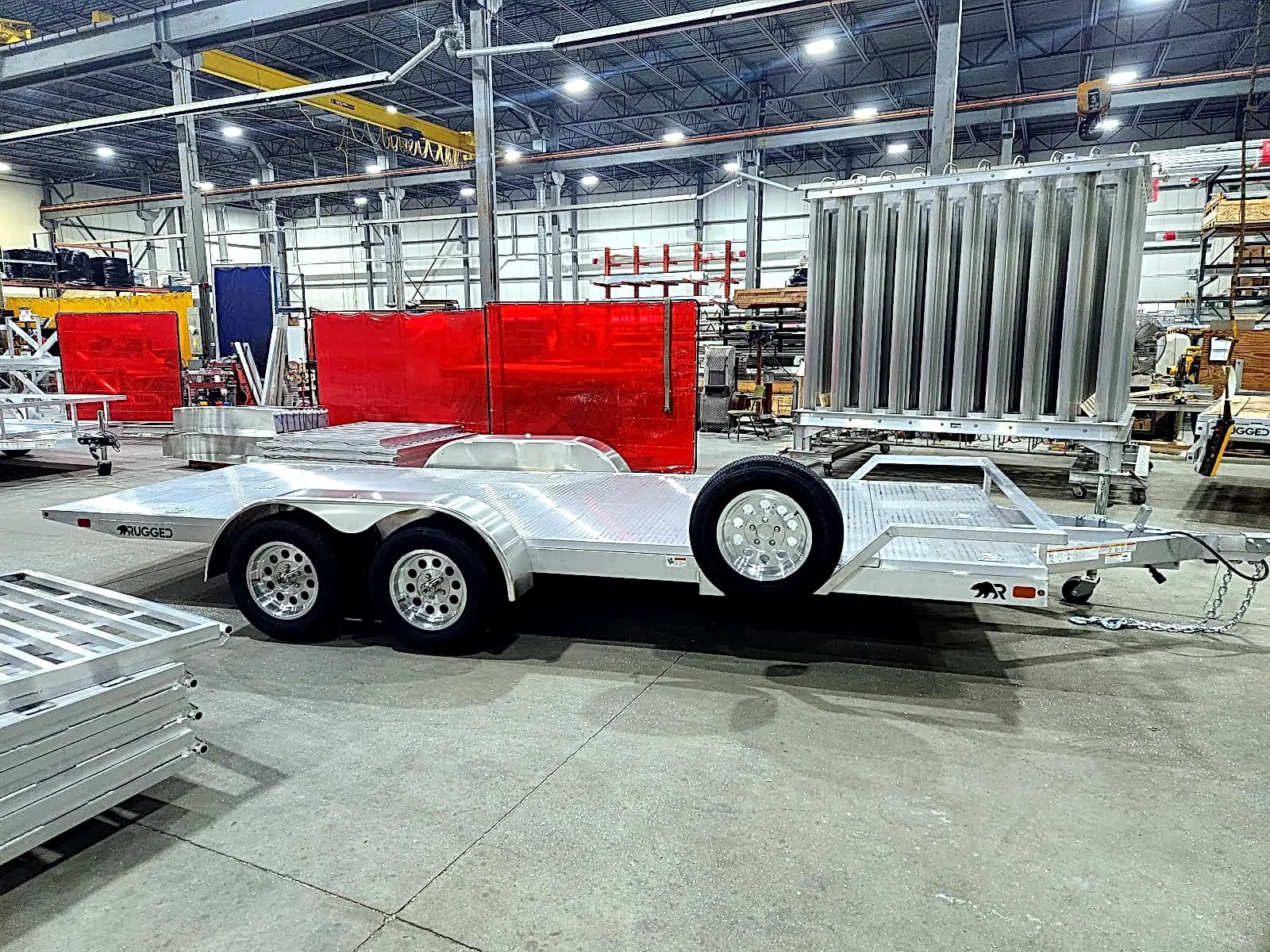

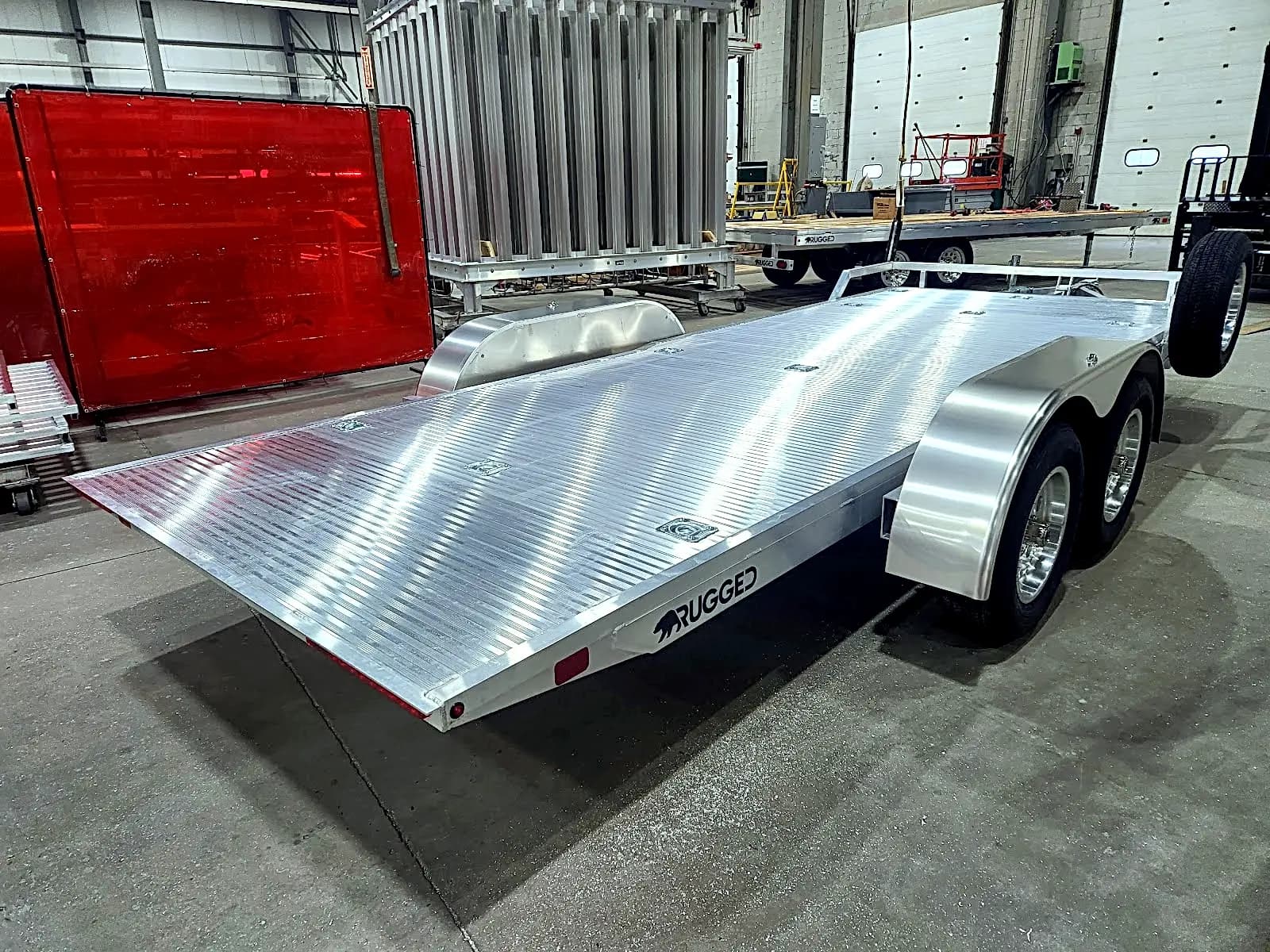

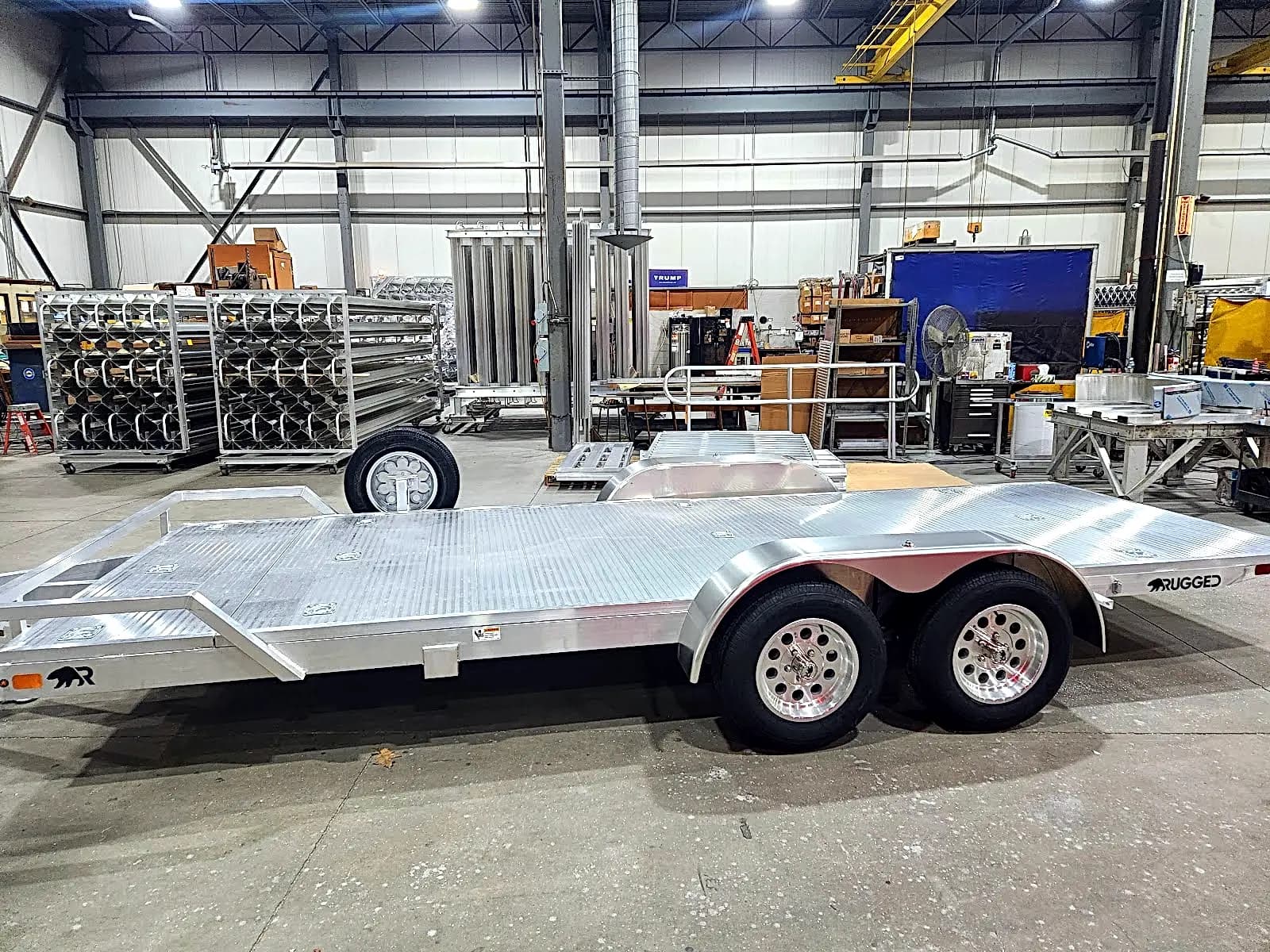

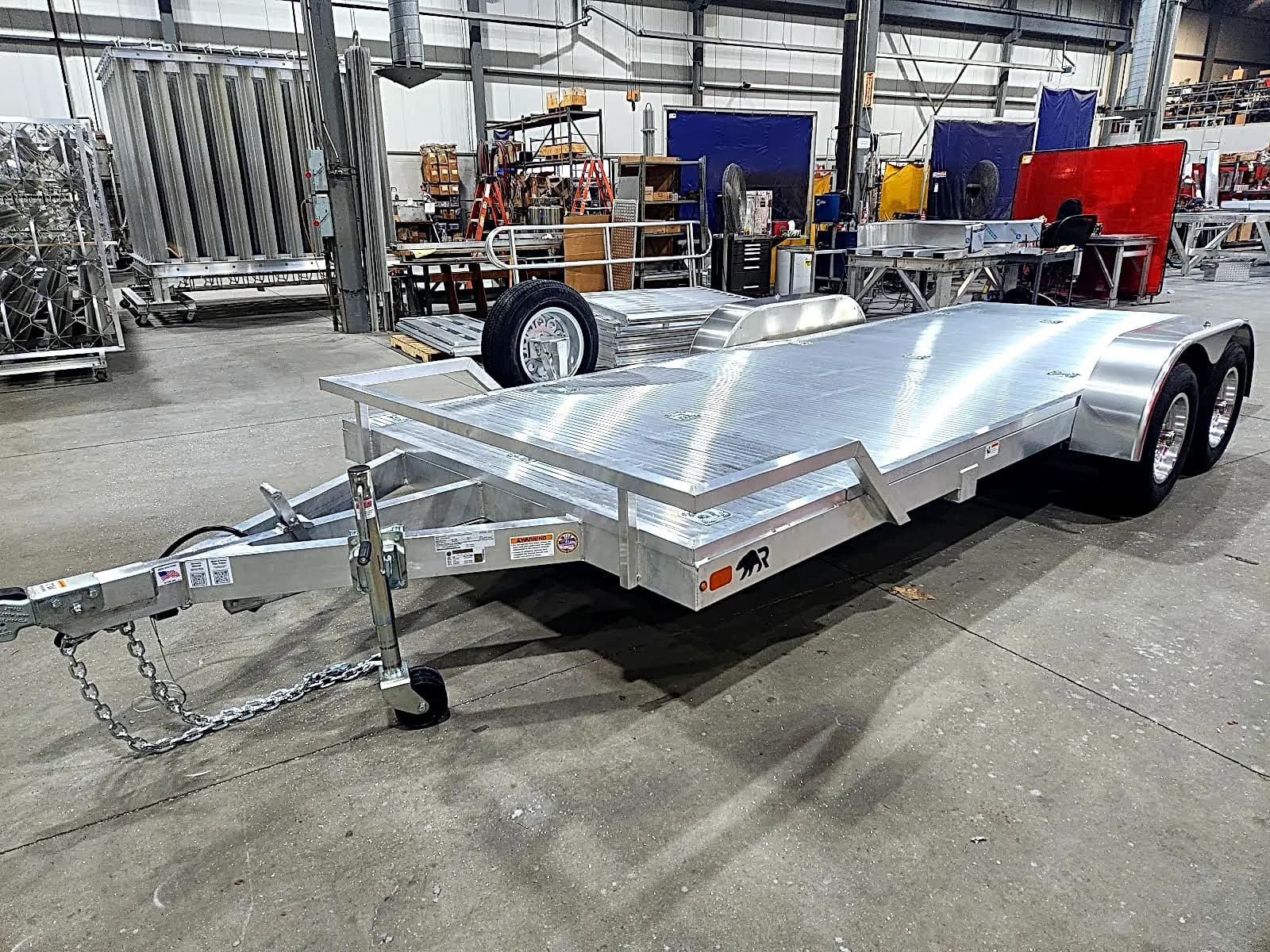

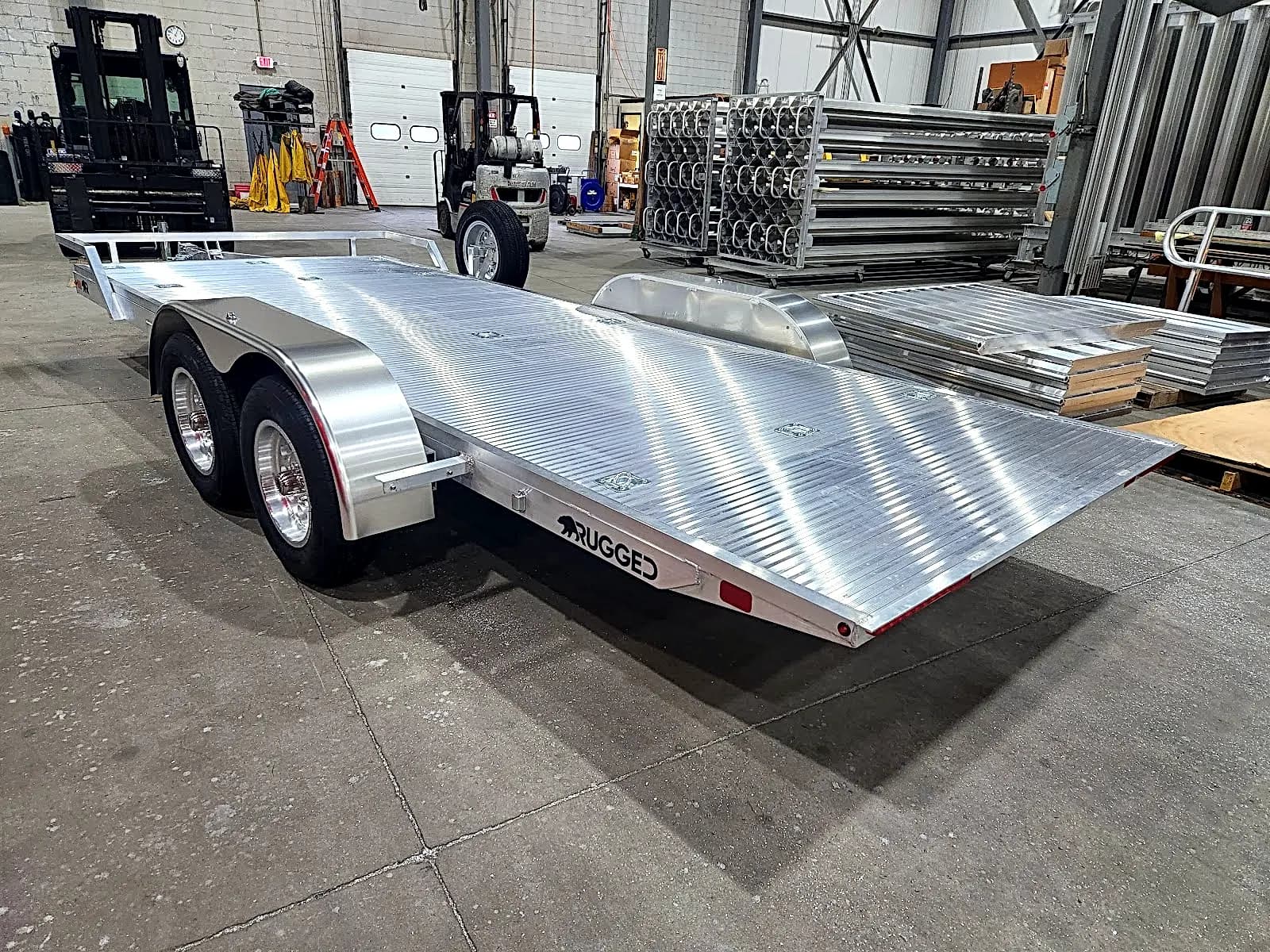

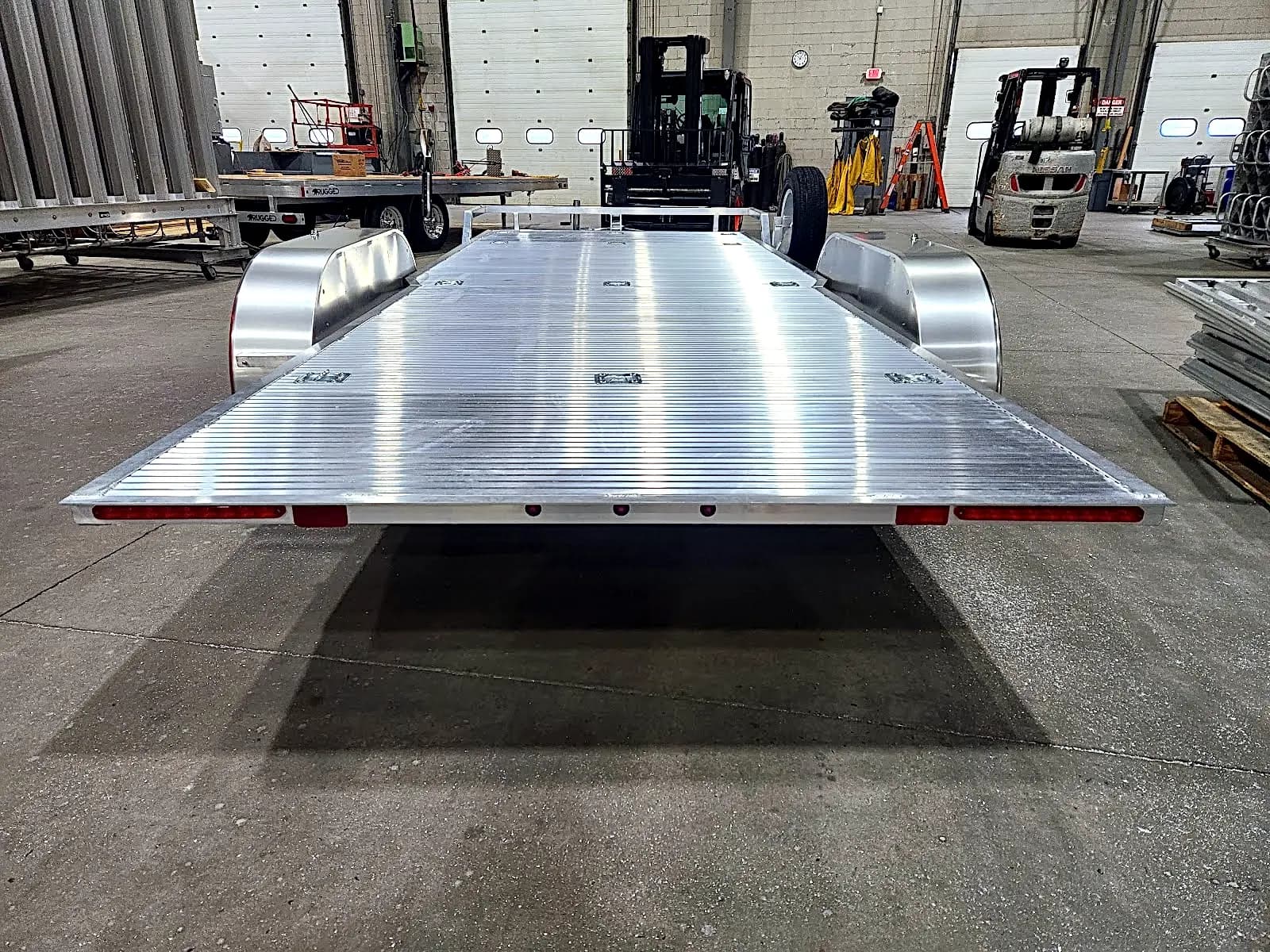

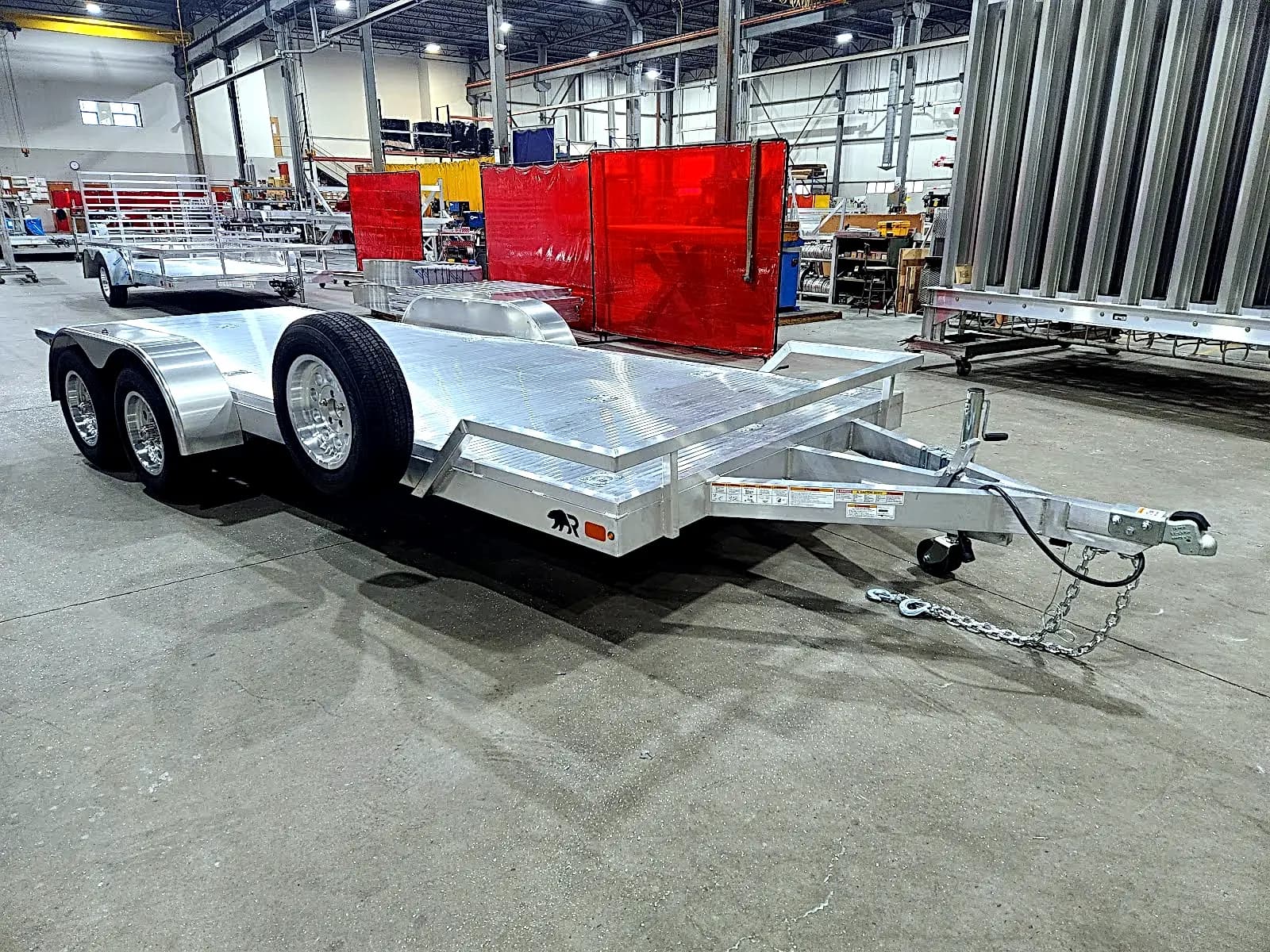

A 6.5' x 20' tandem tilt-deck trailer, set up with a mounted 15-inch spare. Photographed here in New Hampshire before it shipped.

Photographed at our New Hampshire factory.

Completed build archive: December 2024
Built for: Low-clearance loading work
Current base payload: 5,350 lb
Photo proof: 14 real photos

Why this configuration works

This completed build combines 15" Aluminum Spare – Mod with Mount, D-Rings – HD Bolt-On, Front Bumper Rail – 6.5' Wide. Use it as a proven starting point, then change any option in Build & Price.

View the 6.5' x 20' model guide

What's on this trailer

6.5' x 20' tandem tilt base$10,789

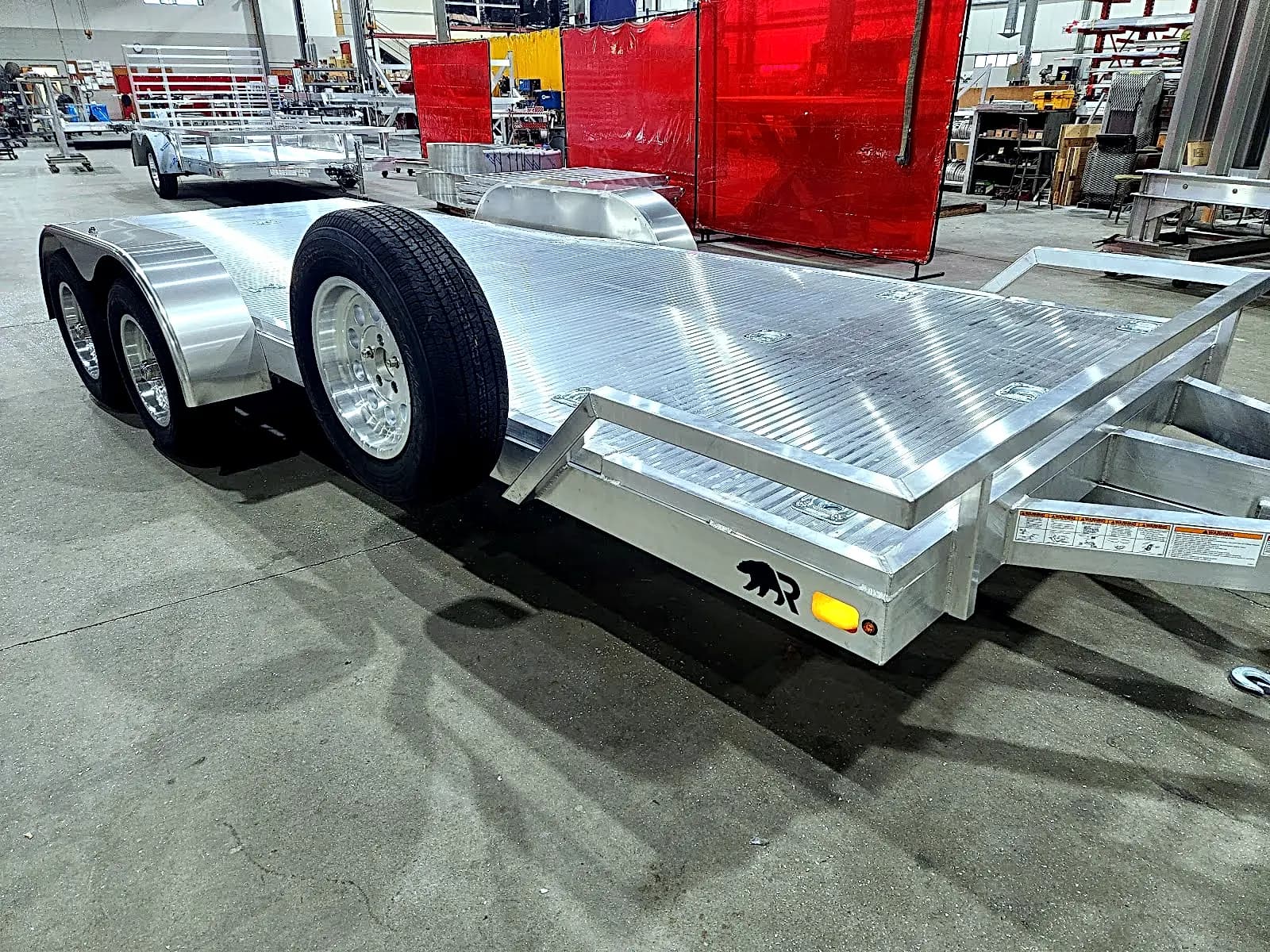

15" Aluminum Mod Spare & Mount+ $359

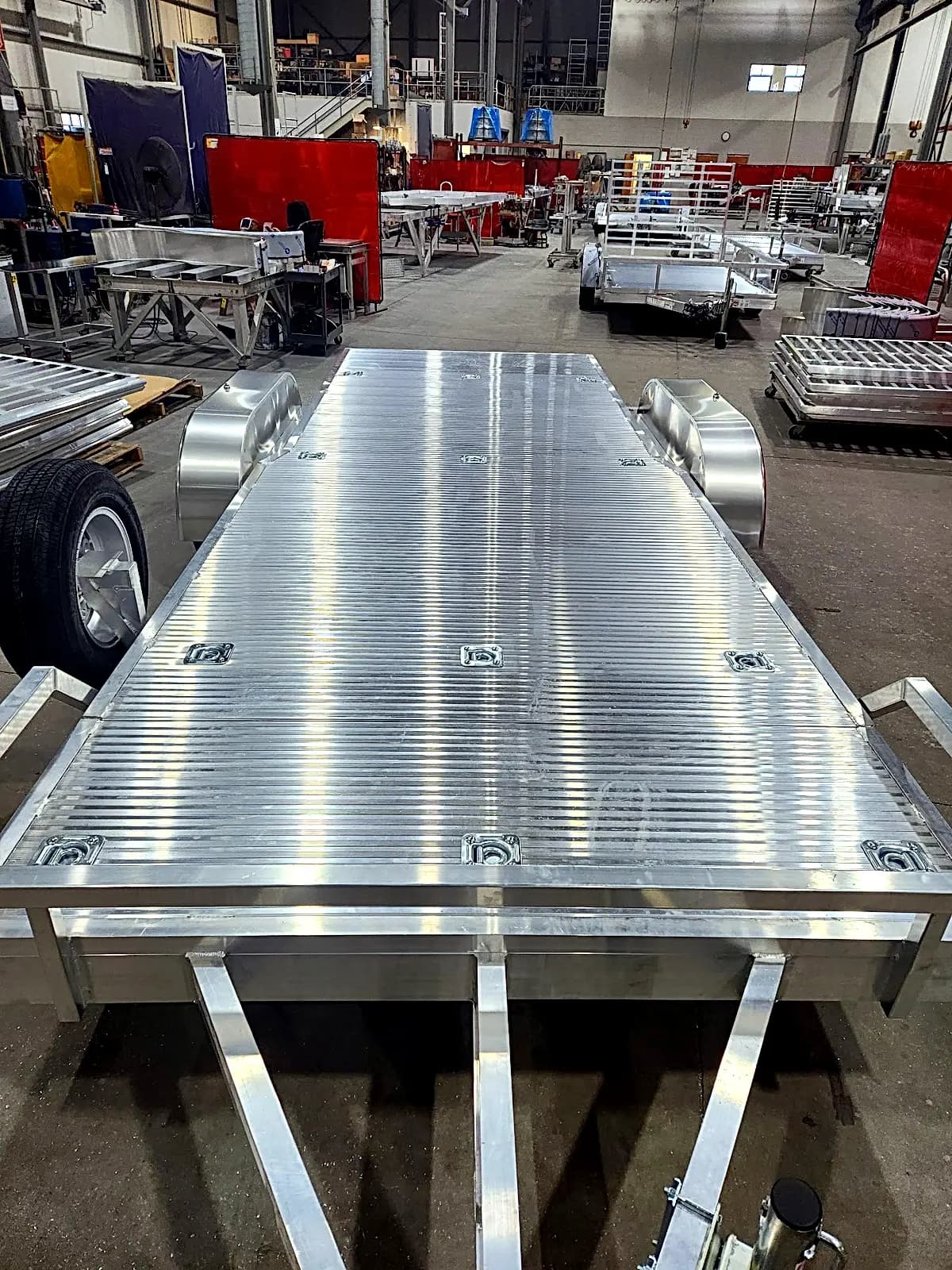

Flush Mount D-Ring × 9+ $270

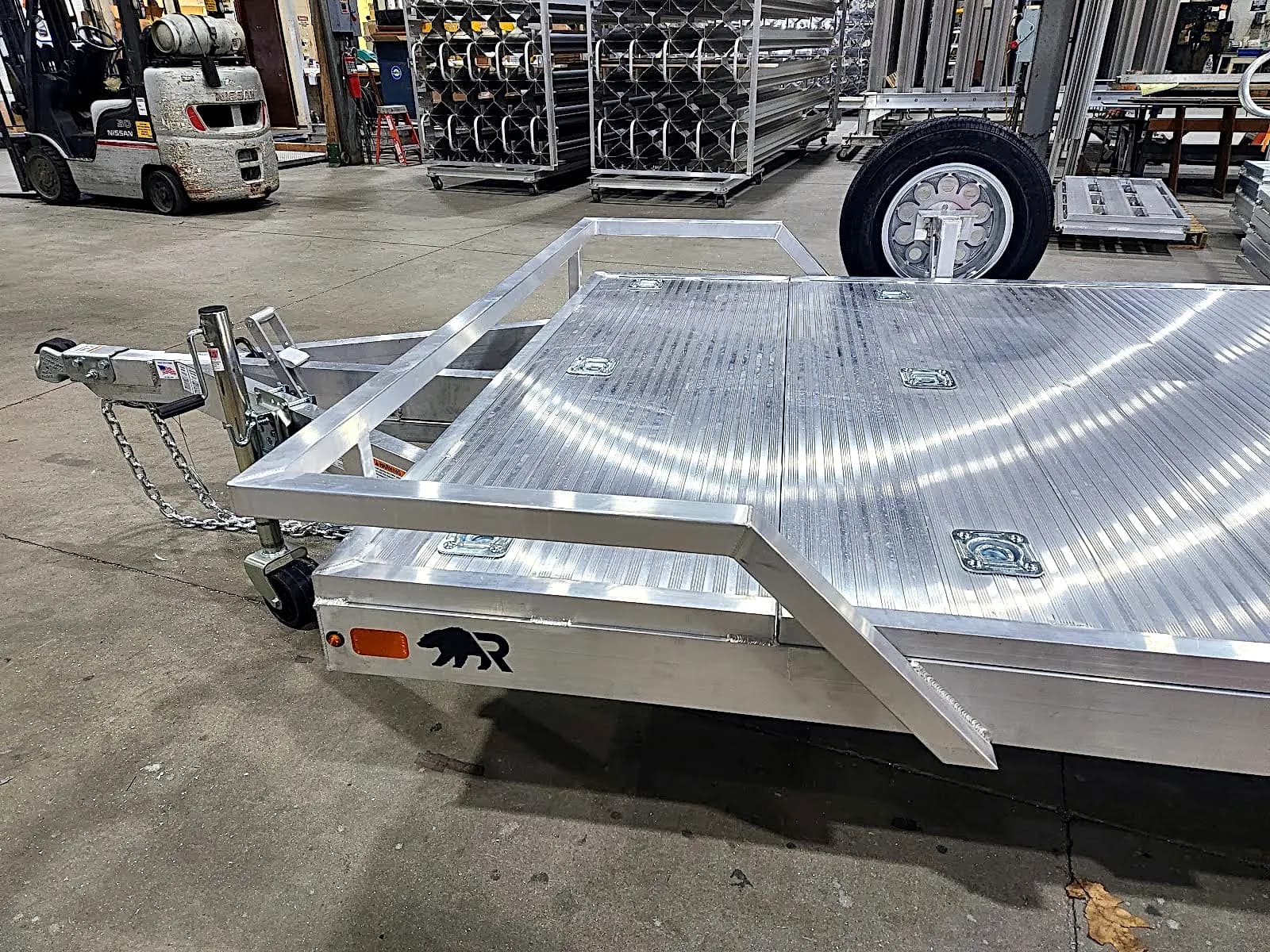

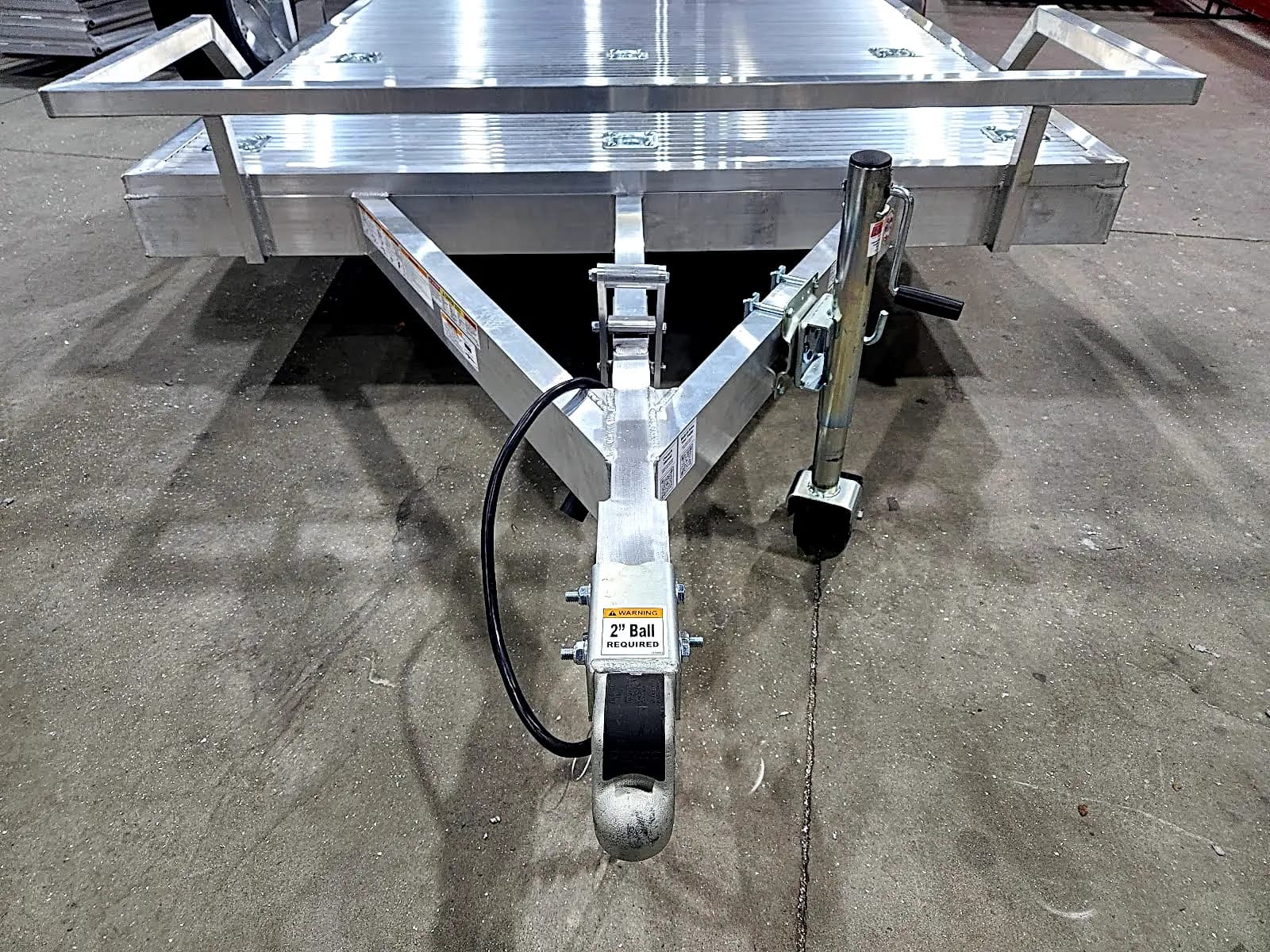

Low Front Rail for 6.5' Wide Trailer+ $229

D-Rings – HD Bolt-On
Front Bumper Rail – 6.5' Wide

This is a documented previous build. Some equipment no longer maps exactly to today's catalog, so we will not present a partial recreation price as exact.

Review available models

Built to order. Current lead time: typically 3 weeks.

4.9Rated on Google

6.5 x 20 Tandem Axle Tilt Trailer · Model R4004

Full specifications

Printable spec sheet

GVWR: 7,000 lb
Estimated payload: 5,350 lb
Estimated empty weight: 1,650 lb
Rating per axle: 3,500 lb

Weight and payload estimates: Published trailer weight reflects the standard base configuration. Options and manufacturing variation affect final weight and available payload. Your completed trailer is weighed at the factory; its certified final weight and payload are provided after manufacturing.

Dimensions & Weight

Standard Size	6.5'x 20' Tandem Axle Tilt Trailer
Trailer Weight	1,650 lb
GVWR Rating	7,000 lb
Trailer Payload	5,350 lb
G.A.W.R. (Ea. Axle)	3,500 lb

Structure

Frame	4″ x 2″ x 3/16″ Tubular
Tongue	5″ x 2″ x 3/16″ Tubular

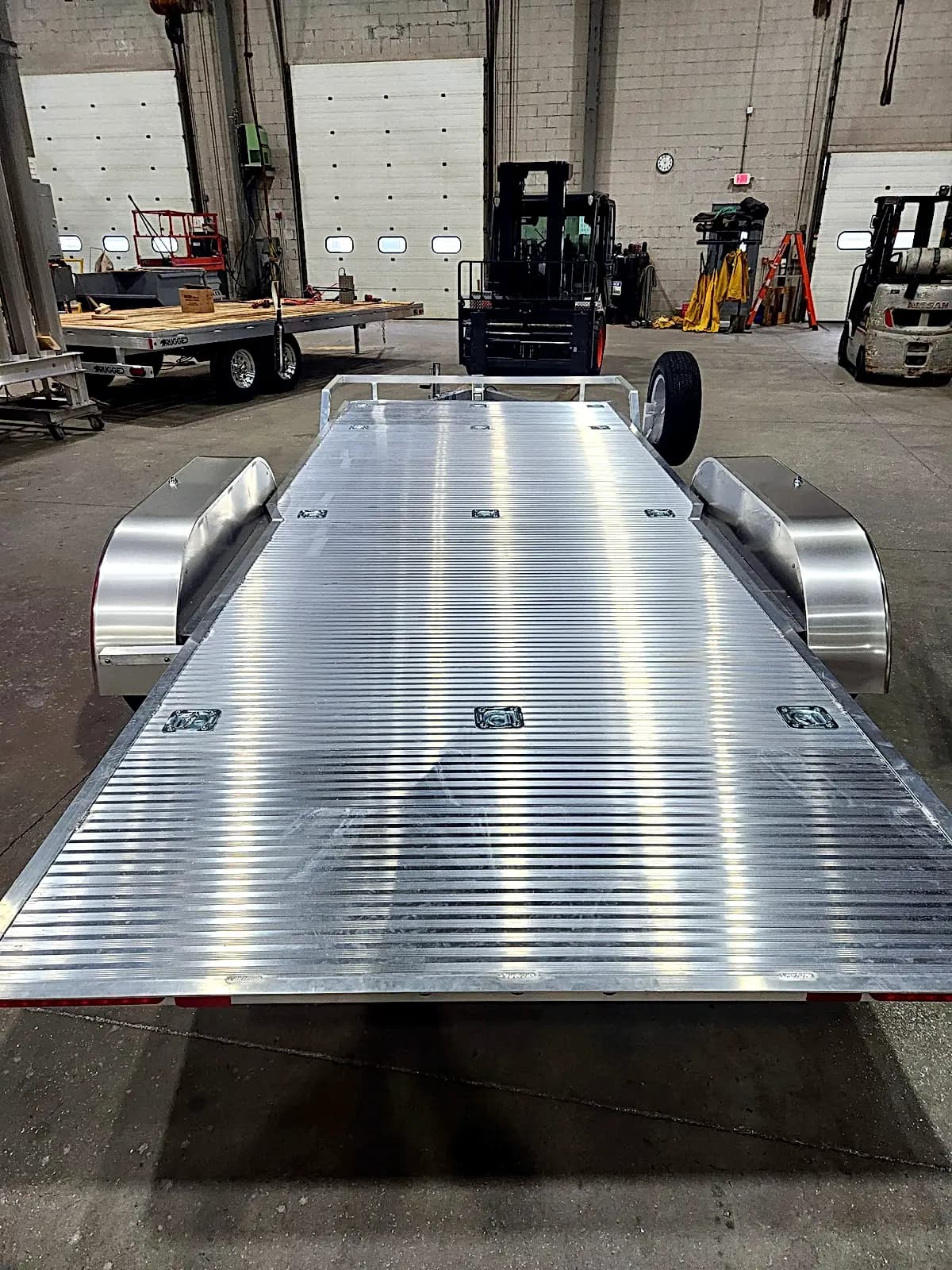

Floor	Custom Aluminum Extrusion
Cross-members	4″ x 2″ x 3/16″ Tubular
Fenders	10.75″ x 68″ Smooth Aluminum

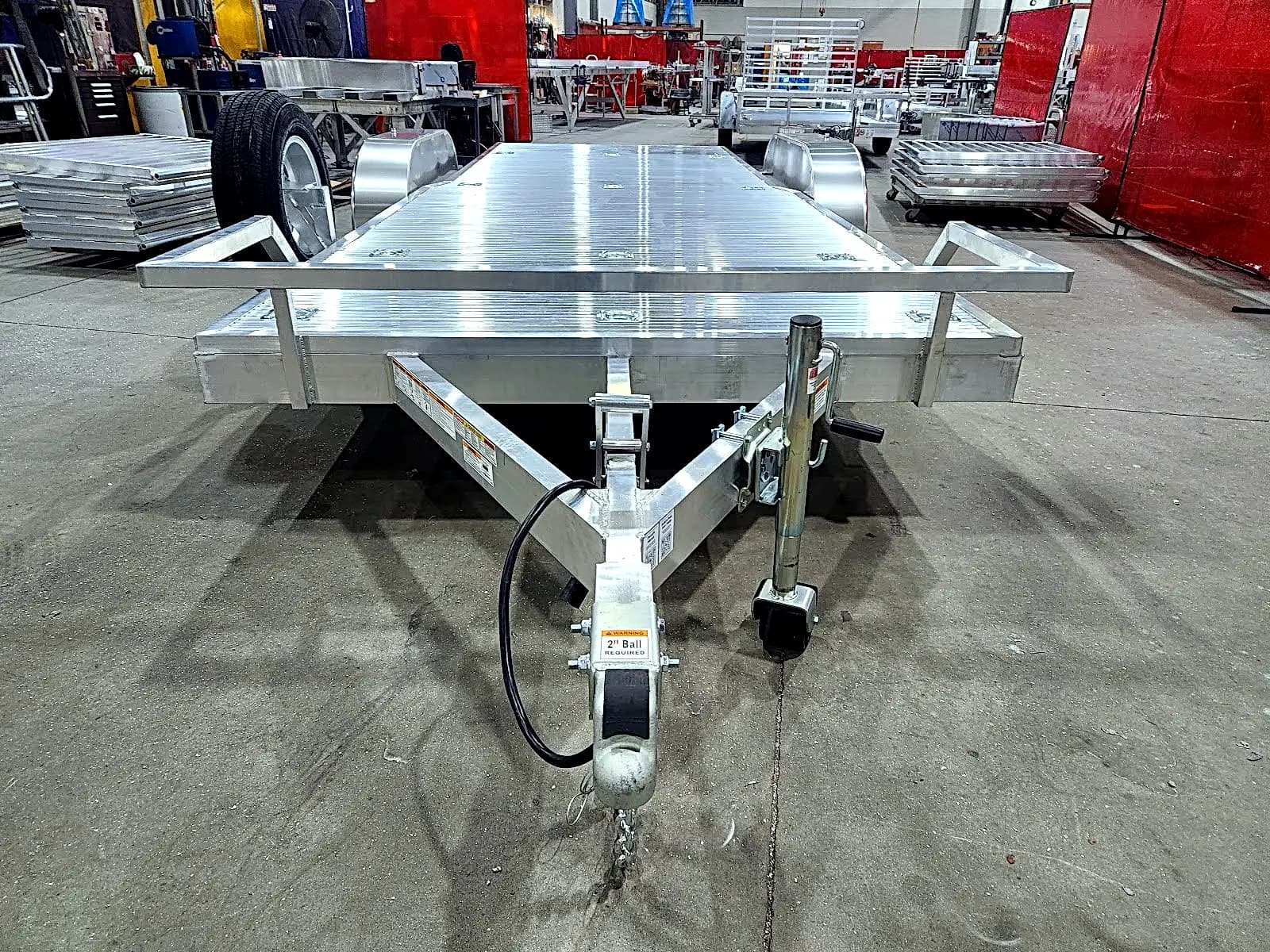

Coupler	2″ A-Frame
Safety Chains	Curt Single Hook Cable (2 ea)
Jacks	3,000 lb Top Wind (Bolted On)

Running Gear

Axles	Tandem 3,500 lb EZ Lube Axle
Suspension	Torsion / Torflex
Wheel	15″ x 6″ Aluminum Mod Wheel
Tire	ST205/75R-15 Belted Radial
Brakes	4 Wheel Electric
Lights	Optronics L.E.D.
Electric Plug	7-Way Round
Finish	Natural Aluminum

Standard equipment

Custom Aluminum Extrusion floor
4″ x 2″ x 3/16″ Tubular aluminum frame
2″ A-Frame coupler
3,000 lb Top Wind (Bolted On) jack
Torsion / Torflex suspension
15″ x 6″ Aluminum Mod Wheel
ST205/75R-15 Belted Radial tires
Optronics L.E.D. lighting
7-Way Round electrical connector
Natural Aluminum finish

Specifications are for the 6.5 x 20 Tandem Axle Tilt Trailer base model and are subject to confirmation on your build. Options shown on this trailer may change some figures.

See the full 6.5 x 20 Tandem Axle Tilt Trailer product page
